LMC-101-12″E – Single Arbor Multiple Rip Saw

Extra Powerful Feeding Effect!

High Straighness Accuracy!

An efficient multiple rip saw that makes heavy ripping a simple operation.

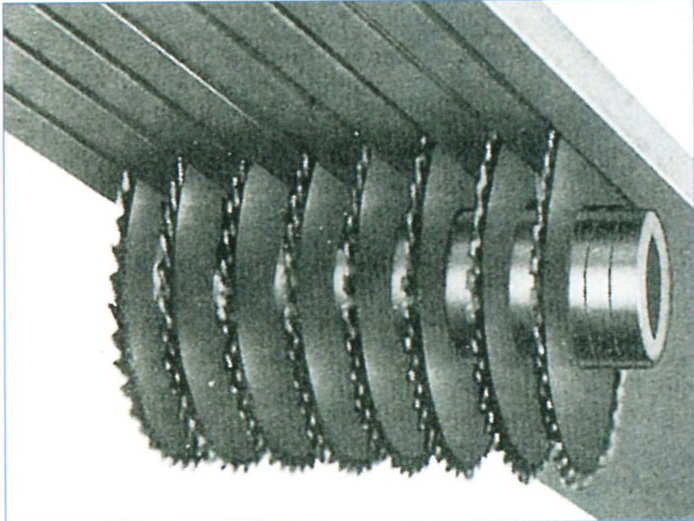

Sheng Yuan SYC – 101 series Multiple Rip Saw is a single saw arbor configuration and performs bottom cutting. Featuring extra powerful feeding effect, the SYC – 101 Series will exhibit higher ripping efficiency and productivity.

Side Guard

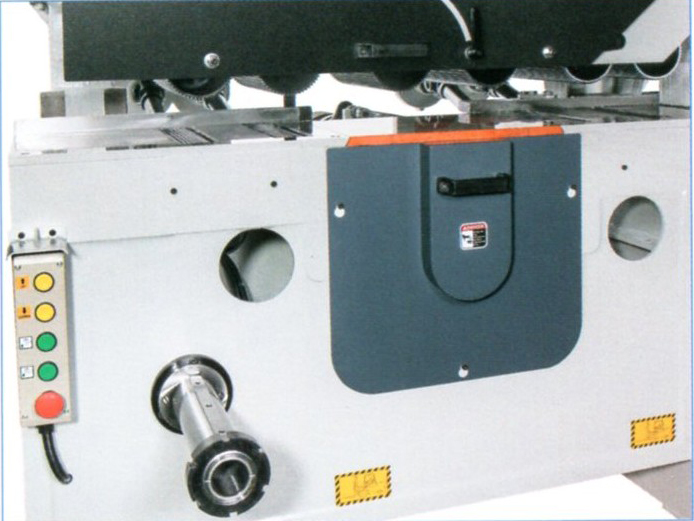

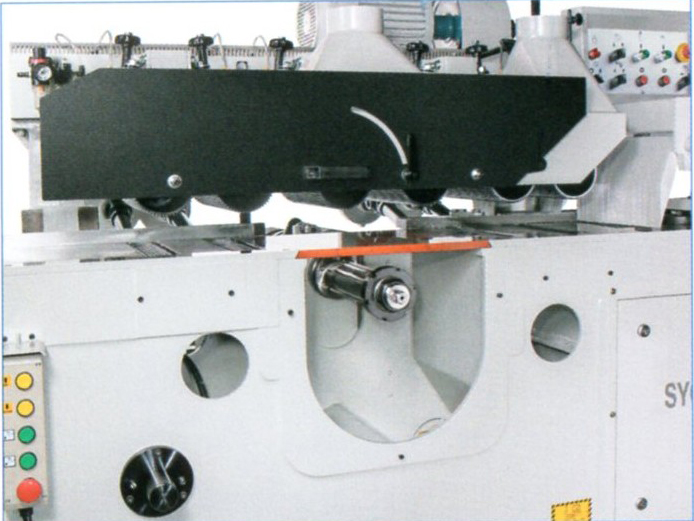

A side guard is equipped for additional safety protection during cutting.

Convenient to replace saw blade (optional)

The machine is equipped with an additional shaft, enabling saw blade to be replaced conveniently and efficiently.

Variable Feed Speed

Infinitely variable feed speed is achieved though a variable pulley device providing a speed range of 16M/min.

Gearbox and cardan shaft drive

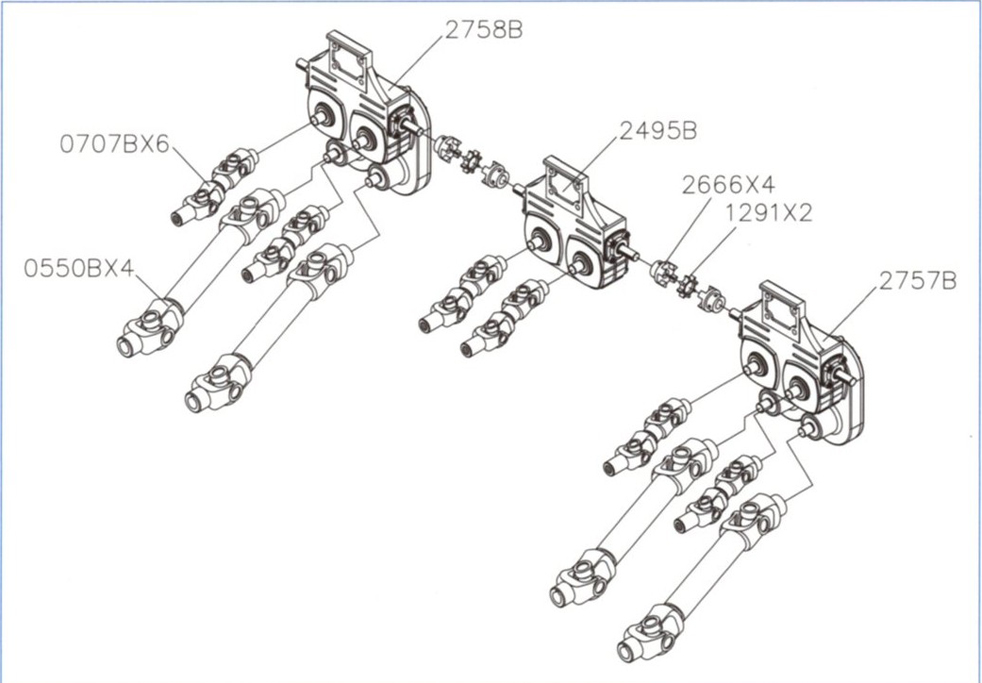

The feed rollers are driven by a combination of cardan shaft and heavy duty gearboxes, ensuring no loss of power transmission and extra powerful and accurate feeding performance.

STANDARD FEATURES

Chrome Hardened Feeding Table. Throughout 0.3 mm hard chrome plated on the feeding table surface result in extended service life of the table.
1st stage pressure setting of feed roller. Pneumatically loaded roller allows for compensation for large variation in wokrpiece thickness. The maximum air pressure setting is 6 bar.
One meter infeed table. Adjustment range of edge- jointing fence is 10 mm.

Power driven rollers. power driven upper rollers and 4 units of bottom rollers together with power driven rollers on the feed table.
Cardan shaft transmission. Both upper and lower feed rollers are driven by Cardan shaft without the use of chain transmission, which ensureextra smooth feeding effect, more robust, minimum maintenance, longer service life and increased accuracy.
Documentation. Maintenance manual, operation manual, electrical diagrams and parts list.

Spesifikasi Multiple Rip Saw LMC - 101-12"E

MODEL	SYC-101-12"	SYC-101-12"E	SYC-101-14"	SYC-101-20"
Range of Working width	15-300 mm	15-300 mm	15-360 mm	15-500 mm
Range of Working Thickness	20-105 mm	20-77,5 mm	20-105 mm	20-105 mm
Min. Working Length	250 mm	230 mm	250 mm	250 mm
Min. Working Length	with 6 small upper rollers	with 6 small upper rollers	with 6 small upper rollers	with 6 small upper rollers
Saw Blade Diameter	Ø 355 mm	Ø 305 mm	Ø 355 mm	Ø 355 mm
Saw Arbor Diameter	Ø 50 mm	Ø 50 mm	Ø 50 mm	Ø 50 mm
Number of Spindle	1	1	1	1
Saw Arbor Speed	4000 rpm	4000 rpm	4000 rpm	4000 rpm
Feed Speed (Infinitely Variable)	6-16 M/min	6-36 M/min	6-16 M/min	6-16 M/min
Saw Arbor Motor	30 HP (50 HP optional)	30 HP (50 HP optional)	30 HP (50 HP optional)	30 HP (50 HP optional)
Feed Roller Drive Motor	3 HP x 1	5 HP x 1	3 HP x 1	3 HP x 1
Elevation motor	1 HP x 1	1 HP x 1	1 HP x 1	1 HP x 1
