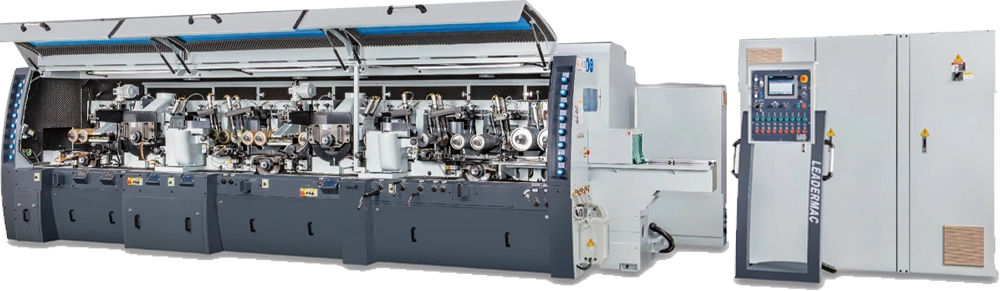

Maximac Series – 4 Side Moulder

Maximac Series – 4-Side Moulder

Leadermac’s wide variety of 4-sided moulders have all the very latest in technology for increased productivity, product quality & reliability. These heavy duty moulders are designed to provide fast cutting speeds and the highest quality accuracy. The machines are precision manufactured by our highly skilled technicians – plus Leadermac’s fast service, training, and moulding know-how is offered with each moulder. No matter what your moulding jobs call for, there is a Leadermac 4 sided moulder that’s right for you

For All Your Woodworking Applications

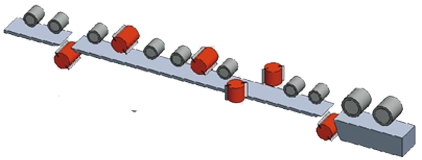

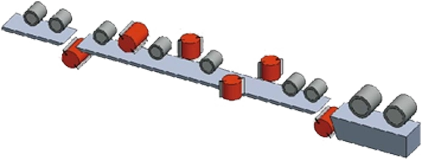

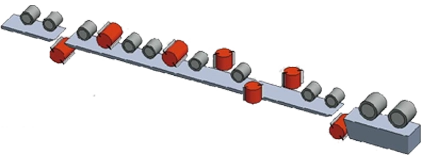

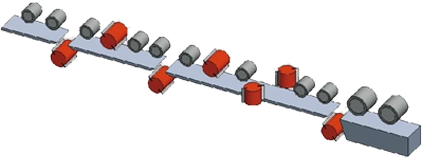

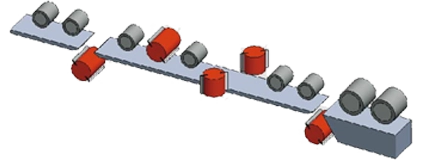

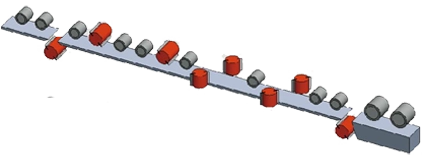

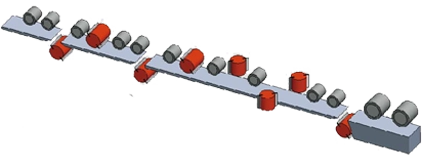

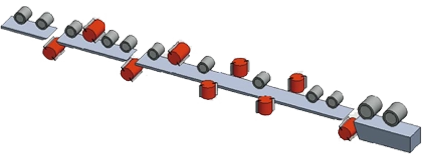

Choice of Machine Models – From Maximac LMC-230M (2-Spindles) to LMC-1130M (11-Spindles)

Outstanding Features:

• Moulders with CE certification
• One-piece, extra heavy cast iron or steel machine frame is specially heat treated for maximum stability and rigidity by standard configuration

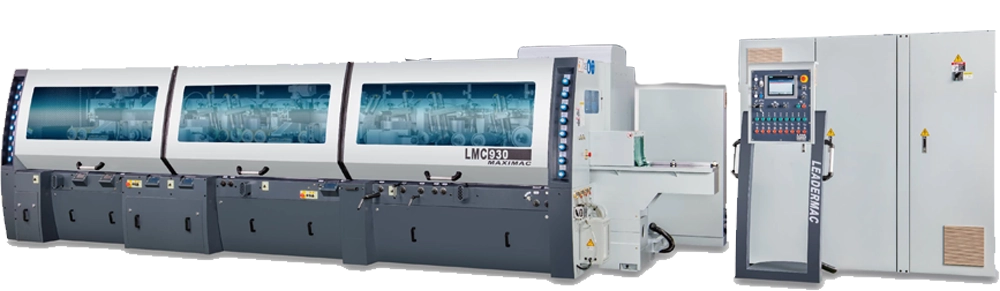

• The full heavy gauge safety enclosure serves as a chip guard and helps to reduce noise
• Table surface, guides, and chip breakers and are hard-chrome plated for maximum wear resistance.

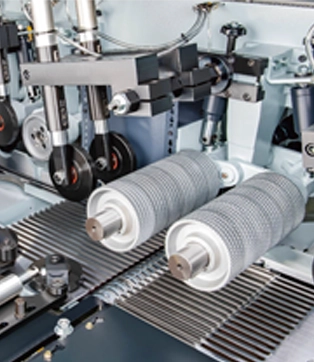

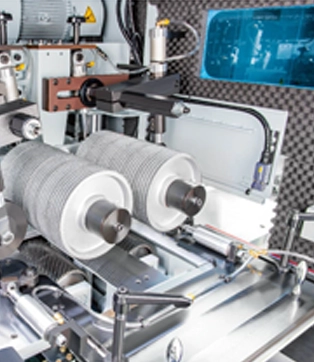

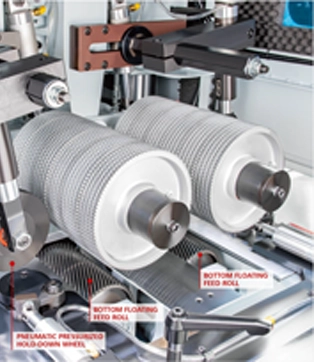

• Multiple pneumatic pressure of the feed rolls (3 stations infeed, midfeed & outfeed rolls) can be easily set to provide an outstainding capability
• More top & bottom rolls than almost all competitive moulders – hence better feeding and control
• Fast feed speed of up to 48 mpm (175.2 fpm) are standard and up to 90 mpm (300 fpm) – optional

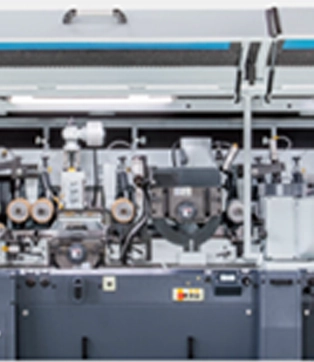

• Top heads have outboard support beams which automatically lock/unlock when resetting the top heads
• Straight & profile jointer provides accurate operation with high quality finish at high speed fed rates
• Hydro-loc quick change outboard bearings for horizontal spindles
• Adjustment of each spindle can be easily performed using the front adjustment level
• Digital readouts for the chip breakers shoes of top spindles
• Automatic lubricator is provided to supply oil to the feed table

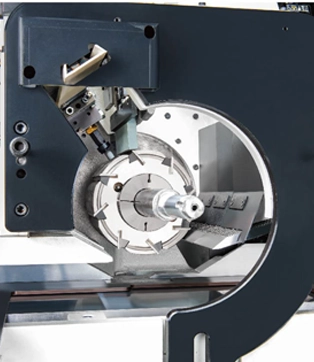

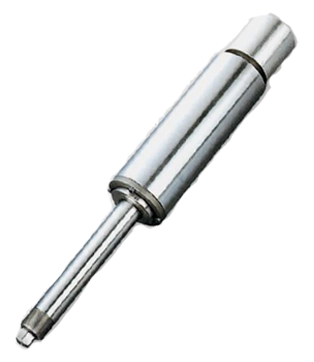

High Precision Spindle

All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. 4 super precision bearings per spindle, PLU outboard quick set hydro-loc outboard bearing assembly on all horizontals. They are water and dust-proof. Standard spindle speed is 6.000 rpm-standar r 8.000 rpm is optional

Centralized Lubrication Points

Greasing to all critical parts is conveniently made by the centralized arrangement of colour coded lubrication points along the front of the machine

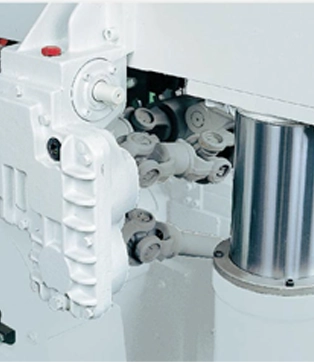

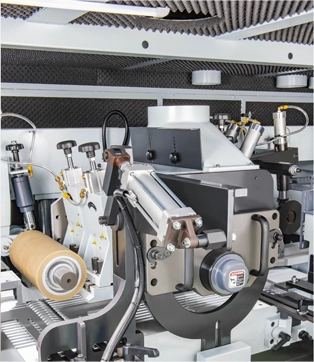

Convenient Spindle Adjustment

Adjustment of all spindles are easily effected by hand or automatically for some spindles. The adjustment point are all along the front of the machine, for more convenient and faster adjustment.

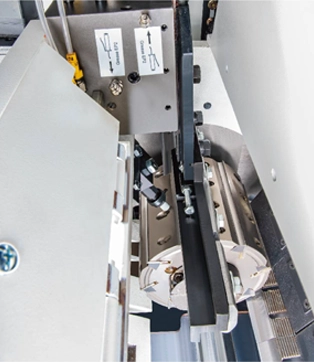

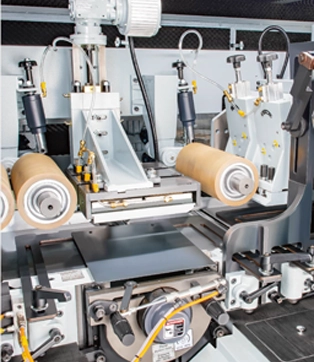

Air Floating Pressure Plate over Last Bottom Head

The pneumatically-controlled floating pressure plate ensures consistent quality with its above average flexibility for various shapes of workpieces

Groove Table (Optional)

Grooved Bed for running short material

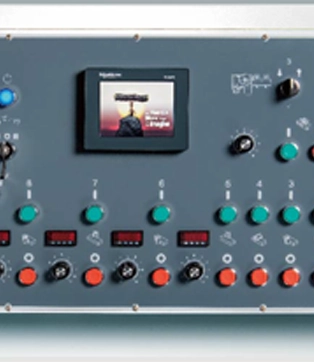

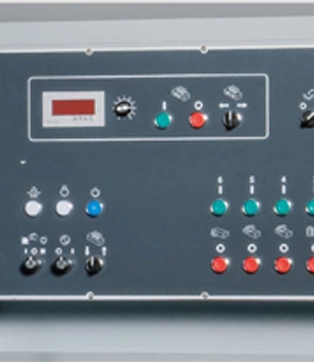

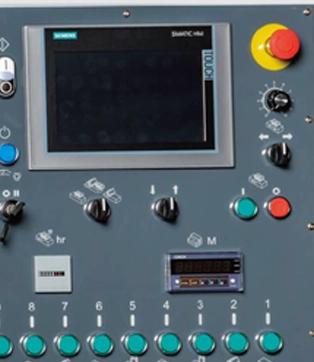

Controller

The speed is VFD inverter controlled, and all electrical components meet CE, UL & CSA standards

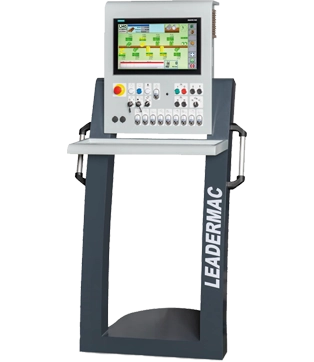

Preoset Controller (Optional)

• 19″ panel PC
• Product library (1000 sets)
• Knife library (10.000 sets)
• Automatic machine quick setup
• Easy and powerful functionality
• Workpiece settings on any axis as desired
• The width and thickness settings can be easily set using the programmable controller
• All axes are equipped with ballscrew and rotary encoders for feedback position control, providing high positioning accuracy and better cutting quality
• The desired values for width and thickness can be conveniently pre-set and are displayed on an LED readout
