Production Line of Multi Chip Saw

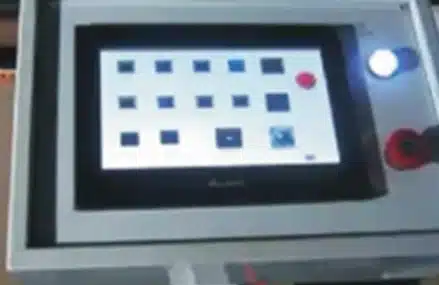

Main Control Touch Screen

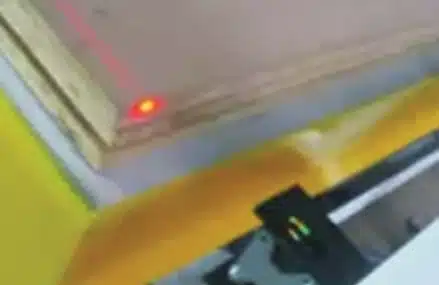

Front Lift Platform Photoelectric Limit Device

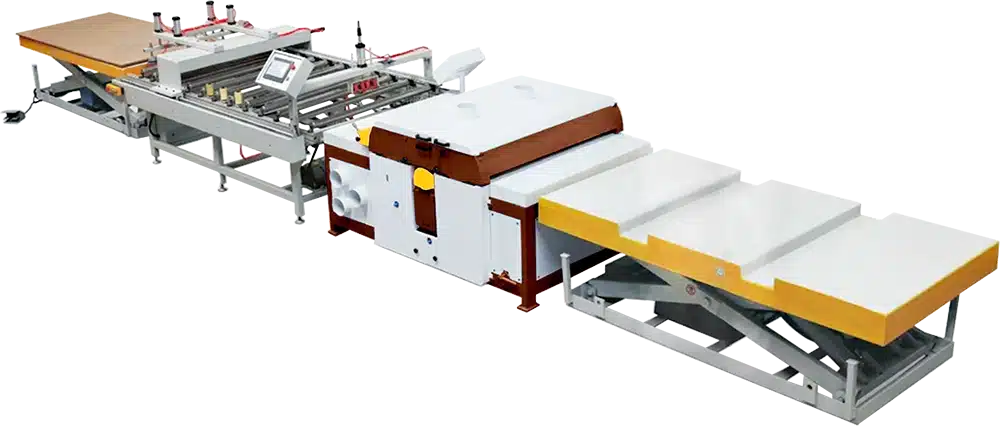

Layout Digaram of Production Line
Consist of Production Line

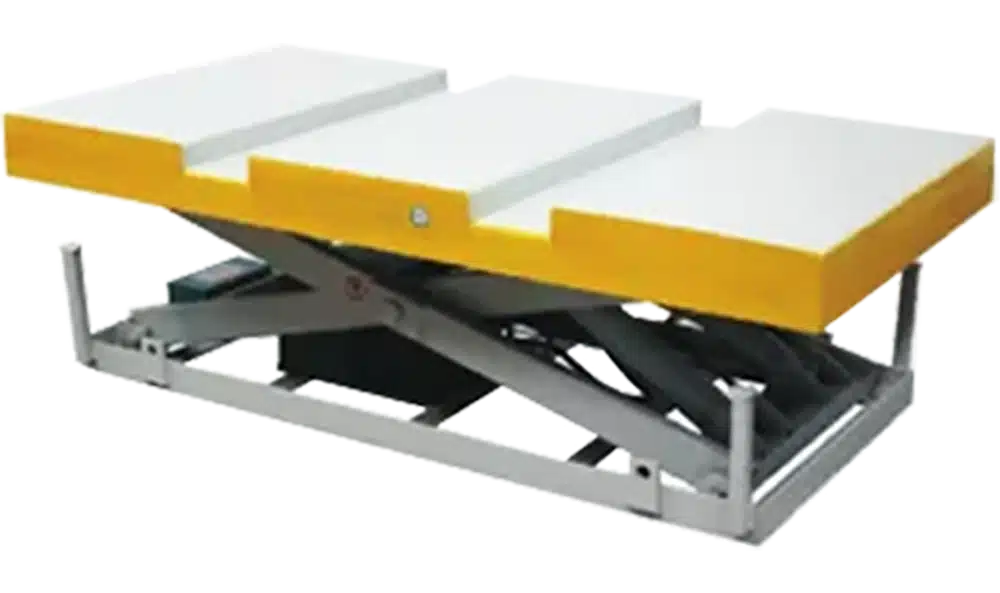

Elevators
Both front and rear are automatic induction lifting

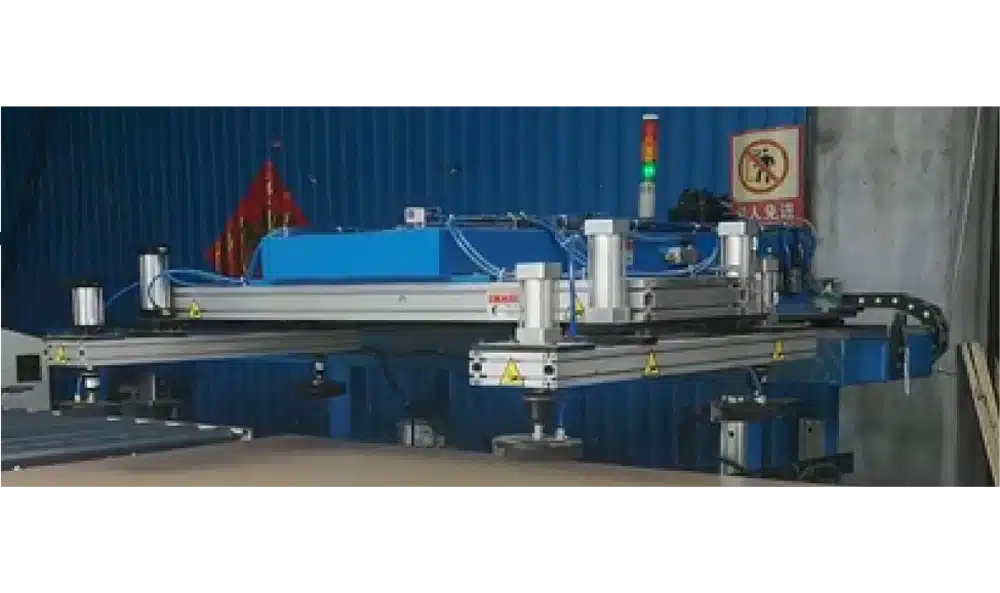

Load with Suction Cup

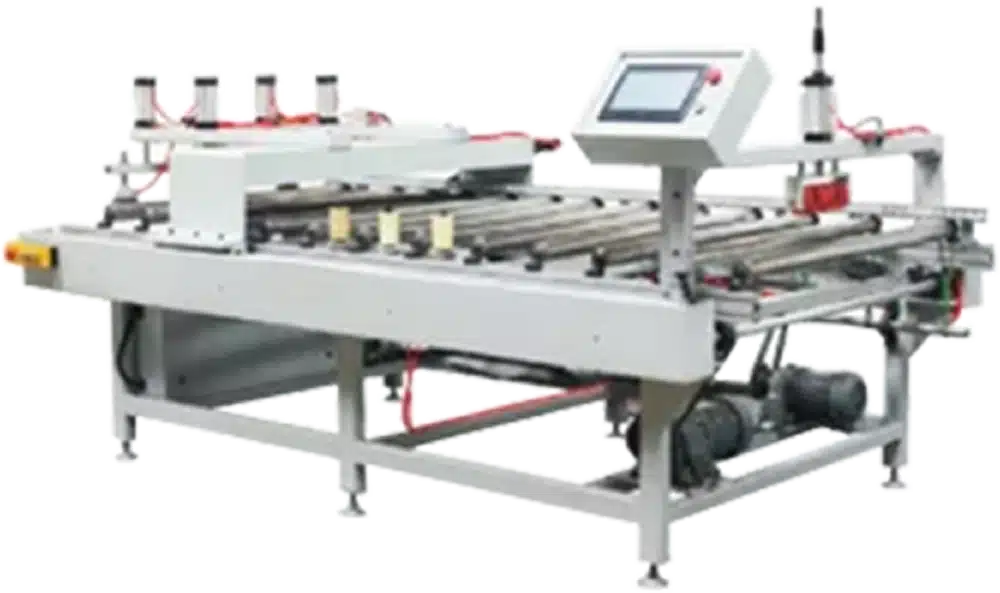

Transitional Roller Table Stand with Power

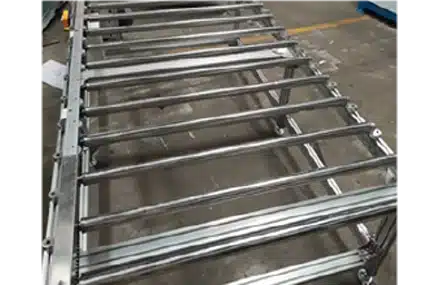

Intermidiate transition conveyor
Photoelectric Induction Pneumatic Control Pressure Roller

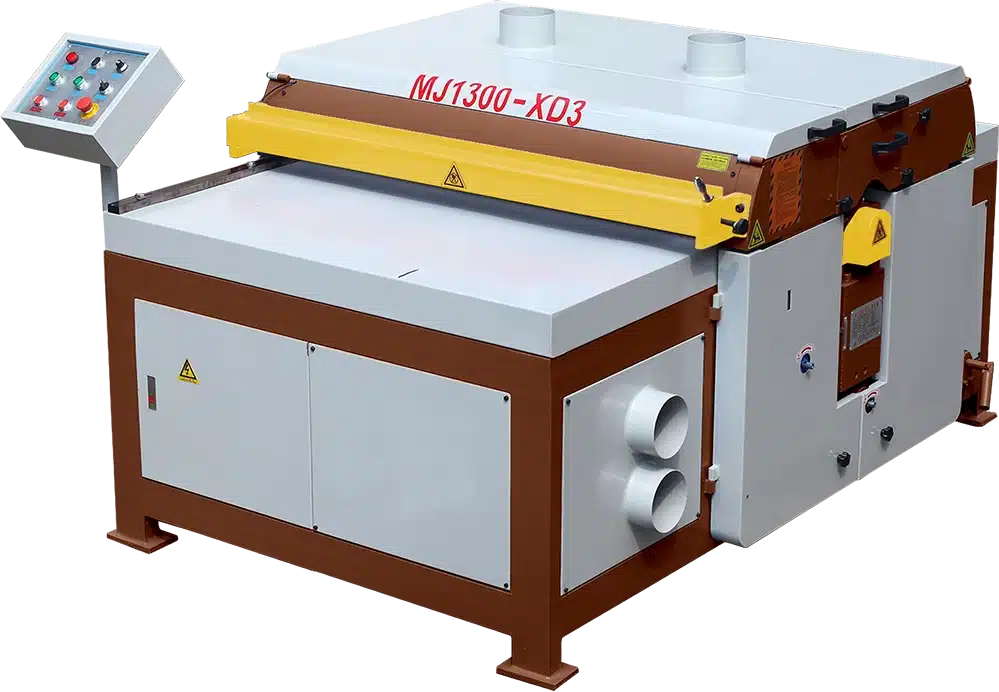

MJ1300-XD3 | MJ1300XD5
Multi Rip Saw
Scope of application:
- Density board
- Composite board
- Solid wood board
- The board surface can be slotted
Specification Production Line of Multi Chip Saw
| Model | Production Line of Multi Chip Saw |
|---|---|
| Overall Machine Size | 12000 x 1760 x 1200 mm |
| Multi Rip Saw XD3 | XD5 | |
| Total power of the whole Machine | 24.2 kW (MJ1300-XD3) 32.2 kW (MJ1300-XD5) |
| Single blade saw spindle | The motor power is 20 kW. The main shaft is a downward saw and can be raised and lowered |
| Feeding motor | Stepless speed regulation 0 - 12 m/min, power 2.2 kW |
| Processing thickness | 0 - 30 mm |
| Processing width | 1300 mm |
| Minimum processing length | 650 mm |
| Pressure roller | 6 sets of wear resistant rubber rollers, front 3 and rear 3 |
| Lifting Platform | |
| Quantity | 2 units in total, one in front and one in the back |
| Power (single machine) | Hydraulic motor 2.2 kW |
| Countertop 1 | 1300 x 2500 mm |
| Maximum load capacity | 31 grams |
| Minimum and maximum height | minimum: 420 mm maximum: 1900 mm |
| Cylinder diameter | 90 mm (2 pieces) |
| Weight | approximately 1000 kg |
| Automatic Feeder | |
| Quantity | 1 |
| Motor power | 2.2 kW |
| Valid itinerary | within 1300 mm |
| Active Conveyor Table | |
| Quantity | 1 |
| Work surface | 1300 x 2900 mm |
| Motor power | 2.2 kW |
| Work form | Active feeding |
| Electrical Appliances | |
| Control system | Controlled by PLC (Siemens) |
| Form of control | Fully automatic |
| Working method | Manually search for materials to the front automatic lifting platform (one bundle board), start the full automatic process, and the feeder feeds the wooden boards to the three motion conveyor belt, which then delivers them to the main machine (multi blade saw), and finally discharges them to the rear lifting platform |
