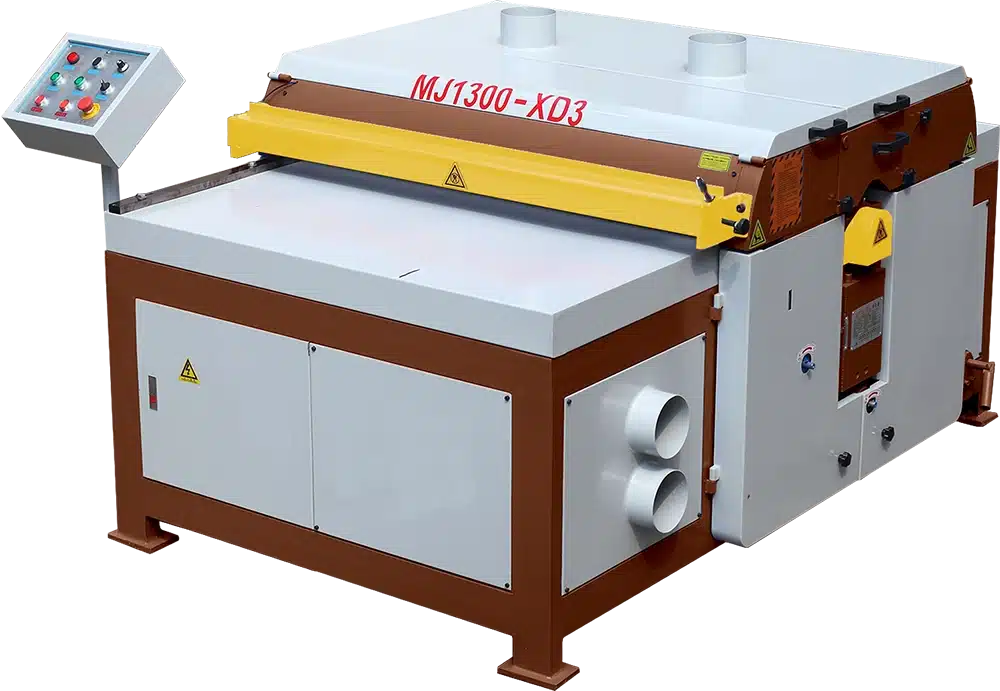

MJ1300-XD3
Multi Rip Saw
MJ1300-XD5
Multi Rip Saw

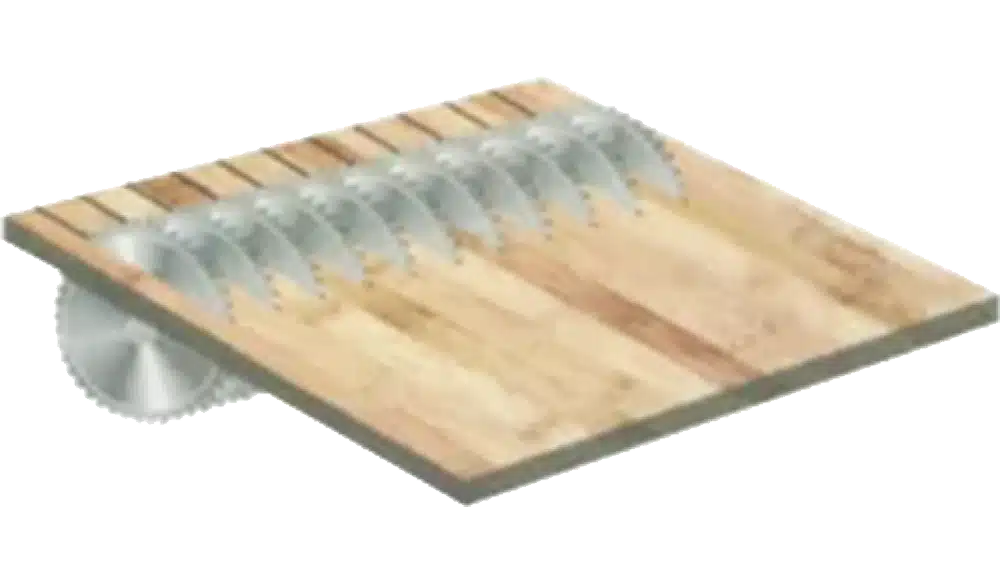

Scope of application:
- Density board
- Composite board
- Solid wood board
- The board surface can be slotted
MJ1300-XD3
- There is a down saw type main shaft with a fully enclosed protective cover and an accelerating bearing set
- Spindle diameter: 74 mm
- Total power: 23.5 kW (motor 22 kW, feeding motor 1.5 kW)
- Spindle speed: 2600 r/min
- Thickness of processed work blank: 5 – 50 mm, the maximum blank board width is 1260 mm, feed plate width is recommended not less than 550 mm

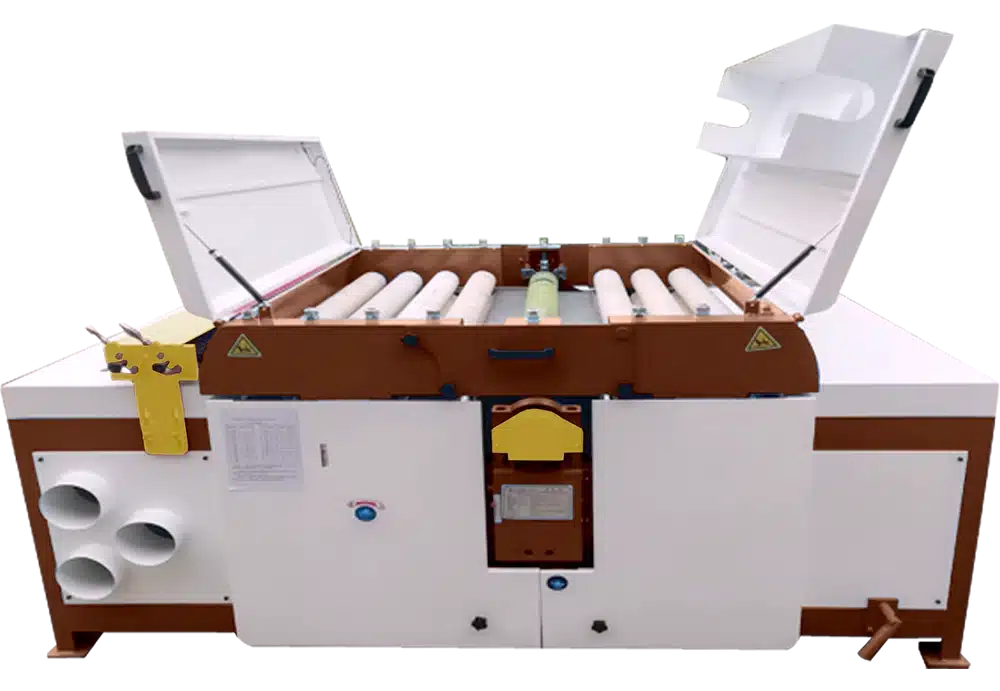

- Super wear resistant rubber rollers: the first 3 groups and the back 3 groups, a total 6 groups of 12. And there is a group of upper pressure rollers above the main shaft
- Both the main shaft and the press frame can be raised and lowered
- The machine is equipped with a sheet material rebound safety protection device
- Stepless feeding speed regulator: 0 – 12 m/min
- Saw blade specifications: 205 x 2.2 x 74 x 60T
- The machine does not contain saw blades, and includes a set of spacers with one cutting size
MJ1300-XD5
- There is a down saw type main shaft with a fully enclosed protective cover and an accelerating bearing set
- Spindle diameter: 85 mm
- Total power: 32.2 kW (motor 30 kW, feeding motor 2.2 kW)
- Spindle speed: 2600 r/min
- Thickness of processed work blank: 5 – 50 mm, the maximum blank board width is 1260 mm, feed plate width is recommended not less than 550 mm
- Super wear resistant rubber rollers: the first 4 groups and the back 3 groups, a total 7 groups of 14. And there is a group of upper pressure rollers above the main shaft
- Both the main shaft and the press frame can be raised and lowered
- The machine is equipped with a sheet material rebound safety protection device
- Stepless feeding speed regulator: 0 – 12 m/min
- Saw blade specifications: 255 x 3.0 x 85 x 48T
- The machine does not contain saw blades, and includes a set of spacers with one cutting size
Specification of Multi Rip Saw
| Model | MJ1300-XD3 | MJ1300-XD5 |
|---|---|---|
| Total power of whole machine | 24.2 kW | 32.2 kW |
| Main shaft | The main shaft is the saw and can be lowered, with a fully enclosed protective cover, and a sheet material rebound protection device | |
| Spindle motor | 22 kW | 30 kW |
| Stepless feeding speed regulator | 0 - 12 m/min | 0 - 12 m/min |
| Feeding motor | 2.2 kW | 2.2 kW |
| Thickness of processed blank board | 0 - 30 mm | 0 - 50 mm |
| Max. blank width | 1300 mm | 1300 mm |
| Rollers | There are 6 groups of wear resistant rubber rollers in the first here groups and the last there groups | The first four groups and the last three groups, a total of 7 groups of wear resistant rubber rollers |
| Recommended width of the feed plate | no less than 650 mm | no less than 650 mm |
| Dimensions | 2300 x 1760 x 1200 mm | 2300 x 1760 x 1200 mm |
