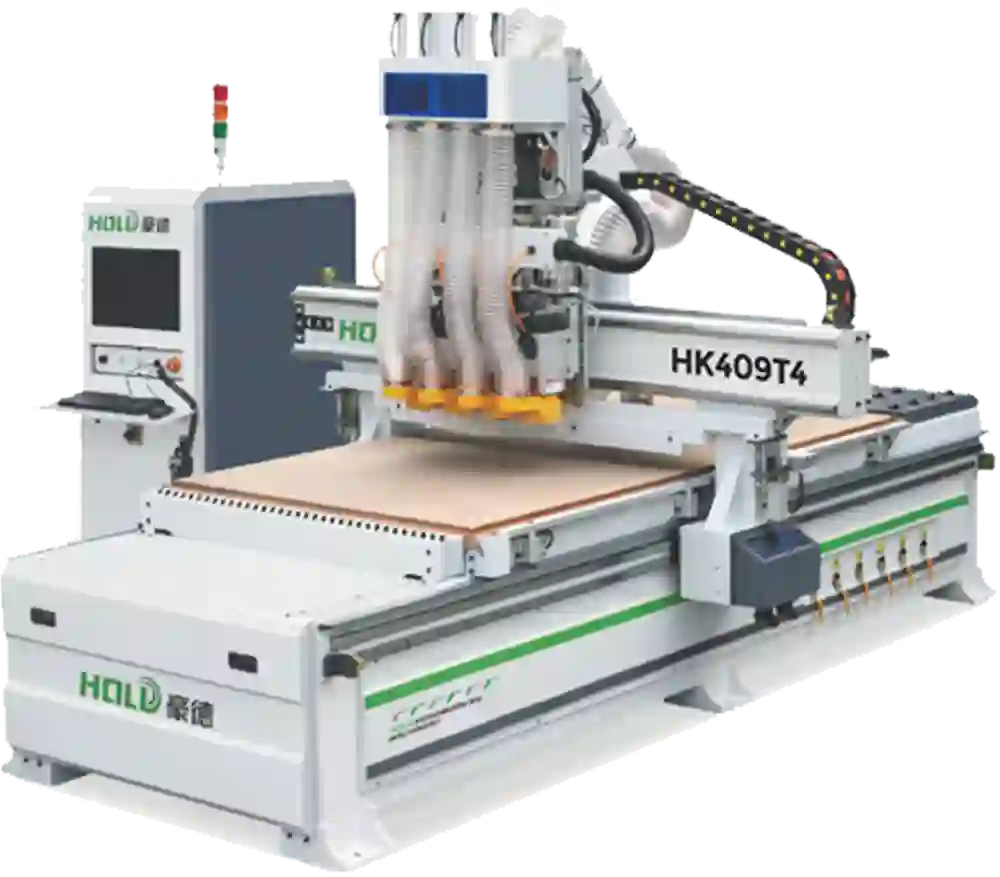

HK-409T4
CNC Router (4 x 9 ft)
Technical Info
Heavy duty intelligent cutting, efficient, accurate and reliable
- One station, four spindles
- Windows based operating software
- Servo drive system
- Processing size: 1220 x 2750 x 30 mm
- Heavy duty servo motor, stable output
- High performance inverter, anti strong interference, energy saving and environtmental protection
- 7-zone vacuum adsorption platform with fine partition and uniform adsorption
- Thousandth grade high precision tool setting device, stable cutting and continuous improvement
- Taiwan LNC control system
Standard Configuration
Heavy Duty Machine Frame

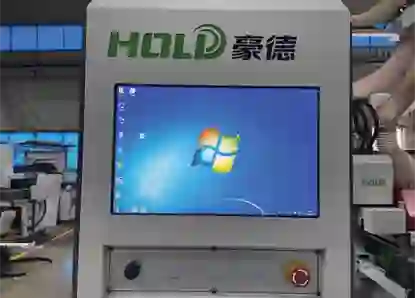

Computer Operation

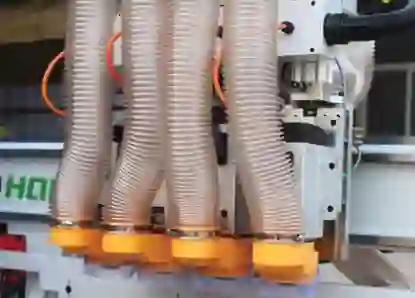

Four Spindles

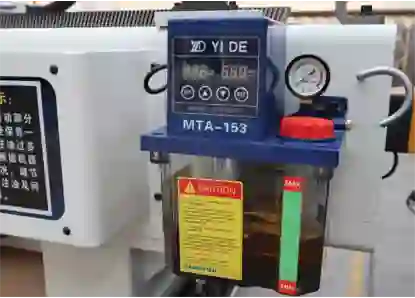

Precise Automatic Lubrication System

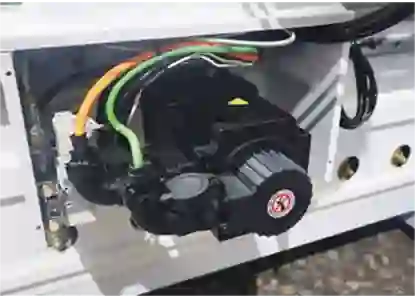

Servo Motor

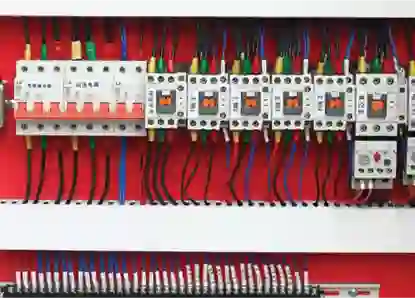

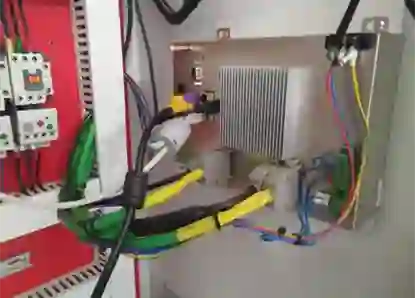

Excellent Electrical Components
Stable Control System

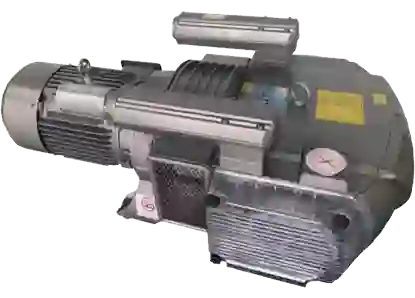

7.5 kW Air Cooling Vacuum Pump

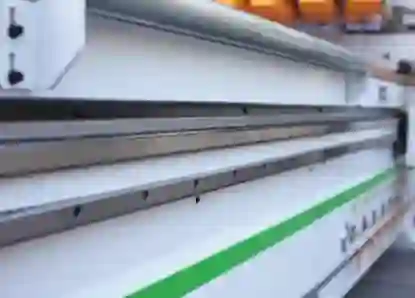

High Precision 30 Guide Rail

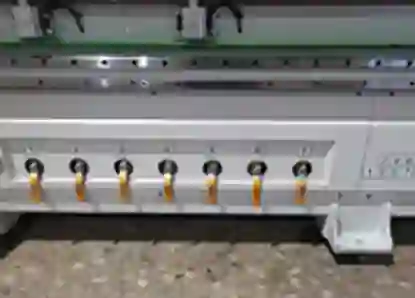

7-zone Vacuum Adsorption Platform

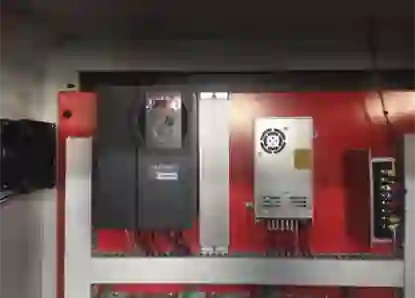

High Performance Inverter

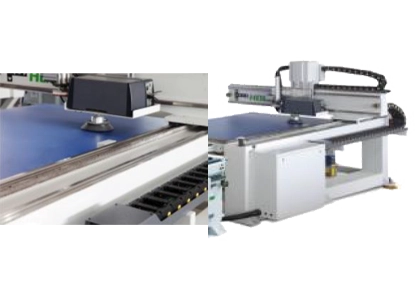

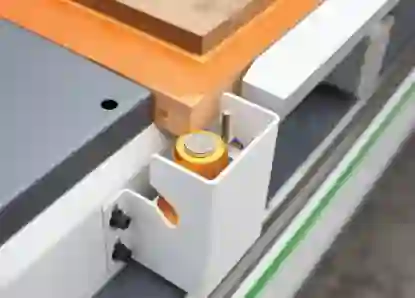

Thousands of Classification and High Precision Tool Alignment Instrument

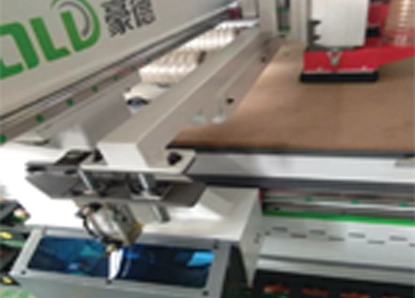

Front Pushing Device
Optional Configuration
Auto Labeling Device

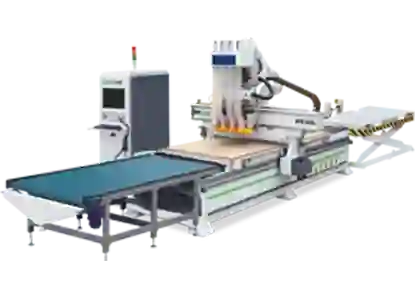

Loading – Unloading System
Specification of HK409T4
| Model | HK409T4 |
|---|---|
| Working area | 1220 x 2750 x 30 mm |
| Traveling area | 1850 x 3500 x 260 mm |
| Idling speed | 80 m/min |
| Working speed | 12 - 25 m/min |
| Spindle power | 6.0 kW x 4 |
| Spindle speed | 18000 r/min |
| Working voltage | AC 380 V / 3 Ph / 50 Hz |
| Driving system | Servo drive |
| Positioning method | High precision positioning cylinder + positioning by gear |
| Table structure | Divison vacuum suction table |
| Dimensions | 4250 x 2750 x 3150 mm |
| Suction port | ⌀ 200 / ⌀ 100 mm |
| Total power | 41 kW |
| Weight | 2200 kg |
