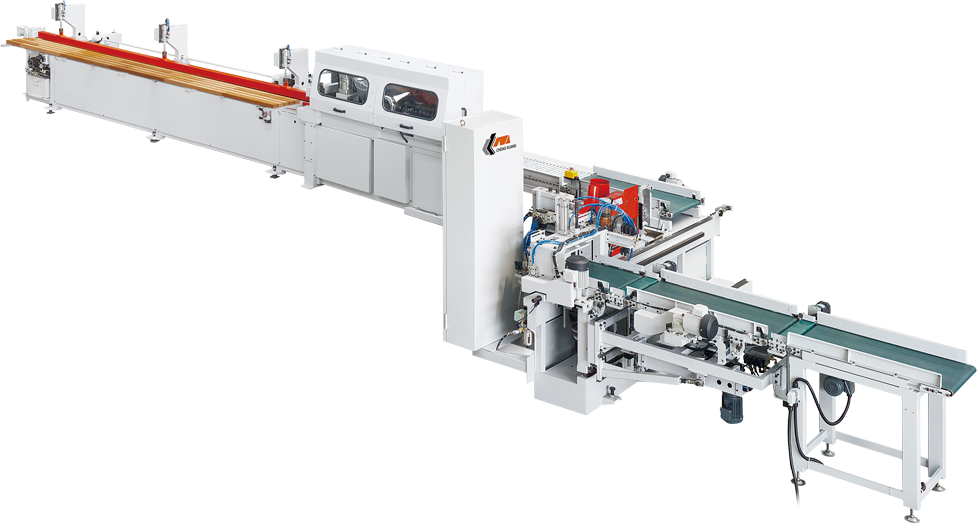

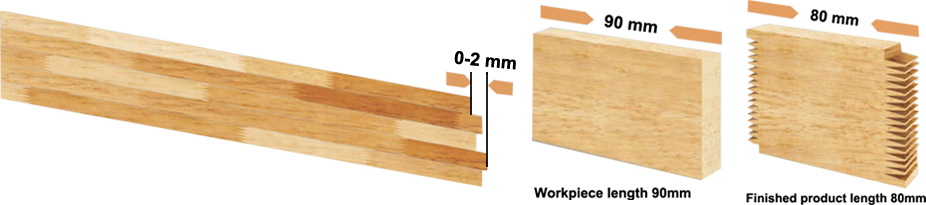

Look into CKM FL-24 for Better Ideas in Finger Shaping and Jointing
- Applicable for machining extra short wood waste of 90mm.
- A single shaper cuts both end of wood
- Rotary table swivels 180o
- 0-2 mm cutting length tolerance.
- Higher shaping accuracy.
- Reduced cutting costs.
- Automatic spindle elevation.
- Automatic scoring saw movement

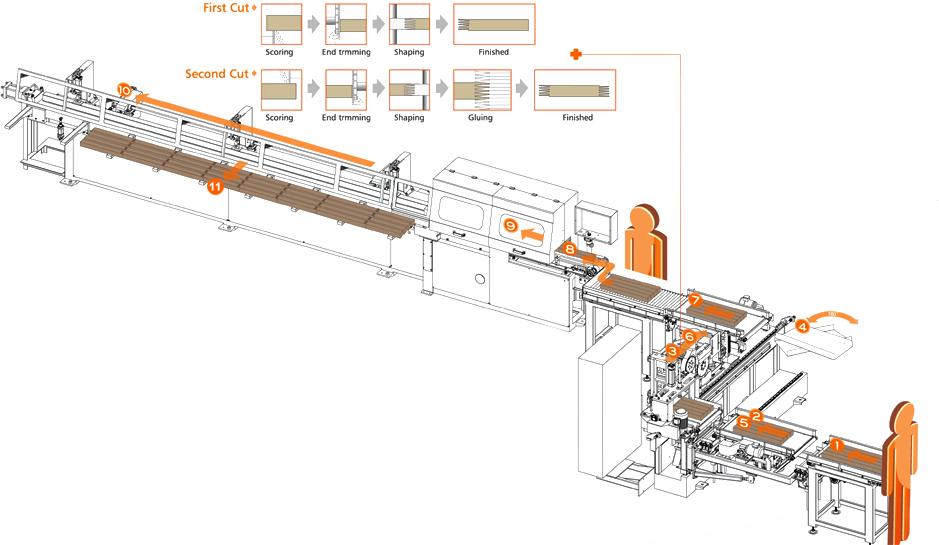

Production Flow Chart
- Automatic initial infeeding workpiece.
- Automatic feed table. Automatic alignment.
- Right Finger Shaper. Performing, scoring, trimming, and shaping on right end of workpiece.
- Work Piece Rotation. Workpieces automatically rotated to the left finger shaper. Automatic alignment.
- Automatic feed table. Automatic alignment.
- Left Finger Shaper. Perform scoring, trimming, shaping and gluing on the left end of workpiece.
- Workpieces move to the standby conveyor, then feed forward onto automatic feeding machine.
- Manually fed workpieces, one at a time.
- Workpieces automatically feed into pre-press assembly stand.
- Workpieces move forward to multi-step cutting process. Finger assembly is performed by a powerful hydraulic system.
- Final product outfeed on staging platform.
Automatic Scoring Sawblade Movement
Automatic Shaper Spindle Elevation
Scoring saw with auto switching device (left & right)

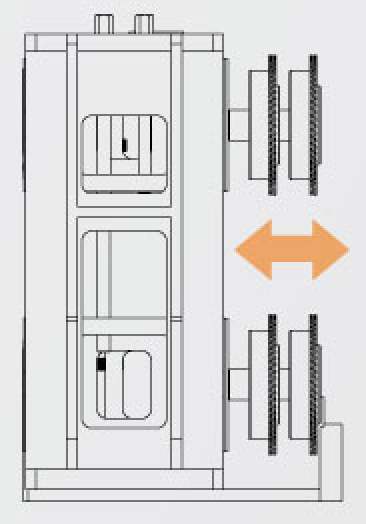

Automatic scoring saw movement
The shaper spindle elevation is driven by a servo motor, providing high positioning accuracy

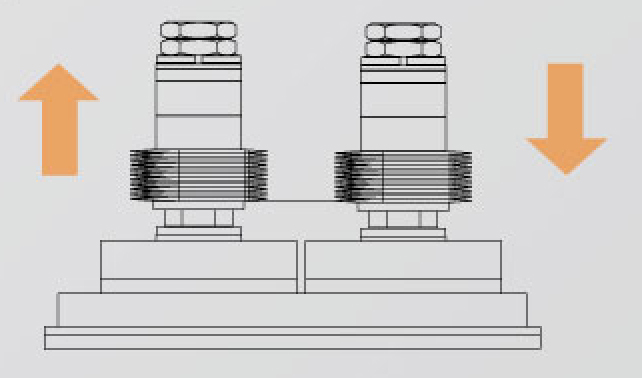

Automatic shaper spindle elevation

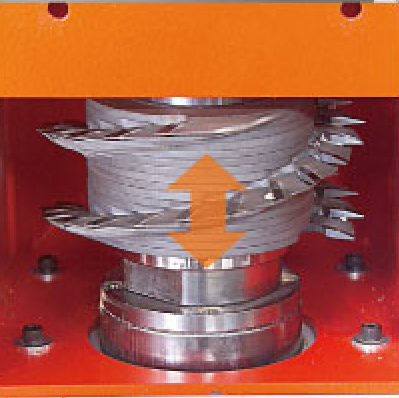

Finger shaper with auto switching device (left & right)

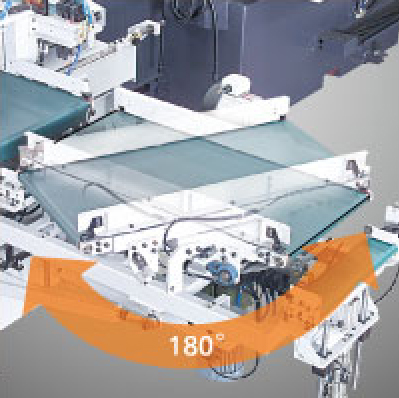

Rotary Table

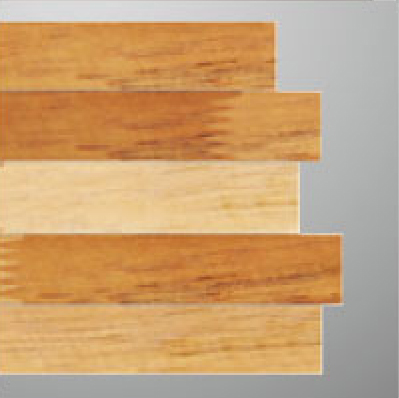

0 – 2 mm Length Tolerance
Left & right auto switching finger shaper
The table swivels 180o, allowing the shaper to cut another end of wood.
The CKM FL-24 exhibits ultra-high accuracy. Length tolerance for all jointed product is within 0-2 mm increasing wood utilization
tolerance b/t each finishing material in length: 0-2 mm
Dimensional Drawing of FL-24
F-I17 Initial Automatic Feeding Table
F-C03 Finger Shaper
F-D15 Manual Feeding Table
F-A17-16′ Semi-auto Finger Assembler

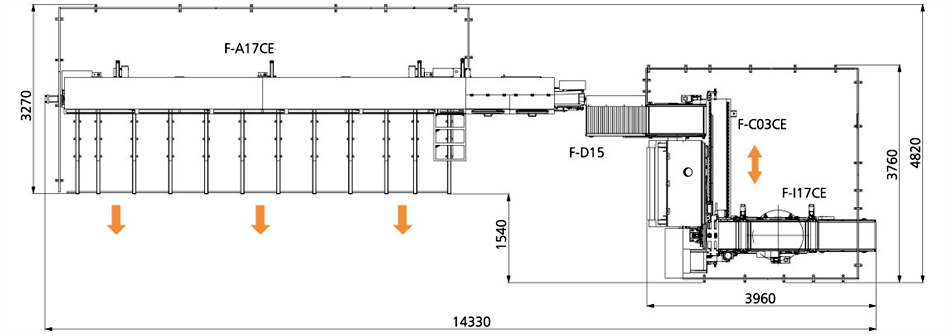

Dimensional Drawing of FL-24CE
F-I17CE Initial Automatic Feeding Table
F-C03CE Finger Shaper
F-D15 Manual Feeding Table
F-A17CE Semi-auto Finger Assembler
Spesifikasi FL-24
| F-C03 Finger Shaper | ||
|---|---|---|
| Model | FC03PM | FC03PM |
| Max. width for working table | 450 mm | 450 mm |
| Range of material length | 100 - 700 mm | 100 - 700 mm |
| Range of material width | 30 - 160 mm | 30 - 160 mm |
| Scoring saw speed (opt.) | 2800 / 3400 rpm (50 / 60 Hz) | 2800 / 3400 rpm (50 / 60 Hz) |
| Trimming saw speed | 2800 / 3400 rpm (50 / 60 Hz) | 2800 / 3400 rpm (50 / 60 Hz) |
| Finger cutter speed | 7000 rpm | 7000 rpm |
| Finger cutter diameter | ⌀ 70 (I.D.) / ⌀ 160 (O.D.) | ⌀ 70 (I.D.) / ⌀ 160 (O.D.) |
| Dust outlet diameter | 6" x 2 | 6" x 2 |
| Machine dimensions (L x W x H) | 3220 x 2600 x 1920 mm | 3220 x 1760 x 1920 mm |
| Motor horsepower | ||
| Working table servo | 1 kW | 1 kW |
| Spindle table servo motor | 0.4 kW | 0.4 kW |
| Table turning servo motor | 0.4 kW | - |
| Converyor belt motor | ½ HP x 2 | ½ HP |
| Scoring saw motor | 1 HP x 2 | 1 HP x 2 |
| Trimming saw motor | 5 HP | 5 HP |
| Finger cutter motor | 15 HP | 15 HP |
| F-D15 Manual Feeding Table | ||
|---|---|---|
| Model | F-D15 | F-D15P2 |
| Max. width for working table | 450 mm | 450 mm |
| Range of material length | 100 - 700 mm | 100 - 700 mm |
| Machine dimensions (L x W x H) | 750 x 700 x 1000 mm | 750 x 600 x 900 mm |
| F-A17 Assemble Press | ||
|---|---|---|
| Model | 2.5 M | 5.0 M |
| Available length of product | 2500 mm | 5000 mm |
| Range of material thickness | 20 - 60 mm | 20 - 60 mm |
| Range of material width | 30 - 160 mm | 30 - 160 mm |
| Max. assembly press | 0 - 100 kg/cm² | 0 - 100 kg/cm² |
| Dust outlet diameter | 5" | 5" |
| Machine dimensions (L x W x H) | 5000 x 1160 x 1500 mm | 7500 x 1160 x 1500 mm |
| Motor horsepower | ||
| Material feeding motor | 1 HP x 2 | 1 HP x 2 |
| Sizing saw motor | 5 HP | 5 HP |
| Hydraulic pump motor | 3 HP | 3 HP |
| F-I17 Initial Automatic Feeding Table | |
|---|---|
| Model | |
| Max. width for working table | 450 mm |
| Max. material length | 700 mm |
| Machine dimensions (L x W x H) | 1000 x 610 x 970 mm |
| Motor horsepower | |
| Conveyor table motor | ½ HP |
