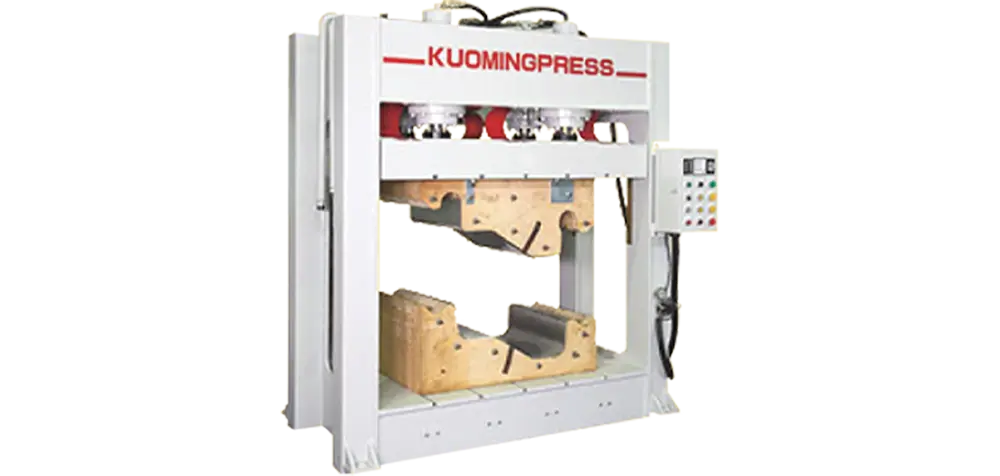

High Frequency Hydraulic Press
One Way

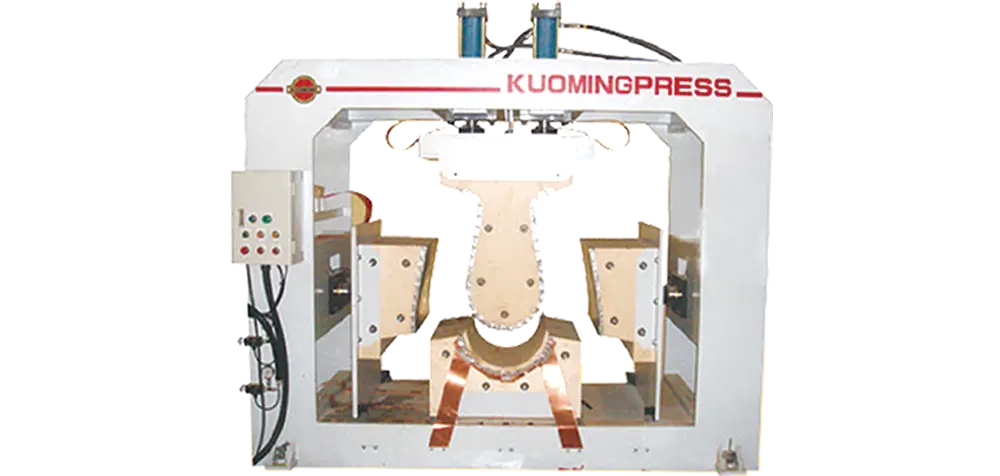

High Frequency Hydraulic Press
Three Way
High Frequency Hydraulic Press
Four Way

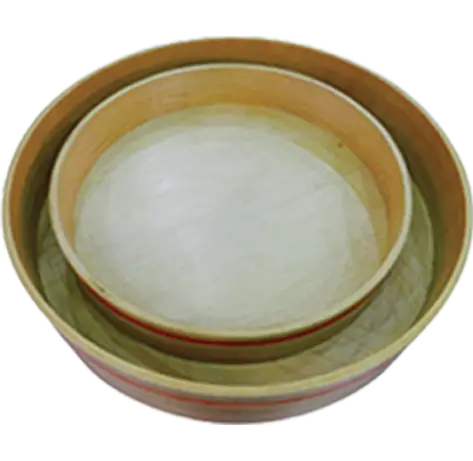

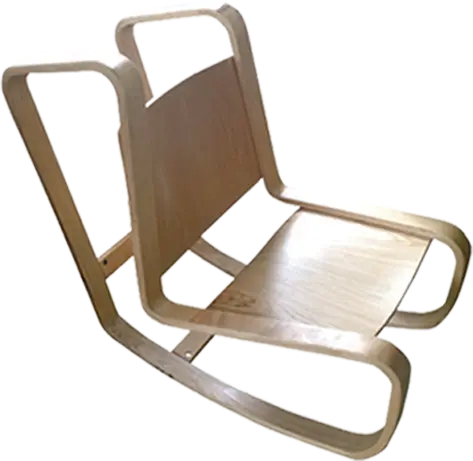

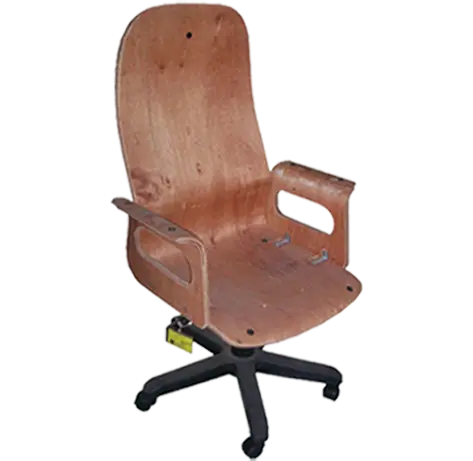

Machineable Products
Specification High Frequency Hydraulic Press
| Model | KPW-801H KPW-803H KPW-804H | KPW-1001H KPW-1003H KPW-1004H | KPW-1201H KPW-1203H | KPW-1501H | KPW-1503H | KPW-1801H | KPW-1803H | KPW-2001H | KPW-2003H |
|---|---|---|---|---|---|---|
| Voltage | ||||||
| Output power | 80 Ton | 100 Ton | 120 Ton | 150 Ton | 180 Ton | 200 Ton |
| Platen (W x L) | One way: 750 × 900 mm | One way: 900 × 1600 mm Three way: 600 × 750 mm 400 × 600 mm | One way: 1300 × 2500 mm Three way: 900 × 1000 mm, 600 × 900 mm | One way: 1300 × 2500 mm Three way: 900 × 1000 mm, 600 × 900 mm | One way: 1300 × 3000 mm Three way: 900 × 1500 mm, 600 × 900 mm | One way: 1500 × 3500 mm | Three way: 900 × 1800 mm, 900 × 900 mm |
| Opening | 900 mm | 1000 mm | 1200 mm | 1200 mm | 1300 mm | 1400 mm |
| Pressing | ||||||
| Dimensions | 1500×1070×2000 mm | 2150×1070×2100 mm | 2500×1200×2150 mm | 3150×1430×2200 mm | 3400×1500×2300 mm | 3700×1700×2300 mm |
| Weight | 3200 kg | 4000 kg | 4700 kg | 5300 kg | 6000 kg | 6600 kg |
