If you need to increase productifity and quality in finger jointing operations, you can consider the FL-08 Auto Finger Jointing Line from CKM. The entire machining procedures from workpiece in feed, left and right shaping to jointing is fast, smooth and accurate. The whole production line is carefully designed and built for maximum dependability year after year.
Capacity 3-4 sticks/min

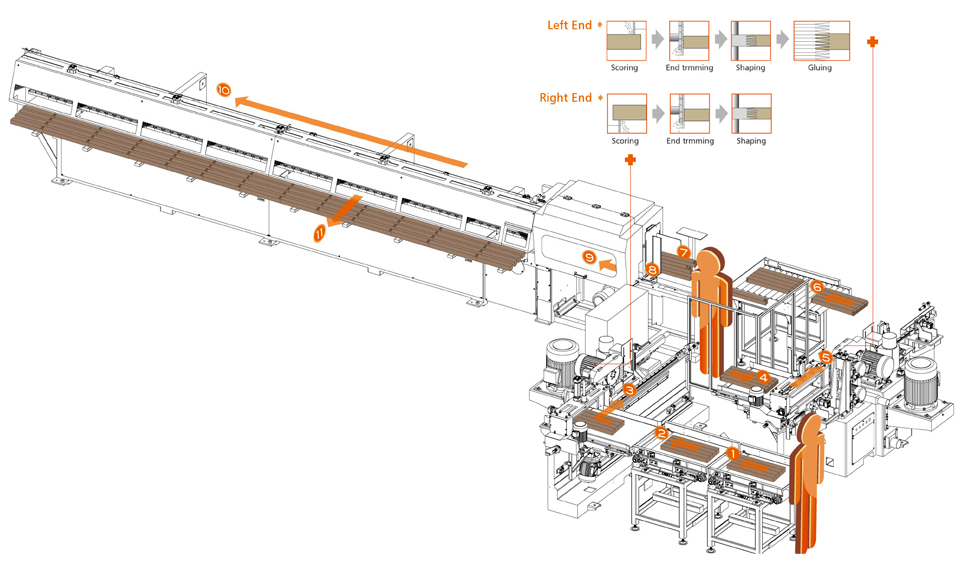

Production Flow Chart
- Automatic initial in feeding of workpiece.
- Automatic feed table.
- F-C07 left finger shaper performs scoring, trimming, and shaping left end of workpiece.
- Workpieces automatically travel into right finger shaper.
- F-C08 right finger shaper performs scoring, trimming, and gluing on right end of workpiece.
- Workpieces feed roller table automatically.
- Operator places workpieces in hopper.
- Workpieces feed one by one automatically.
- Workpieces travel forward for cutting to length.
- Finger assembly is performed by a powerful hydraulic system.
- Final product out feed on staged platform.
Video of FL-08
F-C07 Finger Shaper (Right End)
Frequency Inverted Motor Drive
The feed systems on the right and left finger shapers are driven by an individual frequency inverted motor, providing variable feed speed.
Linear Ways with Rack/Pinion Transmision
The tables on the right and left finger shaper move on precision linear guide ways in combination with rack/pinion transmission for extra smooth movement
Right Shaping Mechanism
The mechanism performs scoring, trimming and shaping operations on the right end of the workpiece. Scoring blade in front of trimming blade cuts bottom edge to give splinter-free finish. Finger cutters produce smooth finger shape. Cutting capacity: 6 ¼” thickness.
Accurate Sawblade Adjustment
The trimming and scoring sawblade position are adjusted on the precision rod guides, which are hard chrome-plated for maximum wear resistance. Micrometers are also provided for accurate indication for adjustment, ensuring superior jointing quality.
F-C08 Finger Shaper (Left End)
Left Shaping Mechanism
The mechanism performs scoring, trimming, shaping and gluing operations on the left end of the workpieces. Scoring blades cut top and bottom edges
Cutter Presetter
A cutter presetter is built on the right shaper for convenient cutter assembly.
F-C07 & F-C08
Roller-Type Glue Coating Device (standard)
Glue Spraying Device (optional)
With this device, glue can be uniformly sprayed on the surface of finger joints during feeding. It also features easy cleaning and maintenance.
F-I29 Independent Initial Conveyor Table
F-D16 Hand Feeding Table
F-I29 Independent Initial Conveyor Table
The specially designed initial conveyor tables are a combination of independent tables. This design permits customers to increase or reduce the quantity of conveyor table as desired.
F-D16 Hand Feeding Table (single Side Open Fence)
- A manually operated roller conveyor table, located between the right finger shaper and the assembly press.
- At this station, the operator may inspect cutting quality produced by finger shapers.
F-A05-6 Assembly Press
- For jointing lengths over 6.2 meters; the assembly press is designed with two hydraulic cylinders, providing more powerful and faster jointing performance.
- For jointing lengths under 6.2 meters; only a single hydraulic cylinder is equipped.
- Standard jointing lengths can be specified.
- Length of cut is calculated by an encoder.
- A synchronized 2-step process allows the back of the press to continue jointing and cutting to length while the front of the press is performing pressing and out-feeding motions.
Pneumatically Loaded Feed Rollers
The feed rollers on the assembly press are loaded by air cylinders to achieve smooth and stable feeding at all times.
Accurate Length Setting Via Touch Screen Panel
Length of cut is calculated by an encoder and set on a touch screen for increased accuracy.
Hopper loader
The hopper loader is mounted before the assembly press. After shaping, the operator may stack the workpieces in the hopper loader for automatic feed into the assembly press.
Spesifikasi FL-08
| F-I29 Multi-stage Initial Conveyor Table | |
|---|---|
| Conveyor table width | 650 mm |
| Table height | 875 mm |
| Feed drive motor | 1/2 HP |
| Overall length | 990 mm |
| Overall width | 840 mm |
| F-D16 Hand Feeding Table | |
|---|---|
| Table width | |
| Roller sizes | |
| Machine height | |
| Machine length | |
| Machine width | |
| F-C07 Auto Finger Shaper (Right End) | |
|---|---|
| Max. available width working table | |
| Range of workpiece length | |
| Range of workpiece height | |
| Table moving speed | |
| Trimming saw speed | 3400 rpm (60hz) |
| Finger cutter speed | |
| Scoring saw speed | 3400 rpm (60hz) |
| POWER REQUIRED | |
| Table-drive motor | |
| For conveyor motor | |
| Scoring saw motor | |
| Trim saw motor | |
| Shaper cutter motor | |
| Diameter of cutter (in/out) | |
| Dust hood outlet diameter | |
| Machine dimension (LxHxW) | |
| Noise value | |
| F-C08 Auto Finger Shaper (Left End) | |
|---|---|
| Max. available width working table | |
| Range of workpiece length | |
| Range of workpiece height | |
| Table moving speed | |
| Trimming saw speed | 3400 rpm (60hz) |
| Finger cutter speed | |
| Scoring saw speed | 3400 rpm (60hz) |
| POWER REQUIRED | |
| Table-drive motor | |
| For conveyor motor | |
| Scoring saw motor | |
| Trim saw motor | |
| Shaper cutter motor | |
| Diameter of cutter (in/out) | |
| Dust hood outlet diameter | |
| Machine dimension (LxHxW) | |
| Noise value | |
| F-A05-6 Auto Assembly Press | |
|---|---|
| Available length of product | |
| Available thickness of product | |
| Available width of product | |
| Feeding speed | |
| Capacity length product | |
| POWER REQUIRED | |
| Feed motor | |
| Max. assembly pressure | |
| Hydraulic power unit | |
| Cut-off saw | |
| Dust hood outlet diameter | |
| Machine dimensions (LxHxW) | |
| Noise Value | |
