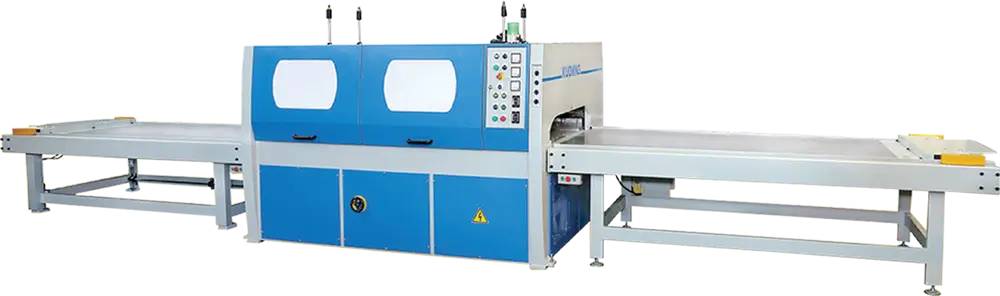

High Frequency Press Lamella Edge Glue Press
KGW-1030HH | KGW-1040HH | KGW-1060HH

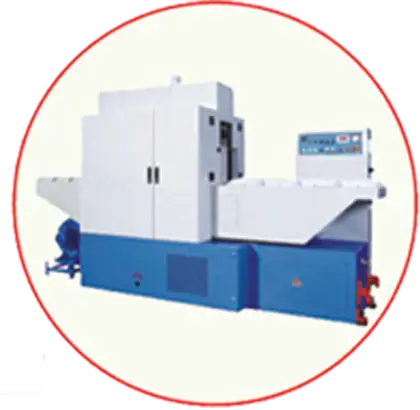

Frame Saw

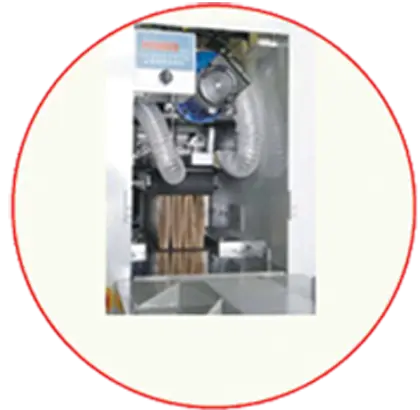

Slicing

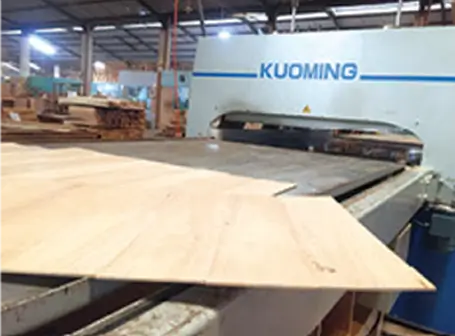

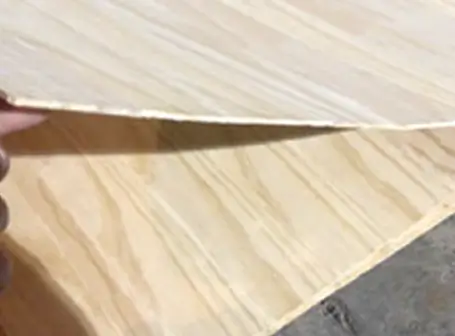

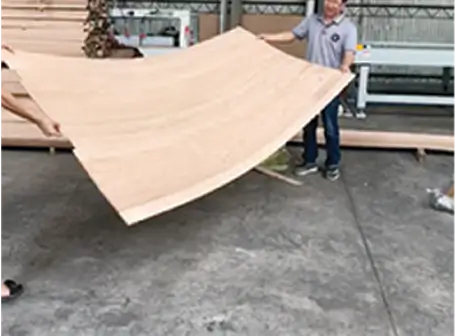

2.8 mm thin panel Lamella edge glue 4' x 8' 30 second

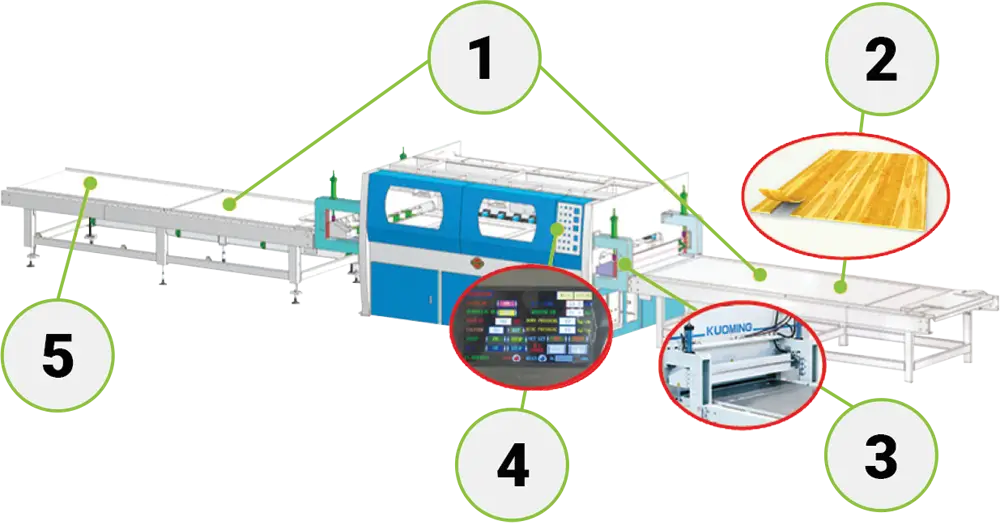

Advantages
- Dual shuttle table, two times faster efficiency
- Lamella edge glue from thickness 2.5 mm and above
- Lateral pressure ffor CLT production (optional)
- HMI control one button to control the machine
- User friendly operation, it equipped with side automatic inlet and outlet feeding table for continuous and mass production
Machineable Products
Specification Lamella Edge Glue Press
| Model | KGW-1030HH | KGW-1040HH | KGW-1060HH |
|---|---|---|---|
| Vintage | 3Ø 220/380/400/415/440/480V | 3Ø 220/380/400/415/440/480V | 3Ø 220/380/400/415/440/480V |
| Input power | 40 KVA | 60 KVA | 90 KVA |
| Output power | 30 kW | 40 kW | 60 kW |
| Platen (W x L) | 1220 × 2500 mm | 1220 × 3000 mm | 1220 × 5000 mm |
| Thickness | 2.5~60 mm / 2.5~125 mm (Optional) | 2.5~60 mm / 2.5~125 mm (Optional) | 2.5~60 mm / 2.5~125 mm (Optional) |
| Pressing | Side, Top Pressing / Hydraulic | Side, Top Pressing / Hydraulic | Side, Top Pressing / Hydraulic |
| Dimension (L x W x H) | Main press: 2820 × 2210 × 1900 mm Infeed table: 3120 × 1780 × 940 mm Outfeed table: 3120 × 1780 × 940 mm | Main press: 3330 × 2210 × 1900 mm Infeed table: 3620 × 1780 × 940 mm Outfeed table: 3620 × 1780 × 940 mm | Main press: 5210 × 2300 × 2000 mm Infeed table: 5650 × 1820 × 940 mm Outfeed table: 5650 × 1820 × 940 mm |
| Weight | 4500 kg | 6000 kg | 7500 kg |
