Powerful!
Extra High Speed!
High Efficiency!
At a price that’s perfect for your budget.
A new economical and easier way to finger jointing operation.
The CKM gives you the finger jointing efficiency, quality and dependability-with an economity you will love. Because we design and engineer this new finger jointing system with speed, performance, accuracy and cost in mind. The line is mor easy to operate than before. It integrated lots of fine features such as: Fast, effortless stock feed,
Linear motion guide provided on table slideways guarantees superior straight accuracy, optimum finger shaper cutting quality……CHENG KUANG’s extensive experience in finger jointing technology background allows this system provide an engineering excellence that`s perfect for your jobs. At a price that`s perfect for your budget.
Production Flow Chart
Production Flow Chart
1. Initial material loading.
2. Material loaded on hand feeding table, and quality may be inspected at this time.
3. Material is fed into finger shaper (Left end).
4. F-C21 perform trimming, shaping on left end of workpiece.
5. Workpiece standby on hand feeding table, and quality may be inspected of this time.
6. Workpiece travel into finger shaper (Right end) by operator.
7. F-C22 perform trimming, shaping on right end of workpiece.
8. Workpiece travel to hand feeding table, another inspection is conducted at this station.
9. Operator puts workpiece on conveyor table before finger assembly.
10. Workpiece Travel forward for cut to length.
11. Finger assembly performed with powerful hydraulic unit.
12. Final production outfeed and stay for a while for drying.

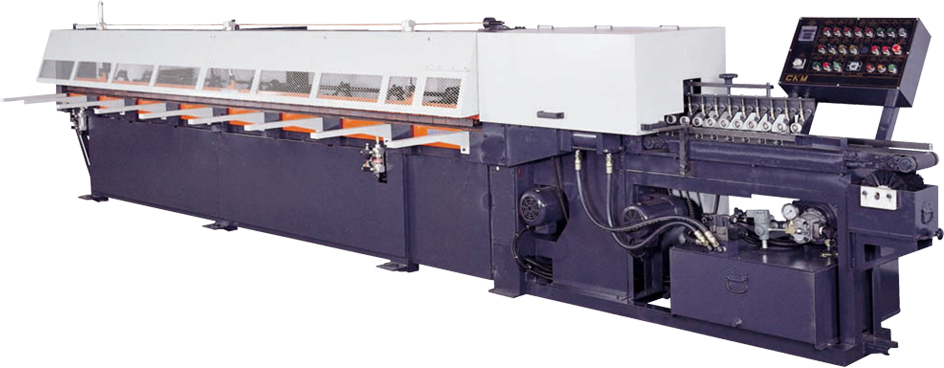

F-A05 Finger Assembler
F-A05 FINGER ASSEMBLER
For jointing two short sticks end to end to produce a longer one, up to 4.5 meters or 6 meters in length. Two-step sequence of finger assembler from feeding, multiple-step cut-off to pressing, outfeed is synchronized.
Dimensional Drawing of FJ-17
F-A05 (4.5M) Finger Assembler

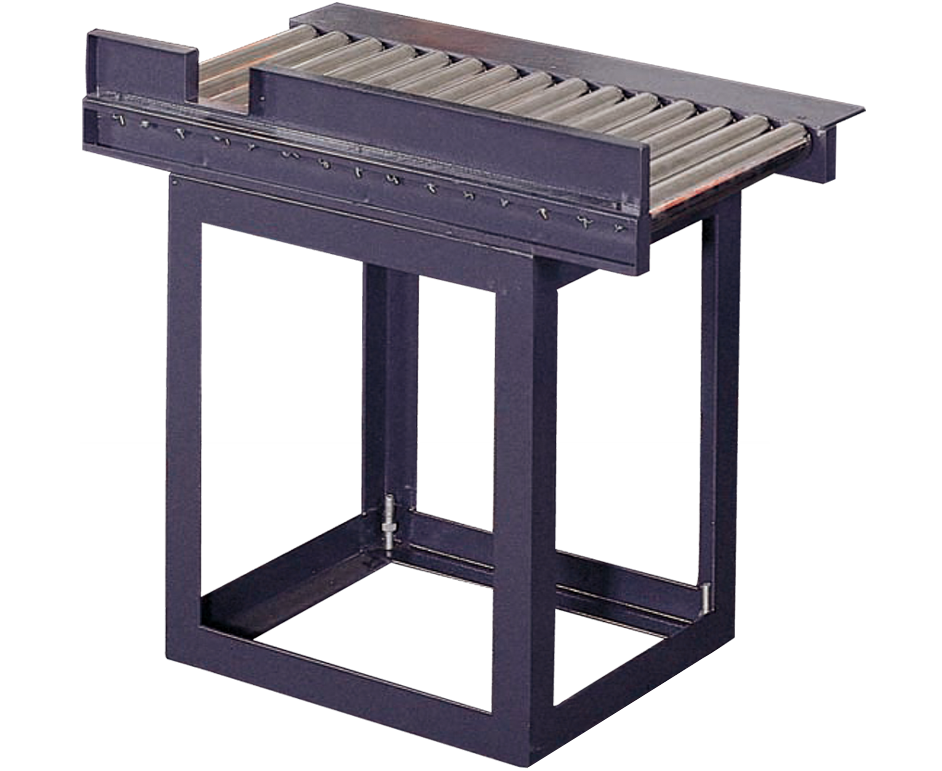

F-D05P1x2 Hand Feeding Table (Single Side Open Fence)
F-D05P2 Hand Feeding Table (Two Side Open Fence)

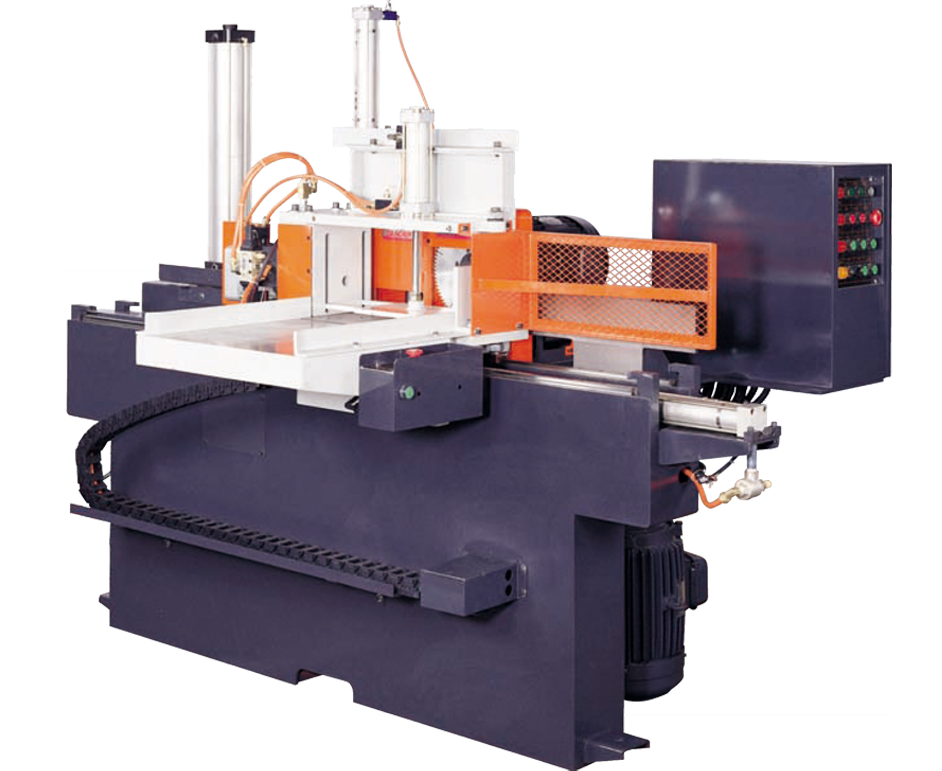

F-C58 Finger Shaper (Right End)

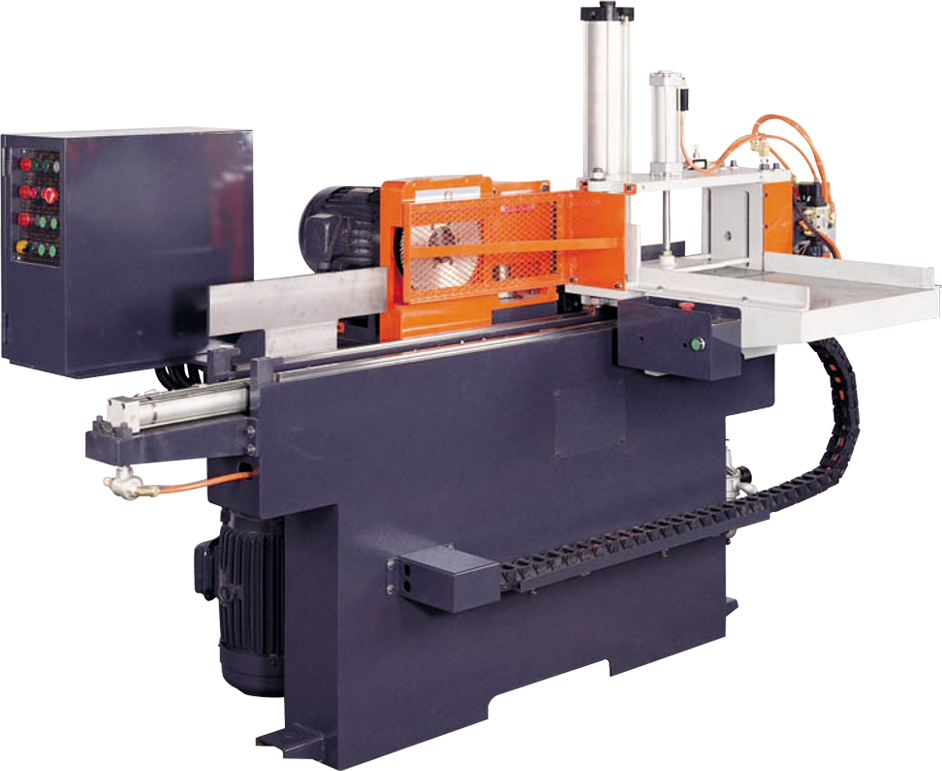

F-C57 Finger Shaper (Left End)

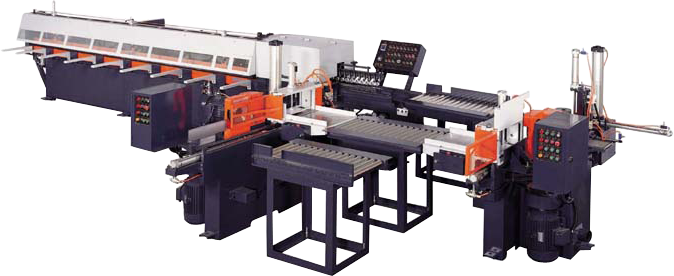

Spesifikasi FJ-17
| FINGER SHAPER | | |
|---|---|---|
| Max. available width working table | | |
| Range of workpiece length | | |
| Range of workpiece height | | |
| Table moving speed Air/Oil cylinder variable speed | | |
| Trim saw motor | | |
| Shaper cutter motor | | |
| Material of Cutter | | |
| Dia. of Cutter (in/out) | | |
| Main Sawblade | | |
| Auxiliary Sawblade | | |
| Dust hood outlet diameter | | |
| Machine dimensions (LxHxW) | | |
| Net weight | | |
| Noise Value | | |
| Packing dimensions (LxHxW) | | |
| Gross weight | | |
| Gluing | | |
| HAND FEEDING TABLE | | |
|---|---|---|
| Table width | | |
| Roller sizes | | |
| Machine height | | |
| Machine length | | |
| Machine width | | |
| Packing dimensions(F-D05P1+F-D05P2) | |
|
| ASSEMBLE PRESS | | |
|---|---|---|
| Available length of product | | |
| Available thickness of product | | |
| Available width of product | | |
| Feeding speed | | |
| Capacity length product | | |
| Max. assembly pressure | | |
| Feed drive motor | | |
| Hydraulic power unit | | |
| Cut-off saw | | |
| Dust hood outlet diameter | | |
| Machine dimensions ( LxHxW ) | | |
| Noise Value | | |
| Packing dimensions ( LxHxW ) | | |
