HORIZONTAL FINGER SHAPING CREATES BETTER OUTLOOK OF PRODUCT !

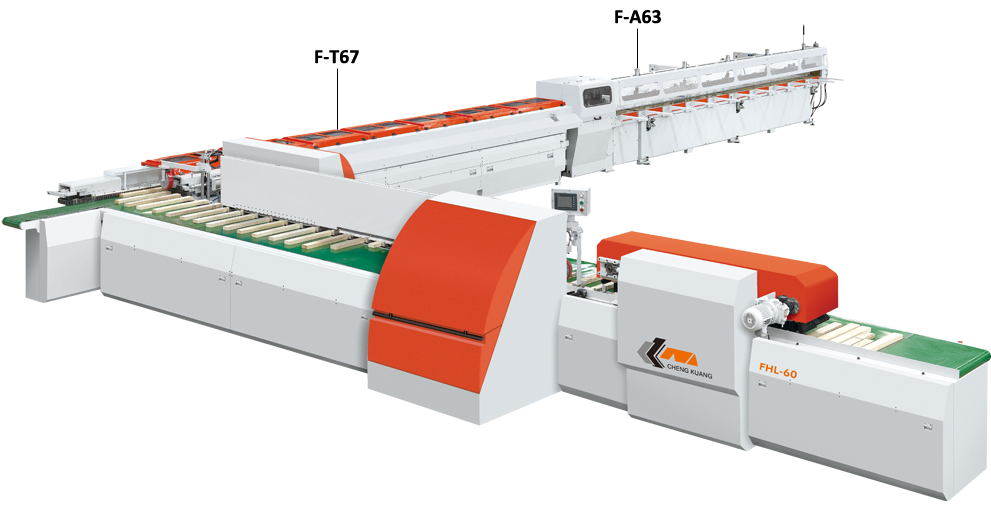

CKM’s new FHL-60 Horizontal Auto Finger Jointing Line is designed for horizontal finger shaping and jointing operations. Unlike the conventional vertical shaping, the FHL-60 will make the finger jointed products more beautiful outlook. It’s especially ideal for producing solid wood parquet with high production rate up to 90 pcs per minute when the production is equipped with an automatic wood arranging conveyor table.
Speed capacity 60 pcs/min
Dimensional Drawing of FHL-60
F-A63 Automatic Assemble Press
F-T67 Chain Drive Pre-press Assemble Stand
F-C61 Automatic Assemble Press
F-I31 Manual Feed Table or F-I32 Automatic Wood Arranging Conveyor Table
F-C61 Automatic Assemble Press
Wood Side Change Device
- After left finger shaping is performed, the side change device moves wood to the opposite side for shaping right finger.
- The device is equipped with a pressure sensor. In case wood is jammed, the machine stops automatically.
Combined R & L Shaping And Gluing in One Unit Max. 90 pcs/min. Throughput
- The specially designed combination of right/left shaping and gluing operations allows for continuous feed of wood, that makes maximum production rate of up to 90 pcs/min. possible.
Ultra Uniform Wood Pressure Device The wood pressure device at the cutting and left shaping mechanism consists of a plastic pressure plate and a cotton air hose, that ensures ultra uniform pressure for holding wood stably.
F-I31 Manual Feed Table
F-I32 Automatic Wood Arranging Conveyor Table (optional)

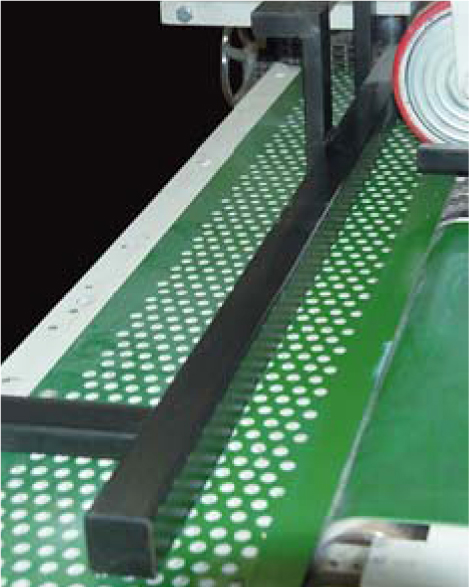

Powerful Suction Table
The suction table is designed to prevent wood from turning over before feeding into the pre-press assemble stand.
Manual Feed Table (Standard) The manual feed table allows the operator to place wood on the feed table.
Automatic Wood Arranging Conveyor Table (Optional)
- The automatic wood arranging conveyor table provides an automatic infeed of wood, that dramatically increases productivity.
- It is constructed of a conveyor table combined with brushes for auxiliary infeed of wood.
F-A63 Automatic Assemble Press
ASSEMBLE PRESS (Double Sides Pressing)
- The assemble press employs two hydraulic cylinder at front and rear, providing more powerful and faster jointing performance. This special design also assure extremely consistent jointing effect on the entire wood.
- The assemble press joints short stock to produce long board length up to 6800 mm.
- A synchronized 2-step process allows the back of the press to continue jointing and cutting to length while the front of the press is performing pressing and outfeed motions.
- Times of cut are controlled by limit switches, which permits for maximum 4 times of cut setting.
F-T67 Chain Drive Pre-press Assemble Stand
CHAIN DRIVE PRE-PRESS ASSEMBLY STAND
- The pre-press assemble stand employs chain feed, and provides 3 and 6 meters of length to choose from.
- This assemble stand provides pre-pressed board ready to be cut to length, and ensures accurate vertical and horizontal alignment of finger joint. The pre-press is fully synchronized with cut-to-length process.
Spesifikasi FHL-60
| F-C61 Horizontal Finger Shaper | |
|---|---|
| Range of workpiece length | 150 - 700 mm |
| Range of workpiece width | 40 - 160 mm |
| Range of workpiece height | 16 - 60 mm |
| Feeding speed | 60 - 120 pieces/min. |
| Trimming saw speed | 2800 rpm (50 hz) 3400 rpm (60 hz) |
| Finger cuter speed | 5000 rpm |
| Scoring saw speed | 2800 rpm (50 hz) 3400 rpm (60 hz) |
| Power Required | |
| Feed of chain motor | 7-1/2 HP |
| Trim saw motor (and scoring saw) | 10 HP x 2 |
| Shaper cutter motor | 20 HP x 2 |
| Scoring saw motor | 1 HP x 3 |
| Cutter spindle diameter | ø 70 mm |
| Dia of Cutter (in/out) | ø 210 mm |
| Dust hood outlet diameter | 6” × 2, 4” × 4 |
| Machine dimensions (L x H x W) | 6260 × 1510 × 2550 mm |
| F-T67 Chain Drive Pre-press Assembly Stand | 6M |
|---|---|
| Range of workpiece height | 16 - 60 mm |
| Range of workpiece width | 40 - 160 mm |
| Feeding speed | 140 m/mim. |
| Feed drive motor | 2 HP x 2 |
| For conveyor motor | 2 HP |
| Brush wheel drive motor ½ | ½ HP |
| Wheel drive motor | ½ HP |
| Overall (L x W x H) | 6710 x 1140 x 1110 mm |
| F-A63 Auto Assemble Press | 6M |
|---|---|
| Available length of product | 6200 mm |
| Available thickness of product | 16 - 60 mm |
| Available width of product | 40 - 160 mm |
| Feeding speed | 80 m/min. |
| Capacity length product | 5 - 7 pcs |
| Power Required | |
| Feed drive motor | 2 HP |
| Max. assembly pressure | 0 - 150 Kg/cm² |
| Hydraulic power unit | 5 HP |
| Cut-off saw | 5 HP |
| Dust hood outlet diameter | 4” (101.6 mm) |
| Machine dimensions (L x H x W) | 7400 × 1400 × 1380 mm |
| Noise Value | 84 db |
| F-I31 Manual Feeding Table | |
|---|---|
| Conveyor table width | 700 mm |
| Feed drive motor | 1 HP |
| Machine (L x W x H) | 2500 x 950 x 910 mm |
| F-I32 Automatic Wood Arranging Conveyor Table | |
|---|---|
| Conveyor table width | 700 mm |
| Feed drive motor | 1 HP |
| Brush wheel drive motor | 1 HP |
| Machine (L x W x H) | 2510 x 1500 x 1600 mm |
Specifications, dimensions and design characteristics are subject to change without previous notice.
