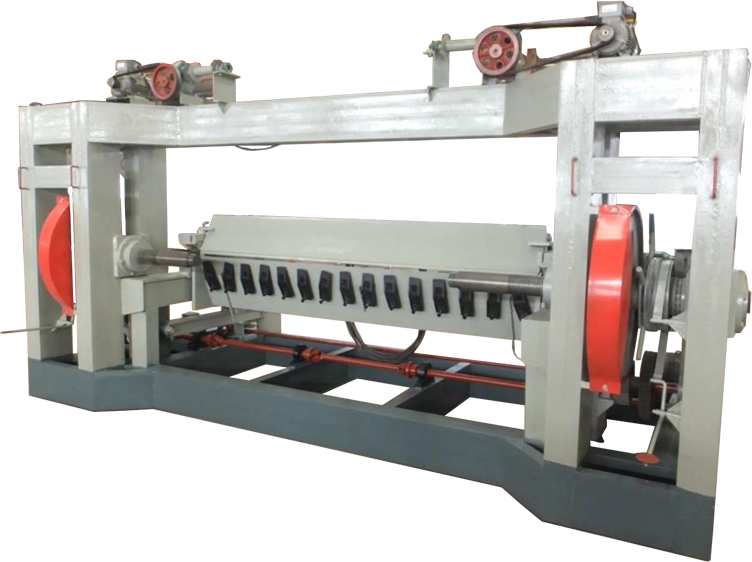

YKZY260-170
Spindle Veneer Peeling Lathe 8′ (For Debarker)
Specification Spindle Peeling Lathe 8'
| Model | YKZY260-170 |
|---|---|
| Max. loading diameter | 1700 mm |
| Log length | 1900 - 2560 mm |
| Veneer thickness (debarking) | 0.5 - 2.6 mm |
| Spindle speed | about 50m/min |
| Spindle diameter | 100 mm |
| Spindle diameter | 140 - 240 mm |
| Final log diameter | min. 120 mm |
| Main motor | 22 kW |
| Total motor | about 32 kW |
| Install dimension | 6000 x 2200 x 2300 mm |
| Weight | 7000 kg |
