CNC Wood Engraving Machine (with 4 Axis)
XZ-12025-8
Function

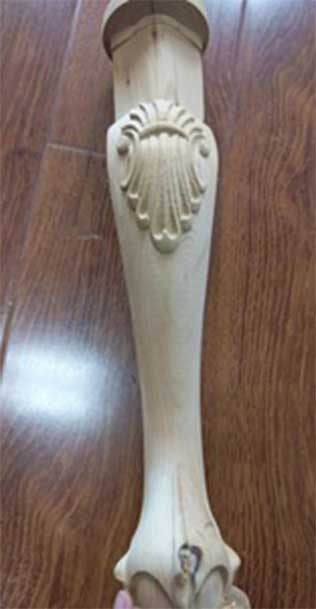

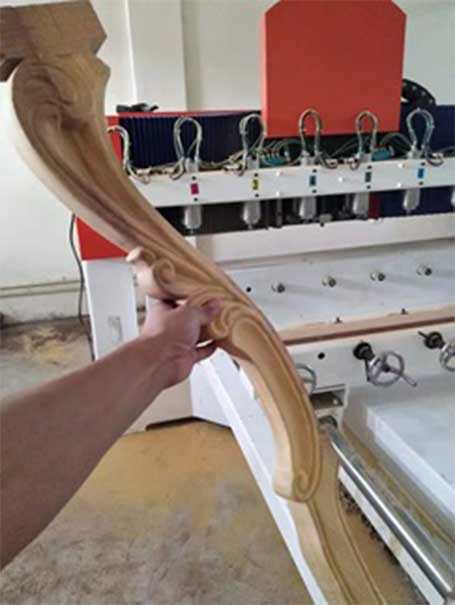

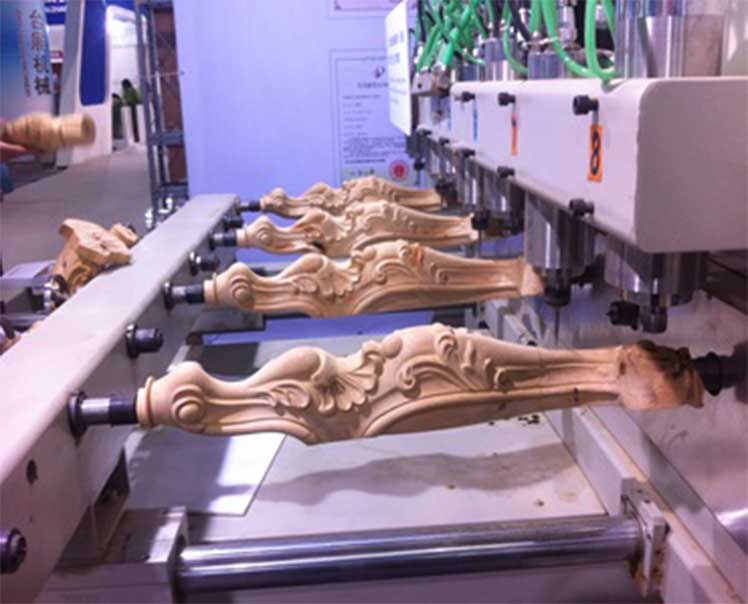

It can realize multi-function machining such as end milling, engraving, opening, edge line, and punching. Applicable to all furnitures like European and American style, simple European, modern style, light luxury style, new Chinese solid wood furniture. It can process dining tables and chairs, shaped legs, and special-shaped accessories on solid wood furniture.
Machine Features
1. High-precision, stable performance of the absolute value servo is adopted. Equipped with Richauto A 18 4-Axis operating system, stable performance, multi-function, and easy to operate.
2. The programming software is independently developed and easy to operate.
3. Heavy-duty steel structure with high manufacturing precision and stable performance.
4. 2.2 kw high-speed spindle, water-cooled, speed can up to 24000 rpm, and the cutting speed is high.
5. The max. speed of the X-axis and Y-axis can reach 20 m/min, high working efficiency.
6. Equipped with a central lubrication system to automatically lubricate critical moving parts.
Machine Description

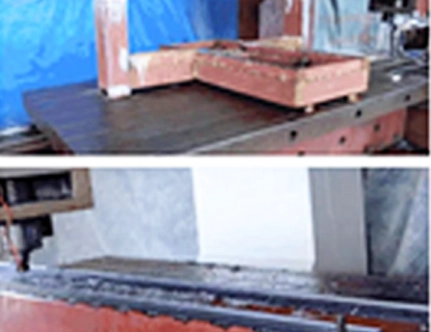

Machine Structure Processing
- The processing is carried out by the “MITSUBISHI” CNC. It is one-time processing and forming. The whole machine body is welded at one time.
- The metal heat treatment method of high temperature tempering ensures the machine tool will never be deformed.
Transmission
- Taiwan brand screw and guide rail, high precision and low wear, which is suitable for high-speed movement and greatly reduces the driving power required for the machine.
- XYZ-axis each have two guide rails, 35 mm, more stable.
- Easy to assemble and interchangeable.

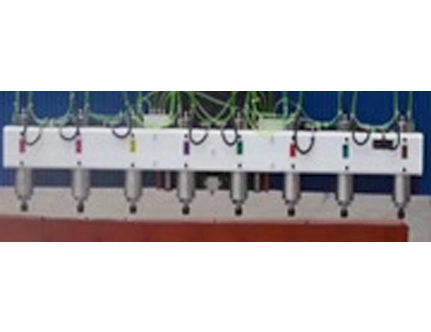

Spindle Beam Structure
Monolithic beam structure with built-in spindle, more stability and keeps higher machining accuracy

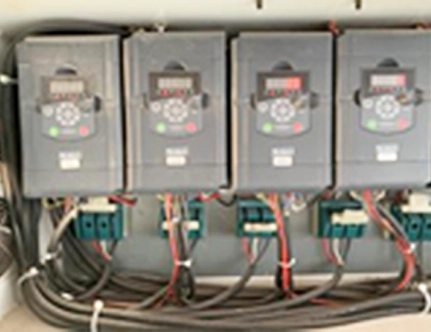

Inverter
- Standard with 8 pieces 5.5 kW independent frequency inverter, stable performance, do not affect each other.
- With protection of over-current, over-voltage and overload, energy saving.

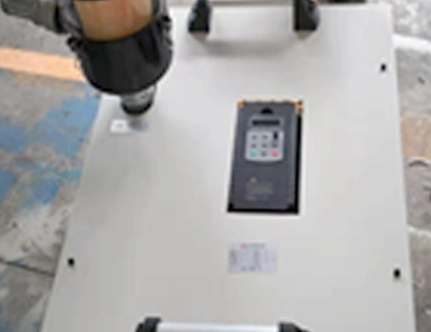

Inspection and Calibration
Modern high-tech quality testing equipment guarantees the quality of parts and machines.
Control System

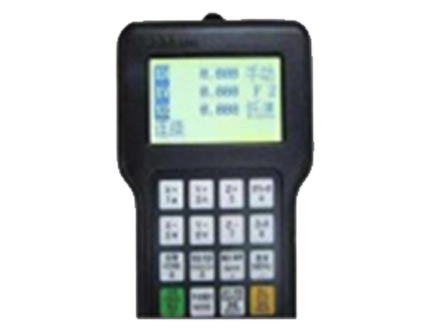

A 18 operating system, stable, multi-function and easy to operate
Software
- Equipped with a programming software, output NC code (G code), can do both 4 axis and 3 axis program.
- The programming software indepently developed and easy to operate

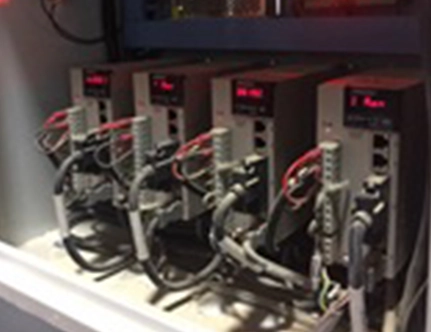

Servo Driver and Motor
Absolute value servo is adopted， high-precision & stable
- X-axis motor & driver power: 1 kW
- Y-axis motor & driver power: 1 kW
- Z-axis motor & driver power: 1 kW / with brake
- A-axis motor & driver power: 1 kW
Product Display
| MODEL | XZ-12025-8 (With 4 AXIS) |
|---|---|
| Workpiece Size | X: 1200 mm, Y: 250 mm, Z: 400 mm |
| Working Model | Absolute Value Servo |
| Spindle | Power: 2.2 Kw |
| Qty: 8 | |
| Model: Water Cooling | |
| Speed: 8000-24000 RPM | |
| Tools Qty: 16 | |
| Tool Clamp: Ø6-Ø12.7 mm (ER 20/ER 20) | |
| Repeated Position Precision | 0.05 mm |
| Max. Moving Speed | 20 m/min |
| Max. Working Speed | 15 m/min |
| Totally Weight | About 2500 Kg |
| Outer Size | 2700 X 2000 X 1900 mm |
| Max. Loading Weight | 200 Kg |
| Power Supply | 3 Phase AC 380 V + 15% 50 HZ |
