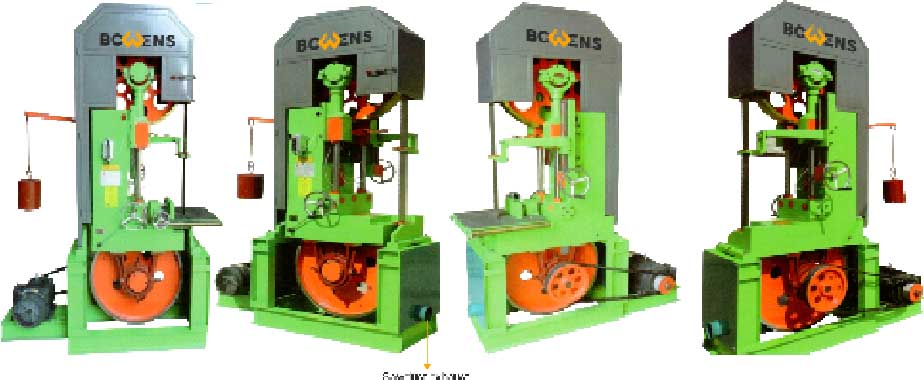

Vertical Band Saw with Table
Specification MJ328 / MJ329 / MJ3210
| MODEL | MJ328 | MJ329 | MJ3210 |
|---|---|---|---|
| Saw Wheel Diameter | 800 mm | 900 mm | 1000 mm |
| Saw Wheel Width | 110 mm | 120 mm | 120 mm |
| Saw Blade Length | 5700 mm | 6400 mm | 6800 mm |
| Main Motor Power | 15 kW | 18.5 kW | 22 kW |
| Saw Wheel & Clip Up/Down | Manual | Manual | Electric |
| Max. Sawing Wood (WxH) | 300x600 mm | 300x700 mm | 300x800 mm |
| Working Table Size | 600x600 mm | 600x600 mm | 600x600 mm |
| Weight | 1000 kg | 1300 kg | 1600 kg |

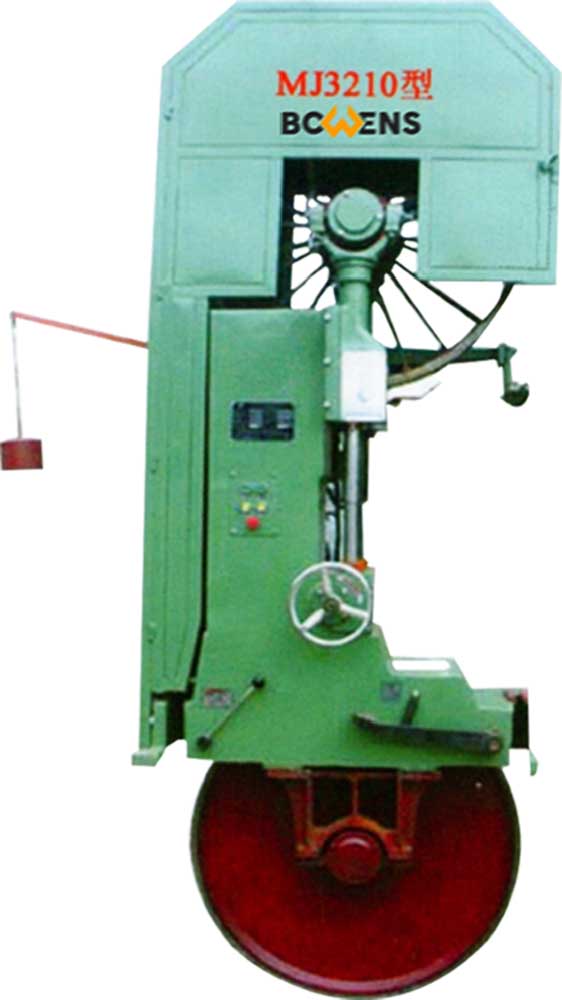

MJ3210 Vertical Band Sawmill
- Main Motor
- Iron Protective Cover
- Manual Lubrication Pump
- Cast Table
Specification MJ3210
| Model | MJ3210 |
|---|---|
| Saw Wheel Diameter | 1000 mm |
| Saw Wheel Width | 120 mm |
| Saw Wheel Length | 6800 mm |
| Main Motor Power | 22 kW |
| Saw Wheel & Clip Up / Down | Electric |
| Max. Sawing Wood (W x H) | 300 x 800 mm |
| Working Table Size | 600 x 600 mm |
| Weight | 1600 kg |
Vertical Band Sawmill with Carriage
MJ329-3000 / MJ329-5000 Vertical Band Sawmill
Specification MJ329-3000 / MJ329-5000
| Model | MJ329-3000 | MJ329-5000 |
|---|---|---|
| Saw Wheel Diameter | 900 mm | 900 mm |
| Max. Sawing Wood Diameter | 700 mm | 700 mm |
| Saw Blade L x W x T | 6400 x 125 x 1.05 mm | 6400 x 125 x 1.05 mm |
| Saw Clip and Wheel Up and Down | - | - |
| Main Motor Power | 18.5 kW | 18.5 kW |
| Carriage Length | 3000 mm | 5000 mm |
| Max. Sawing Wood Length | 4000 mm | 6000 mm |
| Wood Grasp Clip Quantity | Manual x 3 | Manual x 4 |
| Carriage Forward / Backward | Manual | Electric |
| Sawing Thickness Setting | Manual | Electric |
| Rail Length | 10 m | 18 m |
| Weight | 2000 kg | 2500 kg |
MJ3210-3000 / MJ-3210-5000 Vertical Band Sawmill
Specification MJ320-3000 / MJ3210-5000
| Model | MJ3210-3000 | MJ3210-5000 |
|---|---|---|
| Saw Wheel Diameter | 1000 mm | 1000 mm |
| Max. Sawing Wood Diameter | 800 mm | 800 mm |
| Saw Blade L x W x T | 6850 x 125 x 1,05 | 6850 x 125 x 1,05 |
| Saw Clip and Wheel Up and Down | Electric | Electric |
| Main Motor Power | 22 kW | 22 kW |
| Carriage Length | 3000 mm | 5000 mm |
| Max. Sawing Wood Length | 4000 mm | 6000 mm |
| Wood Grasp Clip Quantity | Manual x 3 | Electric x 4 |
| Carriage Forward / Backward | Electric | Frequenct |
| Sawing Thickness Setting | Electric | Touch Screen |
| Rail Length | 10 m | 18 m |
| Weight | 3000 kg | 4000 kg |

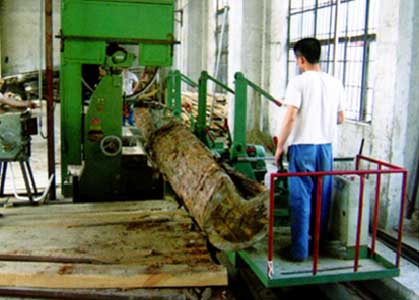

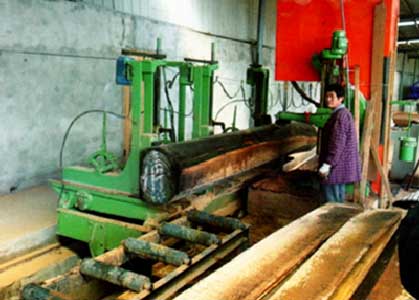

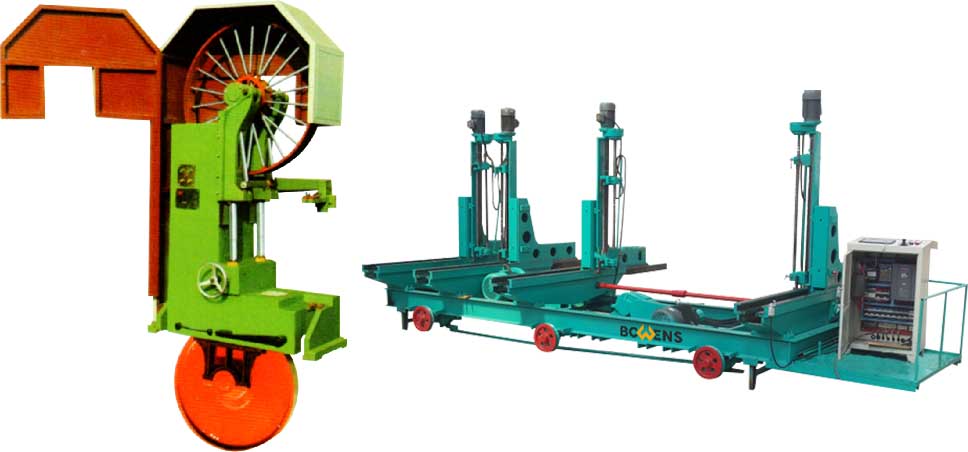

Vertical Band Sawmill with Log Carriage
MJ3310-3000 / MJ-3310-5000
Specification MJ3310-3000 / MJ3310-5000
| MODEL | MJ329-3000 | MJ329-5000 |
|---|---|---|
| Saw Wheel Diameter | 900 mm | 900 mm |
| Max. Sawing Wood Diameter | 700 mm | 700 mm |
| Saw Blade Length x Width x Thickness | 6400x125x1.05 mm | 6400x125x1.05 mm |
| Main Motor Power | 18.5 kW | 18.5 kW |
| Carriage Length | 3000 mm | 5000 mm |
| Max. Sawing Wood Length | 4000 mm | 6000 mm |
| Wood Grasp Clip Quantity | Manual x 3 | Manual x 4 |
| Carriage Forward/Backward | Manual | Electric |
| Sawing Thickness Setting | Manual | Electric |
| Rail Length | 10 m | 18 m |
| Weight | 2000 kg | 2500 kg |

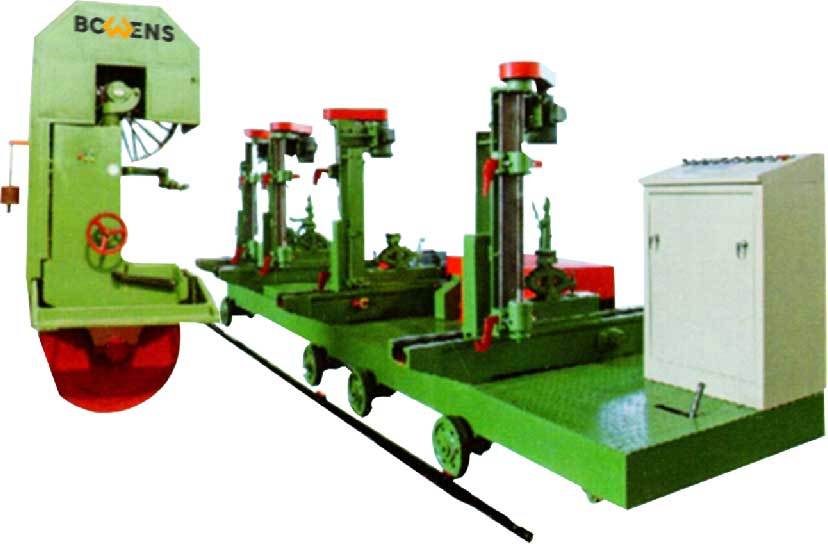

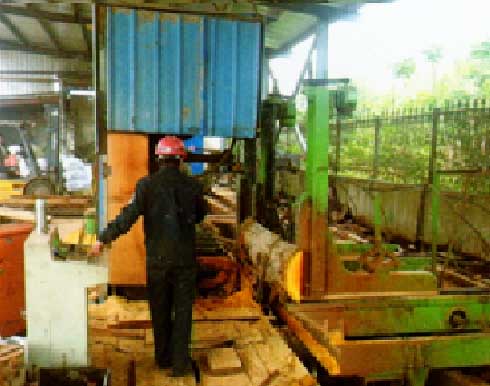

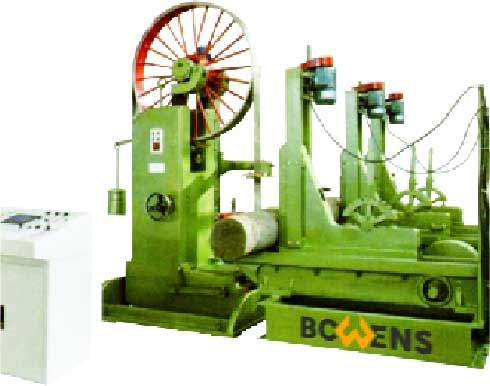

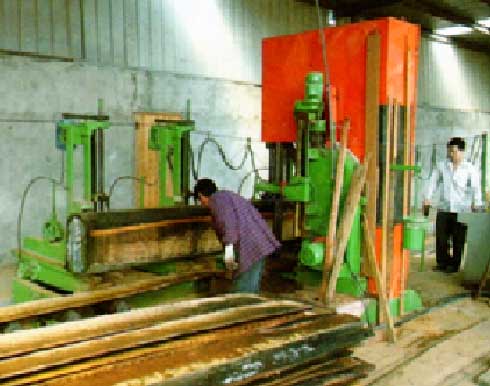

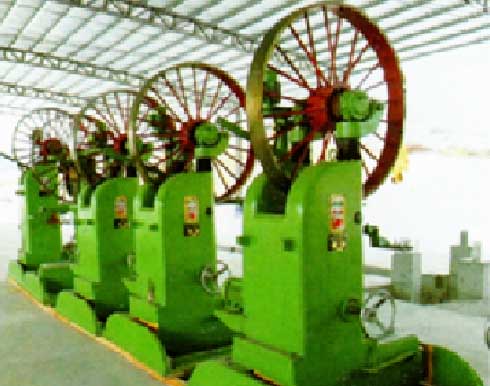

Vertical Band Sawmill with CNC Log Carriage
MJ3212-5000 / MJ-3212B-5000
MJ3212-5000 / MJ3212B-5000 Video
Kunjungi Youtube channel PT. Alpha Utama Mandiri untuk melihat berbagai macam update konten video mesin-mesin perkayuan terbaru.
Specification MJ3212-5000 / MJ3212B-5000
| MODEL | MJ3212-5000 | MJ3212B-5000 |
|---|---|---|
| Saw Wheel Diameter | 1250 mm | 1250 mm |
| Max. Sawing Wood Diameter | 1200 mm | 1500 mm |
| Saw Blade Length x Width x Thickness | 8600x150x1.25 mm | 9200x150x1.25 mm |
| Saw Clip and Wheel Up and Down | Electric | Electric |
| Main Motor Power | 37 kW | 45 kW |
| CNC Log Carriage Length | 5000 mm | 5000 mm |
| Max. Sawing Wood Length | 6000 mm | 6000 mm |
| Electric Wood Grasp Clip Quantity | 4 | 4 |
| Carriage Forward/Backward | Frequency | Frequency |
| Sawing Thickness Setting | Touch Screen | Touch Screen |
| Rail Length | 18 m | 18 m |
| Weight | 8000 kg | 12000 kg |
