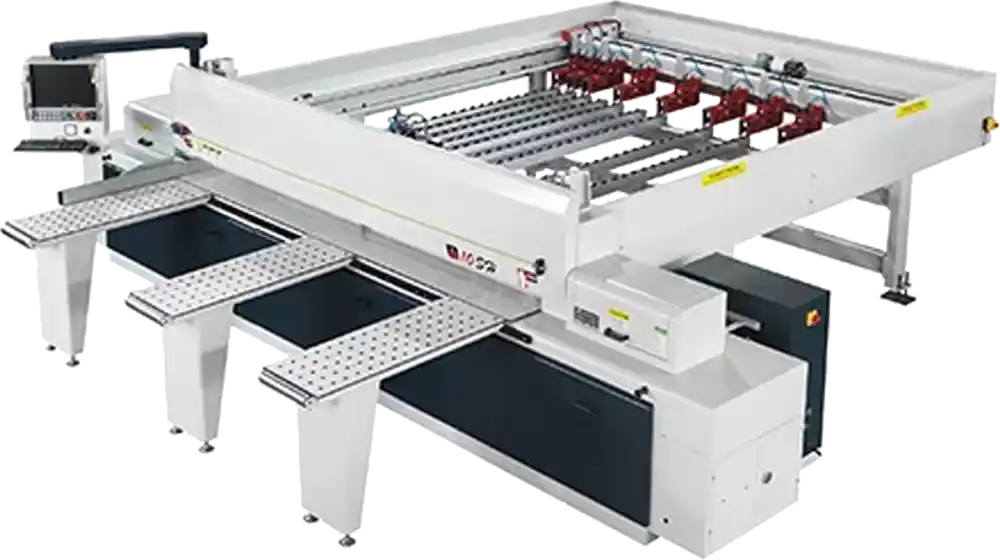

The new revolution SH series

Tai Chan SH series new revolution compt panel saw has been upgrading from generation of panel saw machines to create accuracy and stability machine, combined with PC base software operating makes easier, faster, and more convenience of machine functions.

Features of Computer Panel Saw

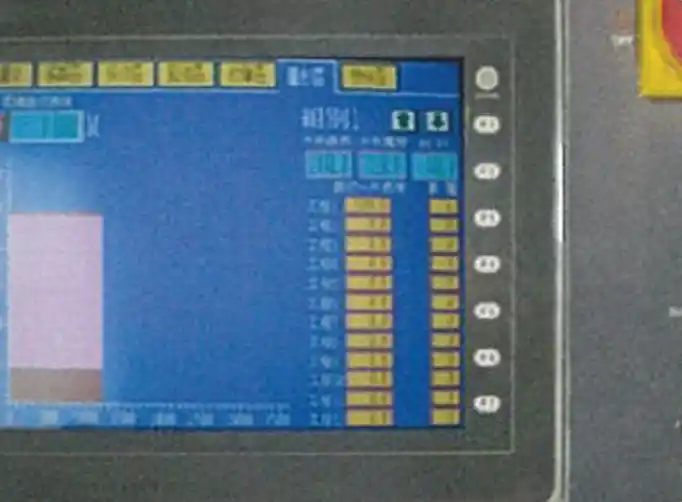

Japan-imported 10" TFT colorful touch screen

Japan Imported 8.4″ TFT Colorful Touch Screen

  • The computer features self diagnostic function
  • Chinese / english display conversion for increased flexibility
  • Size error can be compensated by the maching home position
Pressure Mechanism

German Reducer

  • German imported low backlash speed reducer
  • Japan imported 1 kW AC servo motor
  • Precision rack and pinion transmission reach to 70 m/min
Magnetic Scale

Main Saw Timming Belt

  • Main saw motor transmitted with powerful timming belt when met heavy duty cutting to avoid slip
Magnetic Scale

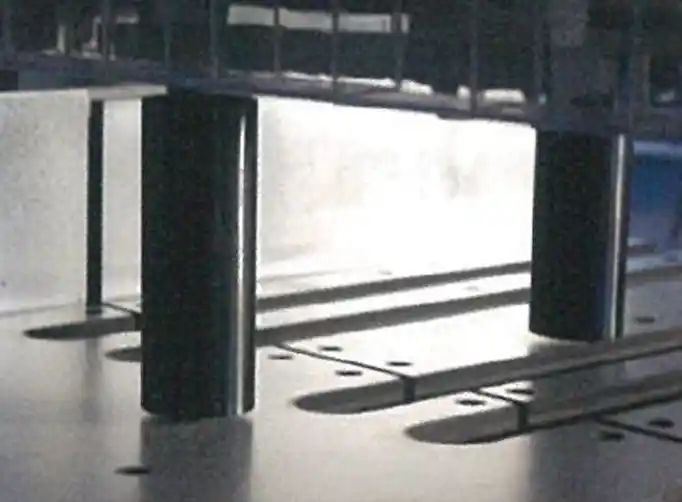

Pressure Mechanism

  • Double pressure beams
  • Tail cutting error is ensured
  • Allows for clamping cutting in case panel size is over 30 mm
Japan-imported 10" TFT colorful touch screen

Magnetic Scale

  • The machine employs Germany imported high torque speed reducer combined with the use of a magnetic scale and Japan Panasonic servo motor, that assure extra high positioning accuracy throught double comparisons
Pressure Mechanism

Side Aligner

  • The machine equipped with automatic side aligner and working by program setting, auto positioning, auto align
Magnetic Scale

Leverage Grippers

  • Strong and powerful leverage grippers
  • Changeable rubber head

Option Equipment of Computer Panel Saw

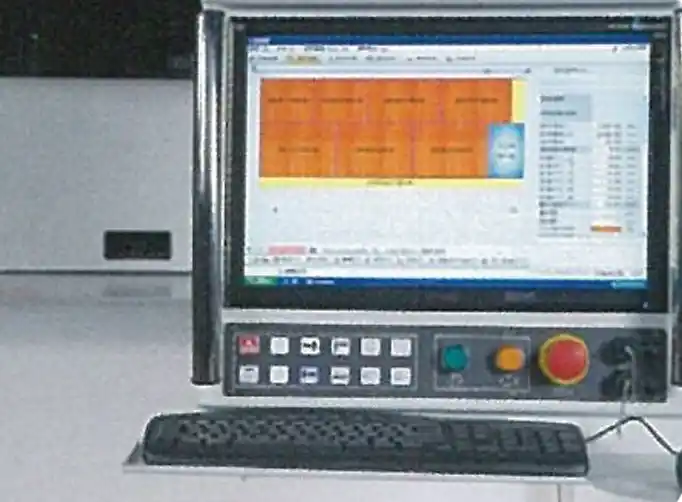

Bar Code Printer

PC Compoter Control

  • Optimizing cutting functions
  • Cutting condition simulation function
PC Computer Control

Barcode Printer

  • Allows for editing contents as desired

Specifications of Computer Panel Saw

TPS-SH Dimensional drawing

Standard Equipment

  • Main sawblade :
    80 T, ⌀ 405 mm, 4.0 mm thick
  • Scoring sawblade :
    40 T, ⌀ 180 mm, 3.9 – 5.2 mm thick, adjustable
  • Floating tables
  • Piano key type dust guard
SN
A
B
C
8SH
5215
5370
3010
10SH
5815
5970
3610
12SH
6415
6570
4210
Specification TPS-SH - Computer Panel Saw
Model
8SH
10SH
12SH
CapacityMaximum cutting length
2600 mm
3200 mm
3800 mm
Maximum cutting depth
Max. 100 mm
Maximum cutting width
2500 mm
3200 mm
3800 mm
Main SawbladeMain blade diameter
Max. Ø405 mm
Arbor diameter
Ø 1" or 30 mm
Main blade speed
3600 (50 Hz) / 4300 (60 Hz)
Scoring SawbladeScoring blade diameter
Ø180 mm
Arbor diameter
Ø 1" or 30 mm
Main blade speed
6800 (50 Hz) / 8200 (60 Hz)
Saw CarriageFeed speed
5 - 50 m/min
Return speed
70 m/min
MotorMain sawblade motor
15 HP (18HP Option)
Saw carriage drive motor
2 HP (inverter)
High pressure blower motor
3 HP
Pusher drive motor
1kw (AC Servo motor)
OthersNumber of grippers
7
8
9
Floating tables
3
3
4
Pusher pulling speed
5 - 70 m/min
Pusher pushing speed
5 - 60 m/min
Working air pressure
5 - 6 kg/cm ²
Table height from floor
870 mm
Net weight/ Groos weight
4100 / 4700 kg
4500 / 5100 kg
4700 / 5300 kg
Machine dimensions (LxWxH) (mm)
211" x 220" x 60"
232" x 224" x 60"
256" x 268" x 60"

Dimension and specifications shown in this catalogue are subject to change without prior notice
