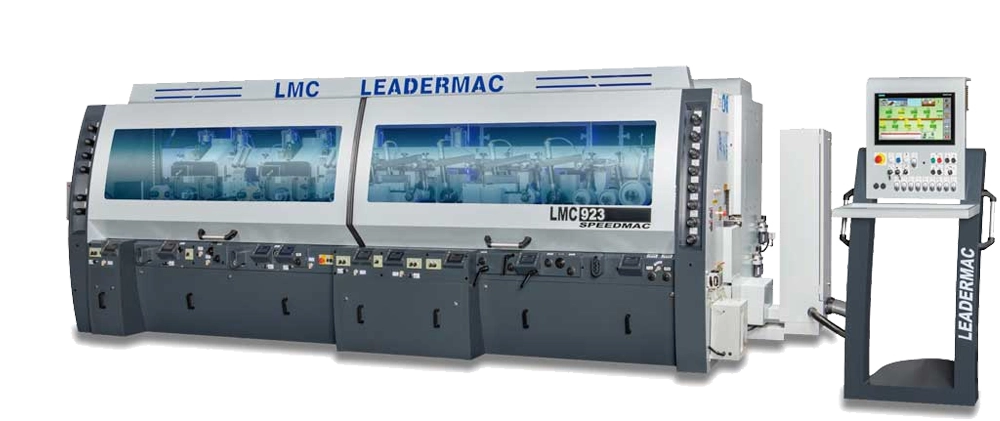

Speedmac Series – 4-Side Moulder
The power and precision for world-class production quality
With Leadermac speedmac series 4-side moulder, you get benefit of shorter cutting time, considerable time saving, high accuracy, easier operation and more advantages than with the competition.
Designed with high production in mind
The speedmac series is designed for high-capacity, highly accurate operations for large and small batch production runs. The heavy-duty spindles are dynamically balanced and run on premium housing bearings, for superior workpiece finish quality.

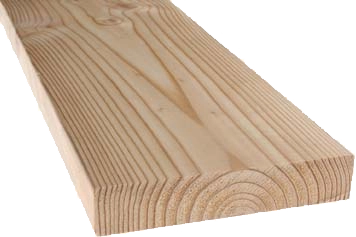

The speedmac provides perfect surface quality, eliminating the need for sanding on planed and profiled surface. Width and thickness setting controller is supplied as standard, lowering downtime and increasing efficiency.
Choice of Machine Models – from Speedmac LMC-523 (5-spindle) to LMC-1023 (10-spindle)
World Class Moulding Solutions
Outstanding Features:
- All moulders awarded with CE certification
- Faster feed speeds of up to 60 meters a minute are standard
- Programmable controller provides convenienet thickness and width of cut setting
- Adjusment of each spindle can be easily performed using the front adjustment level
- Exclusive, separate adjustment of the vertical spindles and the feeding table allows the feeding table to be positioned extremely close to the cutterhead to provide added cutting stability

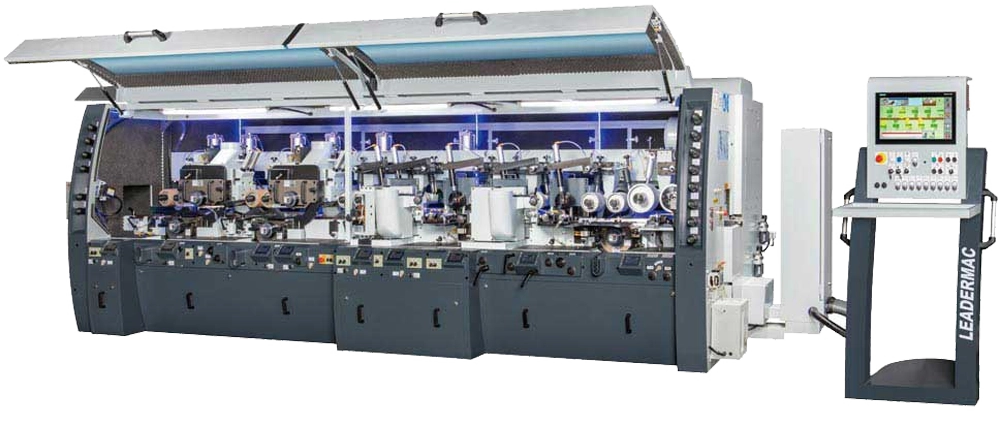

- The full safety enclosure serves as a chip guard and helps to reduce noise
- Each spindle is driven by and individual motor for powerful moulding and easy control
- Automatic libricator is provided to supply oil to the feeding table
- One-piece, cast iron or steel welding machine frame is specially heat treated for maximum stability and rigidity by standard configuration
- Mechanical digital readouts for the pressure elements of top spindle
- Divided pressure bar in front of top spindle
- Motorized vertical adjustment of the top spindle including digital readouts
- Housing bearings for horizontal spindle
- Straight profile jointer procides accurate operation with high quality finish
- The powered outfeed rollers provide stable and smooth workpiece outfeed even for especially thin or smooth materials. The rollers remain perfectly parallel even after long-term use
- Multiple pneumatic pressure of the feed rollers can be easily set to provide an outstanding feeding effect
- Table surface is hard-chrome plated for maximum wear resistance
- All manually adjusted turning parts are housed in dry bearings for oil-free lubrication

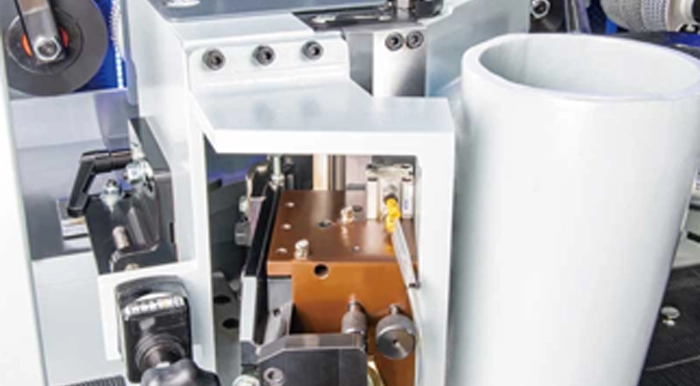

Convenient Spindle Adjustment
Adjustment of all spindles is easily done from the front. The adjustment point are all at the same heigh, for more convenient and faster adjustment
Straight Knife Jointer and Automatic Profile Jointer (Optional)
The remote-controlled straight knife jointer and automatic profile jointers provide accurate operation with high repeatability. They help ensure a long service life and super surface quality. (Optional)

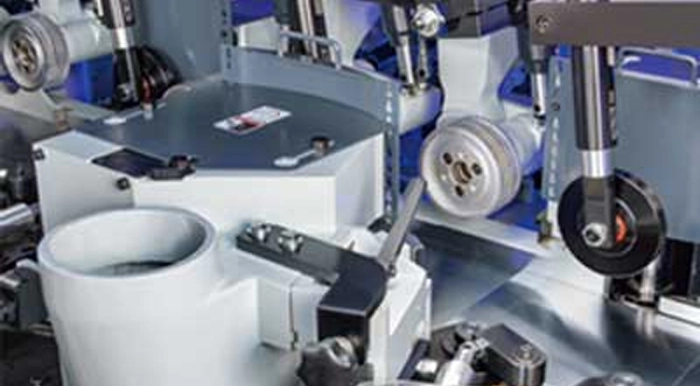

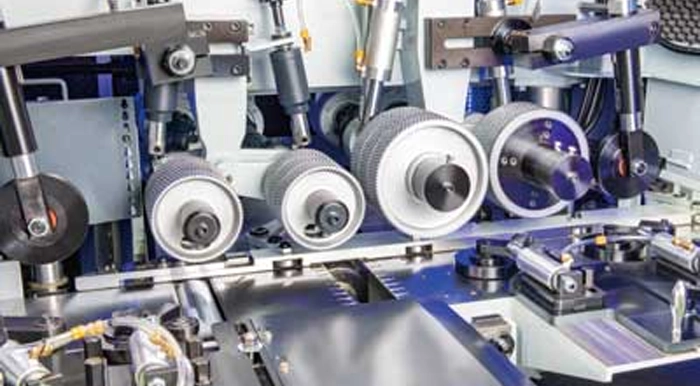

Feed System
The smooth inital feeding of the stock is achieved by means of the independently powered infeed rollers

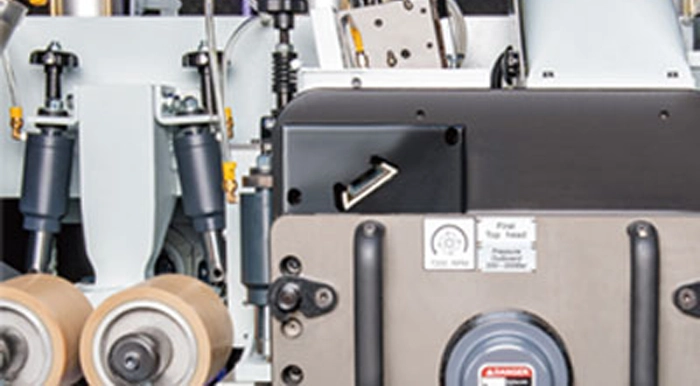

Powerfull Pneumatic Pushing Roller
Adjustable air pressure powerful feeding idle roller provides more stable and faster feeding
Side Pressure Wheels for Left Spindle
The adjustable side pressure wheels are pneumatically operated to ensure consistent holding pressure.
Clamping System (Optional)
Utilizing housing bearings, the reliable hydro-clamping system ensures consistent quality across the entire workpiece. The unit performs admirably even during high-speed continuous operation. The spindles can be adjusted axially even if the housing bearings are locked

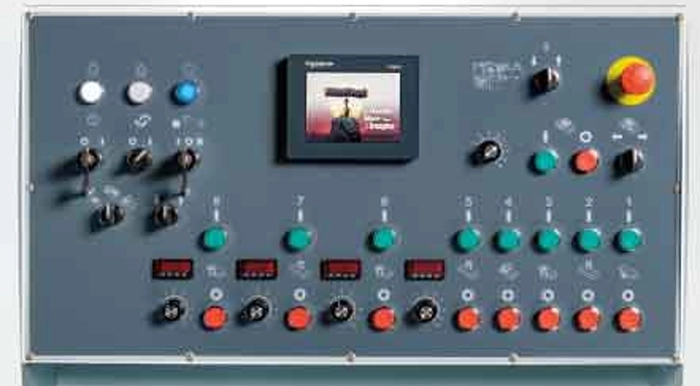

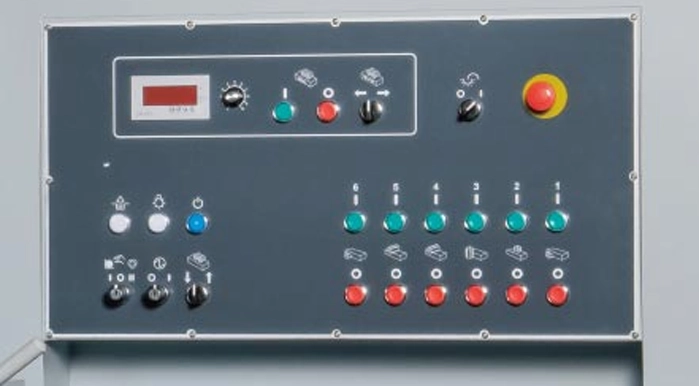

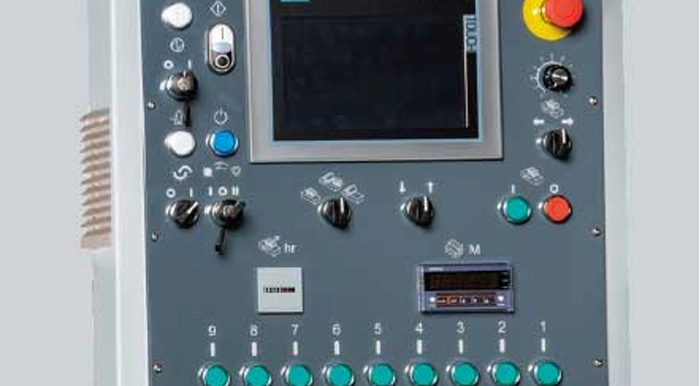

Controller
The speed is VFD inverter controlled, and all electrical components meet CE, UL & CSA standards
Easyset Controller (Optional)
Touch Screen Control
- 5.7″ HMI (memory 200 sets)
- Automatic machine quick setup
- Easy and powerful functionality
- Workpiece settings on left and top axes as desired
- The width and thickness setting can be easily set using the programmable controller
- The desired values for thickness are displayed on HMI
Smartset Controller (Optional)
Touch Screen Control
- 9″ HMI (memory 500 sets)
- Automatic machine quick setup
- Easy and powerful functionality
- Setworks on any axis as desired
- The motorized Axes: derived by inverter, transmitted by ball screw, feedback by encoder
- The desired values for radial and axial are displayed on HMI

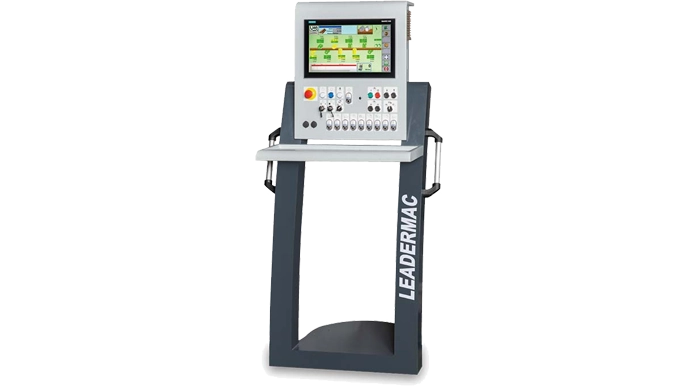

Proset Controller (Optional)
- 19″ panel PC
- Product library (1.000 sets)
- Knife library (10.000 sets)
- Automatic machine quick setup
- Easy and powerful functionality
- Workpiece settings on any axis as desired
- The width and thickness settings can be easily set using the programmable controller
- All axes are equipped with ballscrews and rotary encoders for feedback position control, providing high positioning accuraacy and better cutting quality
- The desired values for width and thickness can be conveniently pre-set and are displayed on an HMI

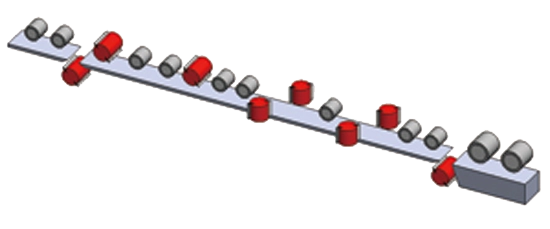

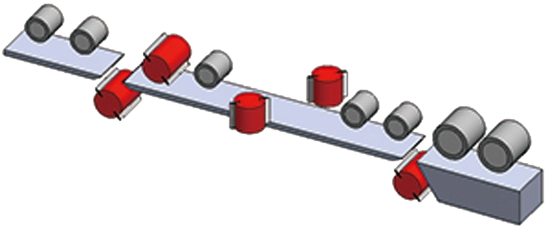

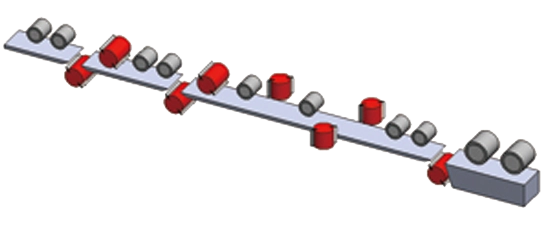

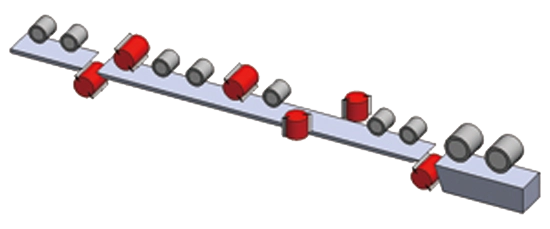

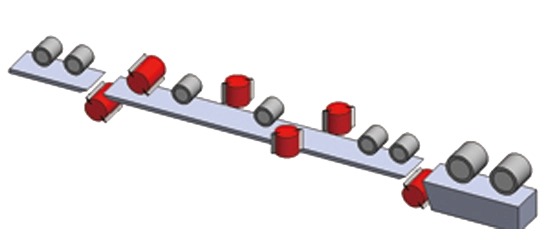

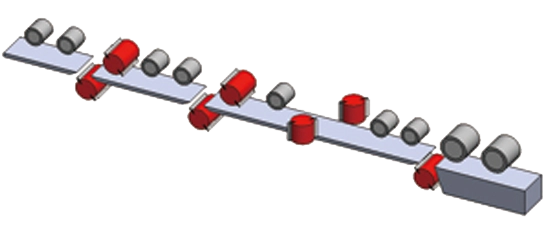

A Wide Range of Spindle Configurations
LMC – 523
5 Spindle
LMC – 623
6 Spindle
LMC – 3V – 623
6 Spindle
LMC – 723
7 Spindle
LMC – 3V – 723
7 Spindle
LMC – 823
8 Spindle
LMC – 3V – 823
8 Spindle
LMC – 923
9 Spindle
Specification Speedmac Series - 4 Sided Moulder
| Model | Standard Parameter | Optional Specs |
|---|---|---|
| Number of heads / spindles, min-max | 2 to 11 | Any head configuration - available |
| Working width (with a tool cutting circle of 163 mm) | 20-230 mm | to 310 mm, 330 mm |
| Working thickness (with a tool cutting circle of 163 mm) | 10-150 mm | to 6 mm to 200 mm |
| Basic spindle motor capacity - Wye-Delta (soft starts) on all motors | 11 / 12 kW (15 HP) | to 37.5 kW / 50 HP |
| Spindle diameter | 50 mm | 1 13 /16" / 2 1/8" |
| Spindle speeds | 6000 rpm | 7200 / 8000 rpm |
| Tools cutting circle, first bottom spindle, min-max | 125-200 mm | |
| Tools cutting circle, vertical spindles, min-max | 140-250 mm | |
| Tool cutting circle, horizontal spindles, min-max | 140-250 mm | |
| Feed motor | 11 kW / 15 HP / inverter | 15 / 18.5 kW (20 / 25 HP / inverter) |
| Feed speed, infinitely variable by frequency (VFD) driven | 6-60 m/min (20/200 fpm) | 9-90 m/min (30-300 fpm) |
| Top infeed rolls - diameter | 205.36 mm | |
| Other top feed rolls - diameter | 140 mm | |
| Top feed roll width - multiple rolls stacked on each top roll shaft | 50 mm / roll | |
| Bottom feed roll width | Full width | |
| Pneumatic pressure for feed rollers, max | 6 bar (85 psi) | |
| Adjustment range for infeed table (bottom head cut) and edge jointing fence | 10 mm | |
| Adjustment range of vertical spindles (axial) | 80 mm | |
| Adjustment of range of horizontal spindles (axial) | 40 mm | |
| Length of the infeed / straightening table | 0.8 m | 1.4 / 2 / 2.5 / 3 M |
| Diameter of dust hoods for vertical and horizontal spindles | ⌀ 175 mm |
| Standard Configuration | Standard Machine | Optional Specs |
|---|---|---|
| Digital readouts on all axis of all heads | Standard | |
| Digital readouts for the chip breaker shoes and pressure shoes | Standard | |
| Full sound and safety enclosure with strobe free lighting | Standard | |
| Motorized vertical adjustment of feed beam | Standard | |
| Multiple lateral pneumatic pressure roller opposite first right spindle | Standard | |
| Chainless extra HD cardan shaft feed system | Standard |
| Optional Equipment | |
|---|---|
| Straight and/or profile jointers any heads | Grooved bed for running very short material |
| Electronic rotary encoder digital readouts in lieu of mechanical counters | Split pressure shoes |
| Extra HD feedworks; bottom top head configuration for rough material feeding | Opposed side heads |
| Tilting side heads | Universal spindle, tool cutting circle min 125 mm, max 200 mm |
| Tilting top beam, tilting feed, tilting feedworks, tilting top head chipbreaker ass'y | Rip saw section with up to 56 kW (75 HP) |
| Tilting pressure plates | Left opposite hand feed |
| Inverter motor cutterhead brakes |
