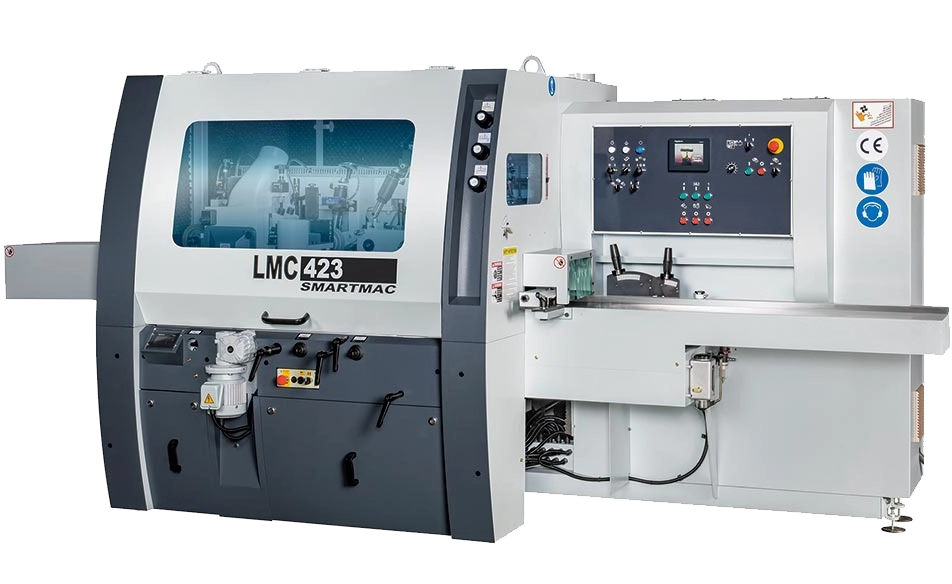

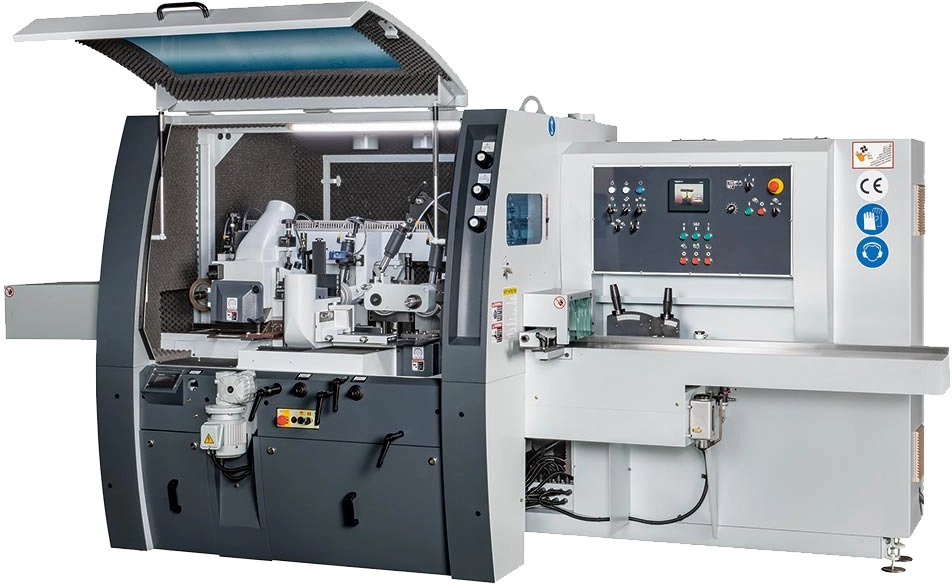

Smartmac Series – 4 Side Moulder
The Leadermac Smartmac series 4-side moulder is designed to perform wood moulding more efficiently by optimizing the machine capacity. Its cast iron machine frame provides high rigidity and high stability for years of dependable deformation-free operation. The smartmac series also features advanced design, making it unique in the industry.
Integrating Many Fine Features & the latest in technology you’ve come to expect many high quality features add more value to your production with fine features to give you the winning edge in 4 side moulding.
Choice of Machine Models – from LMC-423S (4-Spindle) to LMC-523S (5-Spindle)
Outstanding Features:
- All moulders awarded CE certification
- 1-pieces, cast iron machine frame is specially heat treated for maximum stability and rigidity as standard configuration
- Faste feed speeds of up to 24 meters a minum (80 fpm) are standard.
- Adjustment of each spindle except last bottom spindle can be easily performed by using the front adjustment levers.
- Each spindle is driven by an individual motor for powerful drilling and easy control.
- Pneumatic pressure of the top feed rolls can be easily set to provide an outstanding feeding effect
- Table surface are hard-chrome plated for maximum wear resistance
- All manually adjusted turning parts are housed in permanent grease lubricated bearings for oil-free lubrication.
- The full safety enclosure serves as a chip and piece guard, helps to reduce noise.
Superior Performance! Increased Productivity!

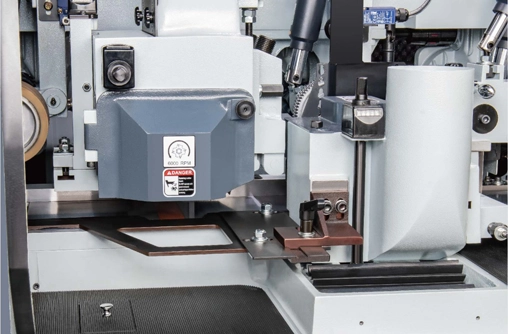

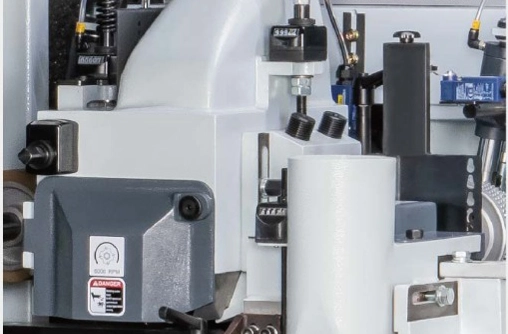

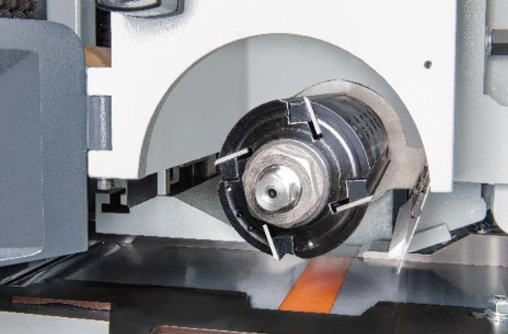

Adjustable Cutterhead Guard
The cutterhead guard for the vertical spindle can be adjusted to suit various cutterhead sizes.
A graduated scale is provided to indicate the guard adjustment amount

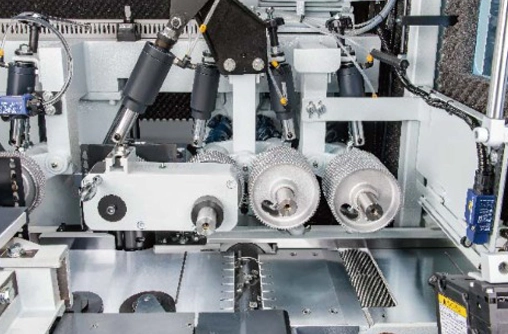

Powered Infeed Bottom Roller
Powered infeed bottom roller (actually more powered top & bottom feed rolls than almost all of our competition). The smooth initial feeding of the stock is achieved by means of the independently powered infeed rollers.

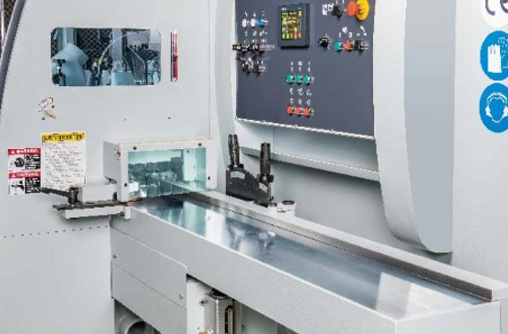

Feed Table
The entire cast iron – chromed infeed table is normalization heat treated for maximum stability. Infeed table adjustment is quickly accomplished by means of a quick-setting levers.

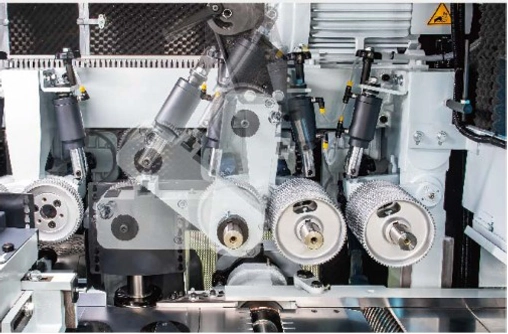

Liftable Auxiliary Feed Roller
The short stock powered feed mechanism provides added smoothness for short workpiece feeding. The auxiliary feed rollers are power driven for effortless feeding effect, and are quick-liftable for convenient cutterhead change or setup
Side Pressure Wheels For Third Spindles
Provides positive feed effect for short and narrow stock
Versatile Last Spindle
The last top horizontal spindle can be fitted with planing knives or multiple sawblades

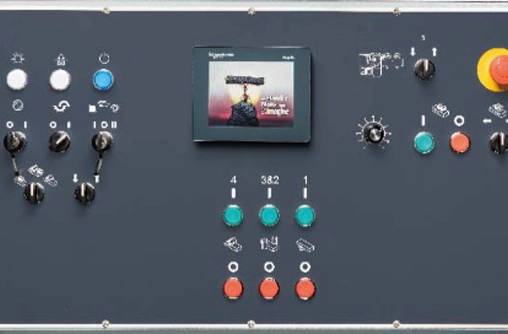

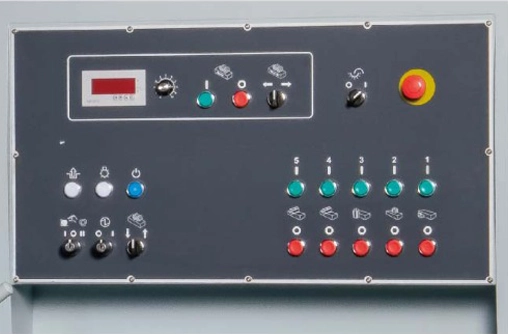

Controller
The speed is VFD inverter controlled, and all electrical components meet CE, UL & CSA standards
Universal Spindle (Optional)
The universal spindle can be operated horizontally, vertically or at any angle in between. Powered universal spindle horizontal elevation provides quick set-ups.
Easyset Controller (Optional)
Touch Screen Control
- 5.7″ HMI (memory 200 sets)
- Automatic machine quick setup
- Easy and powerfull functionality
- Workpiece settings on left and top axes as desired
- The width and thickness setting can be easily set using the programmable controller
- The desired values for thickness are displayed on HMI
LED Display (Optional)
The desired values for thickness are display on the LED readout
Powered Spindle Adjustment (Optional)
The left vertical spindle can be power adjusted for quick set-ups
A Wide Range of Spindle Configurations
LMC – 423
4 Spindle
LMC – 523
5 Spindle
LMC – 523
5 Spindle (with universal spindle)
Specification Smartmac Series - 4 Sided Moulder
| Model | Standard Machine | Optional Specs |
|---|---|---|
| Working width (at a tool cutting circle of 140 mm) | 15 - 230 mm (0.59" - 9.1") | |
| Working thickness (at a tool cutting circle of 163 mm) | 10 - 125 mm (0.39" - 4.9") | |
| Number of spindles, min-max | 4 or 5 spindles | Universal - optional |
| Feed motor | 5 HP / inverter | |
| Feed speed, infinitely variable | 6 - 24 m/min (19.5 - 80 fpm) | |
| Base / motor power for 1 st bottom spindle | to 7.5 kW / 10 HP - 11 kW / 15 HP | |
| Base / motor power per spindle except 1st bottom spindle | 7.5 kW / 10 HP | to 15 HP |
| Spindle speed | 6000 rpm | 7200 rpm |
| Spindle diameter | 40 mm (1.6") | 1 1/2", 1 13/16" |
| Tool cutting circle, first bottom spindle, min-max | 125 - 160 mm (4.9" - 6.3") | |
| Tool cutting circle, vertical spindles, left, min-max | 112 - 180 mm (4.4" - 7.1") | |
| Tool cutting circle, vertical spindles, right, min-max | 112 - 180 mm (4.4" - 7.1") | |
| Tool cutting circle, horizontal spindles, top, min-max | 112 - 200 mm (4.4" - 8") | |
| Tool cutting circle, horizontal spindles, bottom, min-max | 112 - 200 mm (4.4" - 8") | |
| Feed roll - diameter | 140 mm (5.5") | |
| Feed roll - width - top rolls | 50 mm (2") each | |
| Feed roll - width - bottom rolls | Full Width | |
| Pneumatic / air pressure for feed rolls, max | 6 bar (85 psi) | |
| Adjustment range for infeed table and edge-jointing fence | 10 mm (0.4") | |
| Adjustment range of vertical spindles (axial) | 20 mm (0.8") | |
| Adjusment range of horizontal spindles (axial) | 20 mm (0.8") | |
| Length of the straightening table | 2 M (78.7") | 2.5 M (98") & 3M (120") |
| Diameter of dust hood for vertical spindle | ⌀125 mm (5") | |
| Diameter of dust hood for horizontal spindle | ⌀125 mm (5") |
| Standard Configuration | Standard Machine | Optional Specs |
|---|---|---|
| Sectional top head chipbreaker | Spring tensioned - standard | Pneumatic |
| Chainless HD cardan shaft feed system | Standard | |
| Mechanical digital readouts for all head axis, top head chip breakers & pressure shoe | Standard | |
| Full sound and safety enclosure with srobless lighting | Standard | |
| Motorized vertical adjustment of feed beam | Standard | |
| Lateral pressure dual rolls opposite first right spindle | Standard | Pneumatic |
| Optional Equipment | |
|---|---|
| Program system provides faster setting | CE specifications |
| Setting and measuring devices | Universal spindle, tool cutting circle min 112mm, max 200mm |
| Increased horsepower | Auto-timber lubrication for feeding table |
