Press Dryer Vertical Side

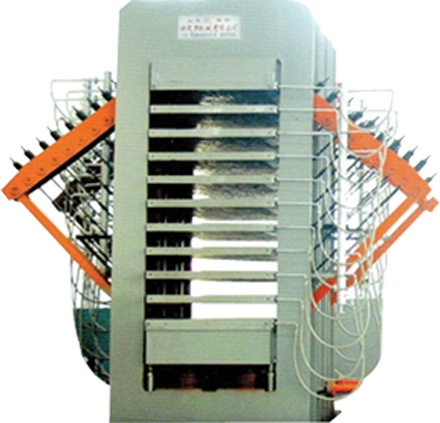

Press Dryer Vertical Side GBY214 X 8/100-12IID / GBY214 X 8/100-12IID
With Grooving Table, Simultaneous Closing, 12 Layers Platen Thickness : 42mm

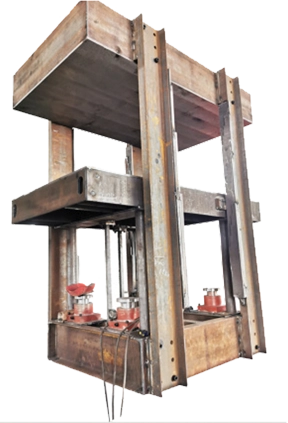

Press Dryer Vertical Side GBY214 X 8/100-15IID / GBY214 X 8/100-15IID
With Grooving Table, Simultaneous Closing, 15 Layers Platen Thickness : 42mm
Specification Press Dryer Vertical Side
| Model | GBY214x8/100-12IID | GBY214x8/100-15IID |
|---|---|---|
| Nominal gross pressure | 1000 KN | 1000 KN |
| Direction of feeding plate | Vertical | Vertical |
| Layer counting | 12 layers | 15 layers |
| Distance between hot platens | 70 mm | 70 mm |
| Number of hot platens | 13 pcs | 16 pcs |
| Dimensions of hot pplatens | 2600 x 1440 x 42 mm | 2700 x 1370 x 42 (20x20) |
| Numbers of cylinder | 4 pcs | 4 pcs |
| Diameter of each cylinder | ⌀120 mm | ⌀120 mm |
| Stroke of each cylinder | 850 mm | 1050 mm |
| Pressurization | <16 Mpa | <16 Mpa |
| Empty closing time | 12 S | 14 S |
| Low pressure pump flowing | about 280 L/min | about 144 L/min |
| Power | 15 kW - 4P | 5.5 kW - 4P |
| Pump | automatic | automatic |
| Size (L x W x H) | 3100 x 1370 x 2200 mm | 3400 - 1370 x 3300 mm |
| Weight | about 22000 kg | about 25000 kg |
