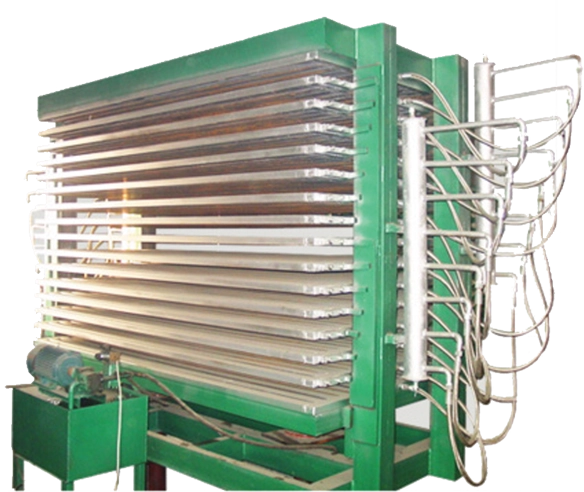

Press Dryer Square Tube 15 Layers
(Hollow Platens)
Specification Press Dryer Square Tube 15 Layers (Hollow Platens)
| Model | Press Dryer Square Tube 15 Layers (Hollow Platens) |
|---|---|
| Pressure | 100T |
| Size of single square tube | 40 x 60 x 4 mm |
| Cylinder working stroke | 2250 mm |
| Square tube group plate size | 1300 x 2700 x 40 mm |
| Opening space | 70 mm |
| Layers | 15 |
| Cylinder working stroke | ⌀ 120 mm x 2 pcs |
| Motor power | 5.5 kW |
| Dimension | 3200 x 1300 x 3500 mm |
| Weight | 5500 kgs |
