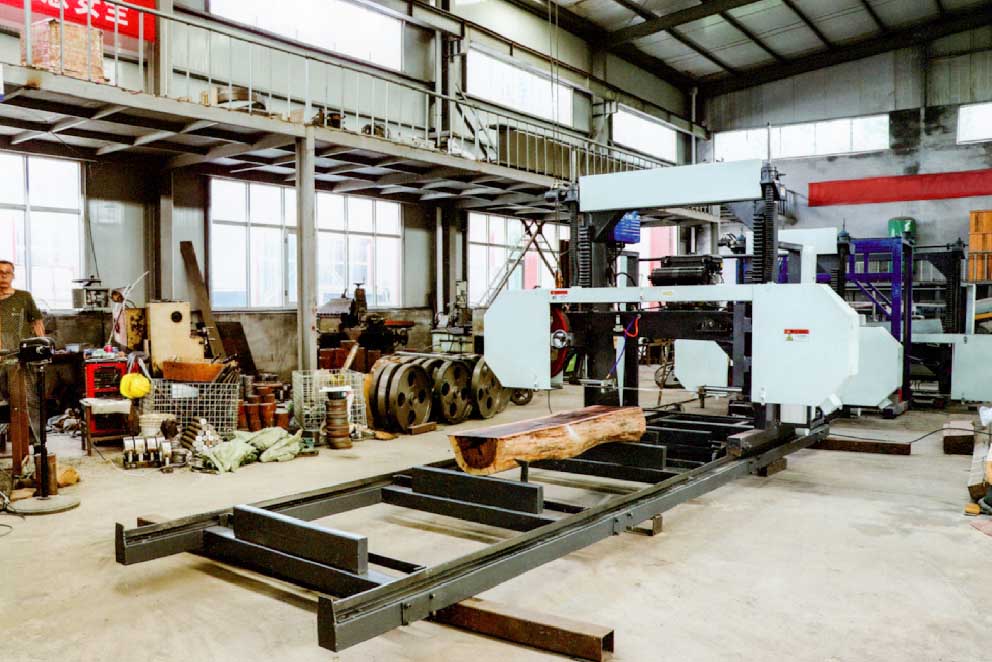

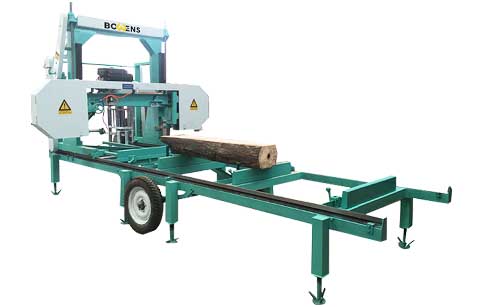

MJ700D / MJ1000D / MJ1300D / MJ1600D

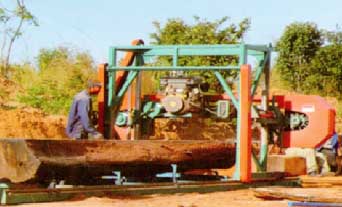

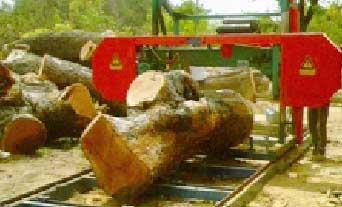

Portable horizontal band saw is a patent product. It equipped with diesel engine or gasoline engine. Easy to install and operate. Suitable for move around and cut the wood in the virgin forest.
MACHINE STRUCTURE FEATURES
The linear guide way and precision screw ensures smooth accurate sizing.
Cluthc to protext the engine and easy to change blades
Sweden SKF bearing ensures the quality of the sawmill

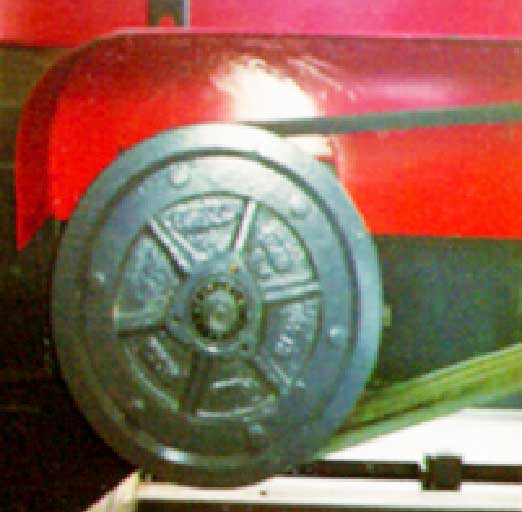

Center saw wheel design ensures saw wheel running stabilize and extend the working life of the saw wheel. Also reduce the probability of the blades break down.

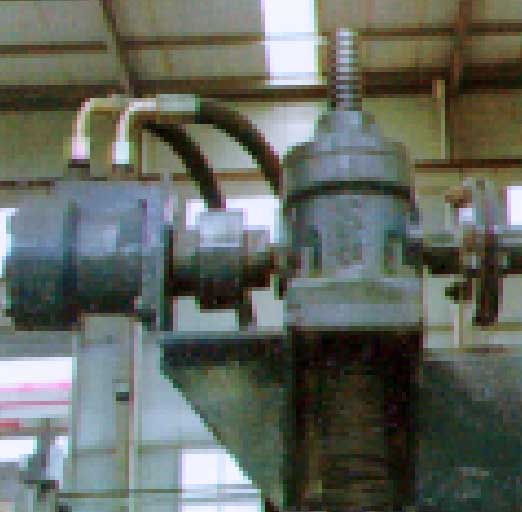

Hydraulic motor up and down the saw head.
Wear-resisting saw wheel pass the dynamic balancing emendation ensures running smoothly.
OPTIONS
Extend the rail length

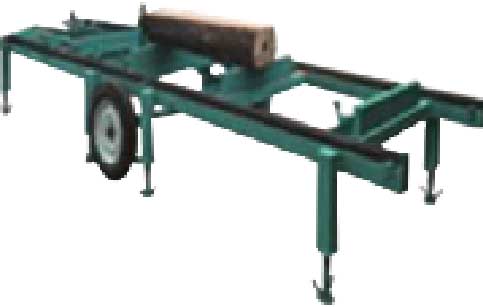

Mobile wheel and 8 pcs heigth adjustable legs
MJ700D / MJ1000D / MJ1300D / MJ1600D Video
Kunjungi Youtube channel PT. Alpha Utama Mandiri untuk melihat berbagai macam update konten video mesin-mesin perkayuan terbaru.
Specification MJ700D MJ1000D MJ1300D MJ1600D
| MODEL | MJ700P | MJ1000D | MJ1300D | MJ1600D |
|---|---|---|---|---|
| Max. Sawing Wood Diameter | 700 mm | 1000 mm | 1300 mm | 1600 mm |
| Saw Wheel Diameter | 600 mm | 700 mm | 700 mm | 700 mm |
| Sawing Wood Thickness | 2-250 mm | 2-300 mm | 2-300 mm | 2-300 mm |
| Standard Sawing Wood Length | 4500 mm | 4500 mm | 4500 mm | 4500 mm |
| Power | 22 HP Petrol | 22 HP Diesel | 25 HP Diesel | 27 HP Diesel |
| Up/Down | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Machine Length | 5800 mm | 5800 mm | 5800 mm | 5800 mm |
| Weight | 1100 kg | 1100 kg | 1300 kg | 1500 kg |
