P-508
Heavy Duty Planer
Features
- The Ideal Planer you can choose.
- Heavy Duty modern looks cast iron body.
- Uniformly Thickness smooth cutting.
- Anti Kick Back equipment gives operator greater safety.
- Up To 300mm thickness large cutting capacity.
- Sectional in-feed roll,chip breaker.
- 4-knife cutterhead for more smooth performance.
- Easy Operation knive setting gage.
- Magnetic switch control.
- 6″ dia. Nozzle Exhuast Hood.
Standard Equipment of P-508
3p 5HP motor, magnetic switch; 6″ dia. nozzle hood; knife setting gage; adjusting spanner.
Optional Equipment of P-508
Digital Controller
Precise digital controller shows the accurate thickness.
Grinding Attachment
Built-in grinding attachment (1/2HP ,single phase) to keep knives on good condition to achieve better performance and save the time on replacing knives.
Power Table
Worktable power raising by 1/2HP separate motor to achieve high efficient operation.
Power Table Roll
Provides powerful and smooth feeding of workpiece.
Variable Feed Speed
Variable Feed speed system actuated by separate 1HP motor to meet the needs of different kind of material for powerful feeding and greater safety of operation.
Increased Horse Power
Up to 7 1/2 HP, 3 phase motor can be fitted upon request.
Standard for P-630 ,P-508 ,P-20
Quick-adjustment equipment for quick adjusting table rolls while encountering with unsual rough bottom workpieces.

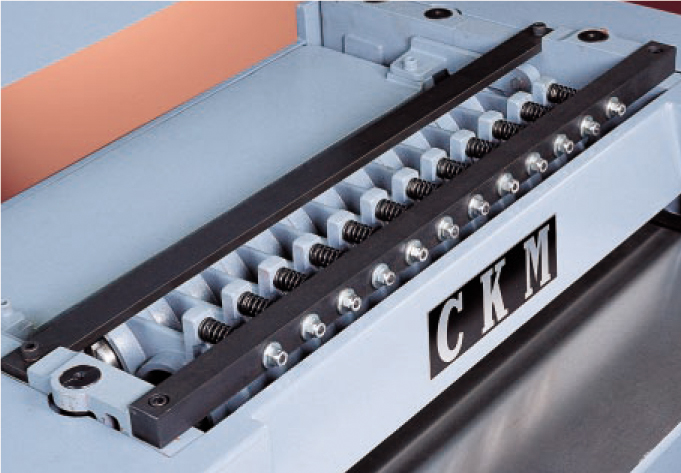

Accurately designed well built neat precise structure.

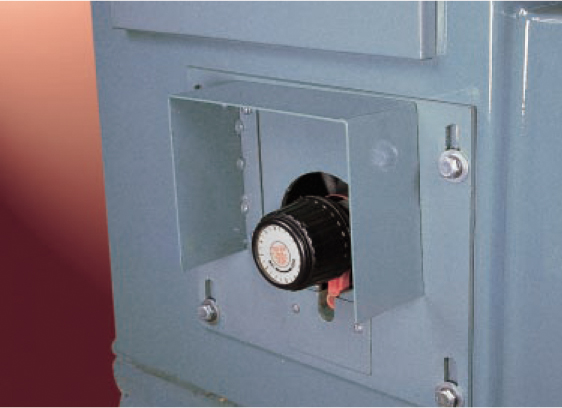

Variable Feed Speed (Optional)
Specification P-508 Heavy Duty Planer
| Model | P-508 |
|---|---|
| Capacity | |
| Max. width of workpiece | 508 mm |
| Max. thickness of workpiece | 300 mm |
| Max. depth of cut | 8 mm |
| Min. length of workpiece | 220 mm |
| Cutterhead | |
| Number of knives | 4 pcs |
| Diameter | 98 mm |
| Cutting circular | 102 mm |
| Speed | 4800 rpm |
| Table size | |
| Width | 562 mm |
| Length | 748 mm |
| Feed rolls | |
| In-feed (sectional) | 76 mm - one |
| Out-feed (solid) | 60 mm - one |
| Table roll (solid) | 72 mm - two |
| Feed rate | 34-5/16" |
| Overall dimension (L x W x H) | 1170 x 868 x 1200 mm |
| Net weight | 720 kgs |
| Gross weight | 820 kgs |
| Gronding attachment | 30 kgs |
The above data are not binding to details as improvements are incorporated from time to time.
* All specitications, dimensions and design characteristics shownin this catalogue are subject to change without notice.
