NP280 / NP330

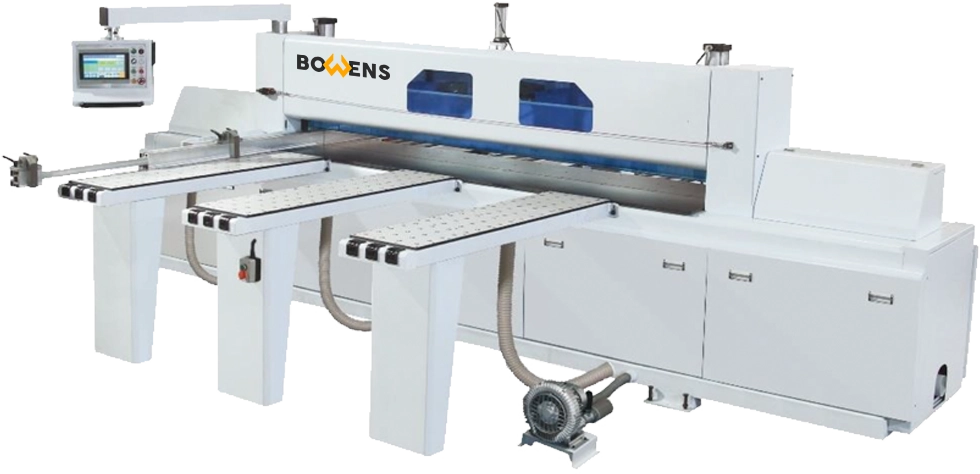

Manual Type Panel Saw
Electrical Structure
- Pneumatic: Saw blade lifting cylinder diameter 80*125 mm
- Motor: Main saw and scording saw motor uses 11 kW, saw car traction motor 1.5 kW
- Electrical appliances: adopt Taiwan Yonghong PLC programming controllerm imported Schneider contactor, INVT servo motor and frequency converter
Electrical Structure
- Electric: It adopts imported Airtac electronic valve control.
- Traction operation limit device: It adopts magnetic sensor control
- Air pressure: The air pressure of this equipment should be maintained at 0.6-0.8 kgf/cm2 during use. The pressure is greater to ensure cutting accuracy
Electrical Structure
- Voltage: This device uses 380 volts, 3 phases, and 50 Hz
Transmision Structure
-
Saw blade lifting guide rail device: use German SLM-25 nn square steel belt linear precision guide
-
Rack and pinion traction drive
-
The main saw adopts Taiwan Sanxing multi-grove belt, and the small saw triangle belt adopts imported belts.
Controller Structure
- The button controller box can be rotated by 180º, which is suitable for operation at different angles and is convenient to use
Main Function

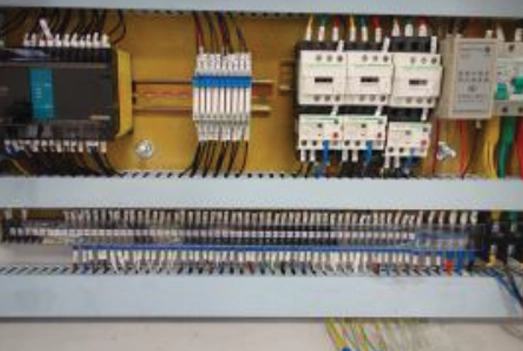

Electrical Control System

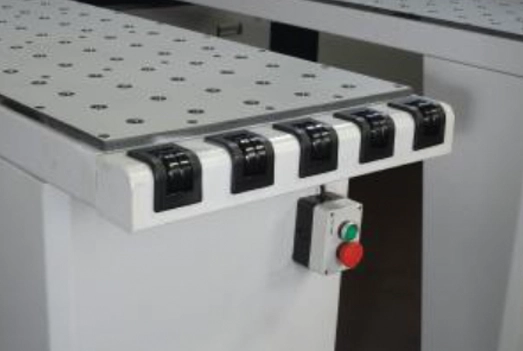

Feed Air Flotation Table

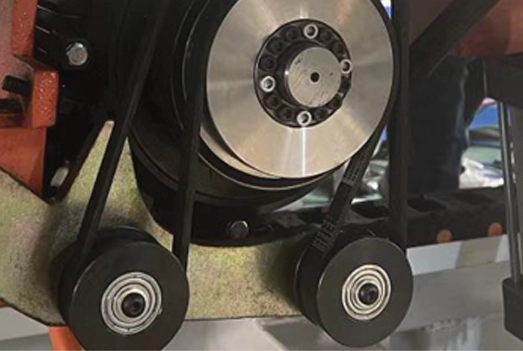

Saw Car Device

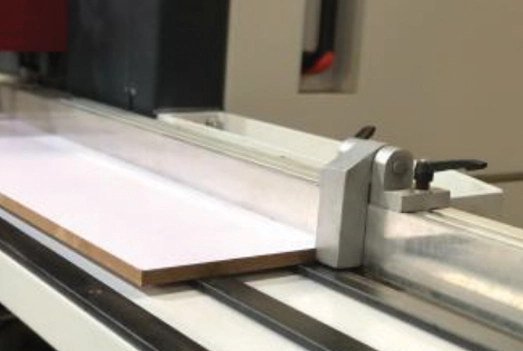

Positioning Device
Specification NP280/NP330 Panel Saw
| Model | NP280 | NP330 |
|---|---|---|
| Length / width of saw cut | 2700 mm | 3200 mm |
| Height of saw cut | 85 mm | 85 mm |
| Main saw speed | 4800 r/min | 4800 r/min |
| Servo positioning accuracy (precision square rail) | +0.02 mm | +0.02 mm |
| Sawing precision | +0.15 mm | +0.15 mm |
| Main saw/scoring saw motor power | 11 kW | 11 kW |
| Main blade outer diameter | 350 mm | 350 mm |
| Main saw blade inner diameter | 30 mm | 30 mm |
Traction motor power | 1.5 kW | 1.5 kW |
| Scoring saw blade outer diameter | 180 mm | 180 mm |
| Scoring saw blade inner diametr | 25.4 mm | 25.4 mm |
| Secondary saw speed | 6100 r/min | 6100 r/min |
| Sawing speed | 0-100 m/min frequency | 0-100 m/min frequency |
| Return speed | 100 m/min | 100 m/min |
| High pressure fan | 4 kW | 4 kW |
| Air pressure | 0.6-0.7 Mpa | 0.6-0.7 Mpa |
| Machine size (L x W x H) | 4900x3800x1800 mm | 5500x3800x1800 mm |
