WDL

MXS5125 / MXS5125A – CNC Linear Edge Milling Machine

MXS5625 – CNC Curve Edge Milling Machine

(Solid)

MXS5125 – CNC Linear Edge Milling Machine

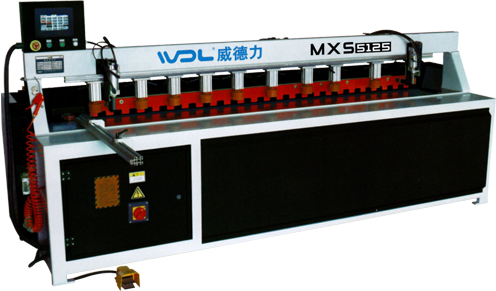

MXS5125 - CNC Linear Edge Milling Machine

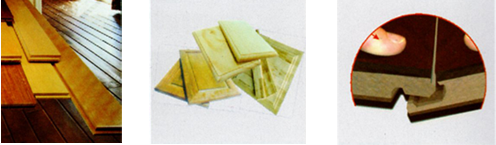

MXS5125 - CNC Linear Edge Milling Machine1

MXS5125A – CNC Linear Edge Milling Machine

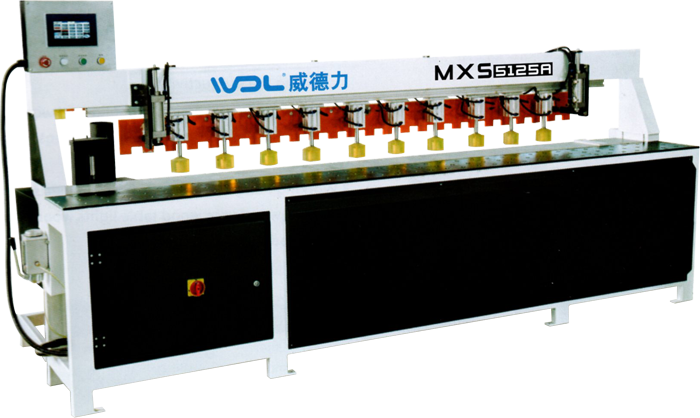

MXS5125A - CNC Linear Edge Milling Machine
  1. PLC touch screen is very easy to be operated
  2. Frequent feeding speed is suitable to process different kinds of wood-pieces
  3. Foot-step type switch is convenient for workers
  4. Accurate adjustment and ovservation
  5. Air float table, reducing labor.
MXS5125A - CNC Linear Edge Milling Machine1

MXS5625A – CNC Curve Edge Milling Machine

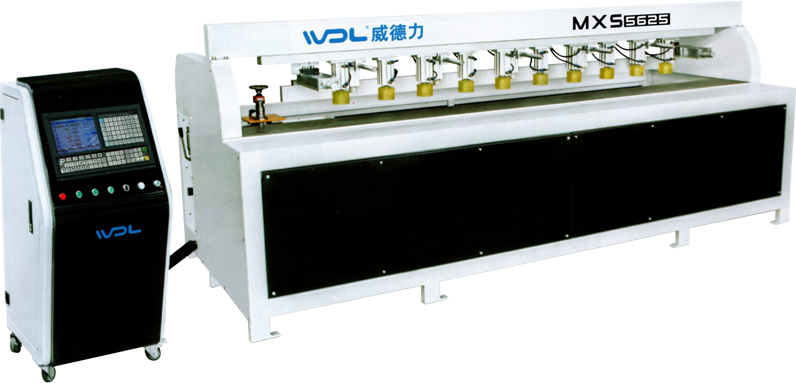

MXS5625 - CNC Curve Edge Milling Machine

According to the set program, it can be mille and cut different sizes of pieces without any moulds.

MXS5625 - CNC Curve Edge Milling Machine1

High speed motor and servo motor can be offered strong and stable power

MXS5625 - CNC Curve Edge Milling Machine2

Servo motor stably transmits the pieces on linear guideway, which is inported from Germany.

MXS5625 - CNC Curve Edge Milling Machine3

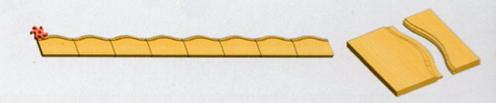

MXS5625 - CNC Curve Edge Milling Machine4
MODEL
MXS5125
MXS5125A
MXS5625
Max. processing thickness
50 mm
80 mm
50 mm
Max. processing length
2500 mm
2500 mm
2500 mm
Max. processing width
–
–
200 mm
X spindle max. speed
–
–
40 m/min
Y spindle max. speed
–
–
25 m/min
Processing speed
0 - 45 m/min
0 - 45 m/min
–
Milling cutter diameter
Ø90 - Ø130 mm
Ø90 - Ø130 mm
Ø90 - Ø150 mm
Main spindle diameter
Ø25 mm
Ø30 mm
Ø25 mm
Main spindle power
10000 r/min
10000 r/min
12000 r/min
Table dimensions
3200 x 1200 x 1300 mm
3200 x 1200 x 1300 mm
–
Motor power
5.2 Kw
7.5 Kw
5.5 Kw
Air pressure
0.6 - 0.8 Mpa
0.6 - 0.8 Mpa
0.6 - 0.8 Mpa
Suction inlet
Ø100 mm
Ø100 mm
Ø100mm x 1
Overall dimensions
3200 x 1200 x 1530 mm
3200 x 1250 x 1530 mm
3200 x 1260 x 1270 mm
Net weight
1450 Kg
1500 Kg
1100 Kg
