MX6336C / MX6350B – Twin Surfaces Copy Shaper

(Solid)

MX6336C

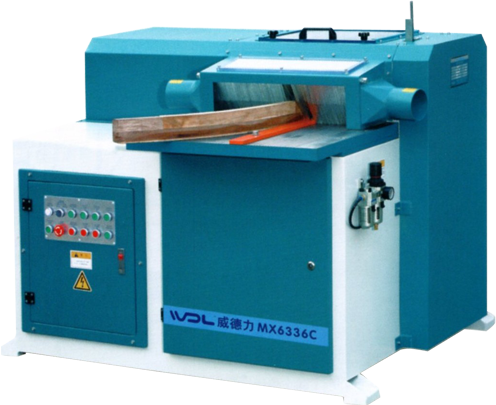

MX6336C - Twin Surfaces Copy Shaper
MX6336C - Twin Surfaces Copy Shaper1

MX6350B

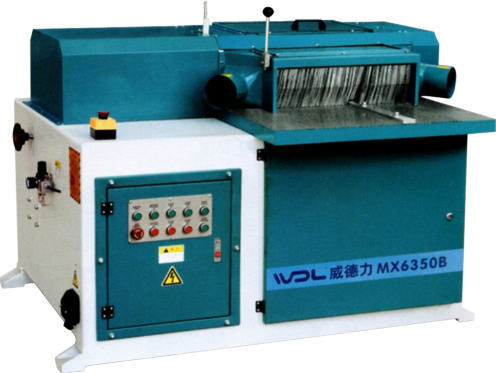

MX6350B - Twin Surfaces Copy Shaper
MX6350B - Twin Surfaces Copy Shaper1

It is used to process the gracile abnormity solid wood-piece, such as chair foot, table foot, it can be processed the double surfaces of the workpiece at the same time, feed the wood continuously, improve the production efficiency. The blade section adopts the close structure, its feeding can be adjusted nonpolarly, it is safe.

MODEL
MX6336B
MX6336C
Max. processing width
360 mm
10-180, 100-270, 190-360 mm
Max. processing thickness
125 mm
150 mm
Max. processing length
250 mm
360 mm
Diameter of main spindle
Ø35 mm
Ø35 mm
Diameter of guiding wheel
Ø100 mm
Ø100 mm
Speed of main spindle
6850 r/min
7850 r/min
Power of main spindle
5.5Kw x 2
5.5Kw x 2
Feeding power
0.75 Kw
0.75 Kw
Feeding speed
2 - 35 m/min
2 - 35 m/min
Feeding lift power
0.37 Kw
0.37 Kw
Table size
1260 x 608 mm
1655 x 874 mm
Working air pressure
0.6 - 0.8 Mpa
0.6 - 0.8 Mpa
Dust outlet diameter
Ø125 mm
Ø125 mm
Overall dimensions
129 x 152 x 112 cm
166 x 159 x 122 cm
Net weight
900 Kg
1400 Kg
