MX48

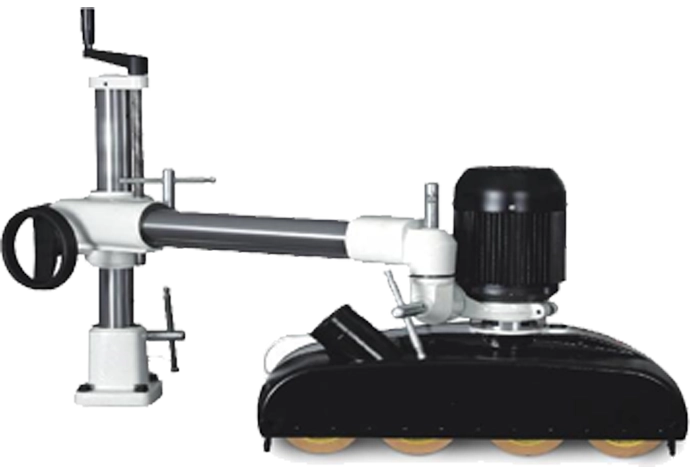

Lee Feeder (Power Feeder System)
Heavy Duty Model Our MX48 Le Feeder can be mounted easily to shapers, table saws and many other woodworking machines.
Feed Speed
Build in storage hanger for spare gears and with a range of eight speeds, the MX48 provides best speed options.
4 Rollers and Roller Suspension
These rollers with abrasion resistance provide excellent secure non-marking grip, ensure better operation condition. Rollers are all spring loaded to maintain a constant pressure, with roller suspension up to 16mm (5/8″).
Specification MX48 Lee Feeder
| Model No. | |
|---|---|
| Horsepower / Rotation | 1 HP (0.75 KW), 1 or 3 phase; Forward / Reverse |
| Range of Speeds | 3.5/5/7/10/12/17/26/34 M/min (50 Hz) (12/16/24/32/42/55/84/110 FPM) (50 Hz) 3.5/5/7/10/12/16/24/32 M/min (60 Hz) (12/16/24/32/40/53/80/106 FPM) (60 Hz) |
| Rollers | Φ120 x 60 mm x 4 pcs (Φ4-3/4” x 2-3/8” x 4 pcs) |
| Roller Suspension | 16 mm (5/8") |
| Net Weight | 28 + 34 Kg (62 + 75 Lb) |
| Gross Weight | 30 + 36 Kg (66 + 79 Lb) |
| Packing Dimension | Body: 770 x 560 x 290 mm (30-3/8" x 22" x 11-1/2") Stand: 770 x 320 x 290 mm (30-3/8" x 12-5/8" x 11-1/2") |
