MT Segmented Pad Sander

MT-TRHG-1300

MT Segmented Pad Sander, which can realize the diversity of veneer sanding, meet various needs (Italian light luxury semi-open effect, zig-zag effect, super sub-effect, high-gloss effect, etc.) without manual invervention, Mainly used in wooden doors and furniture industries, and can achieve time-saving and cost-effective.

MT-PRODUCT ADVANTAGES

Cleanness

Lining Technology

Sanding Belt Advantage

German Air Control System

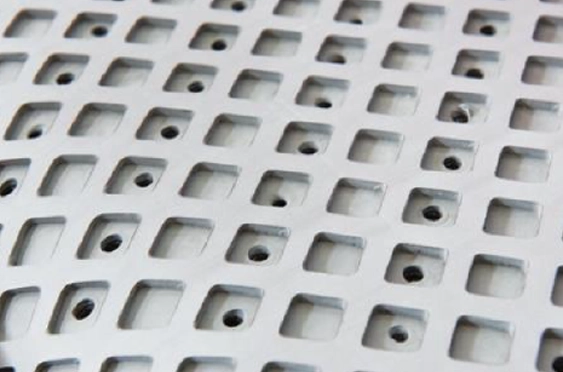

Italian Conveyor

German Multi-ribbed Belt

Over Thickness Detection

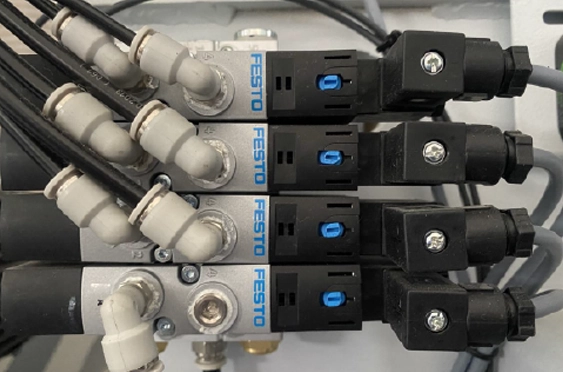

Air Control System

Siemens Electrical Components

German FAG Bearings

The 80-section Segmented Pad

Specification MT Segmented Pad Sander

Model	MT-TRHG-1300
Max. Working Width	1300 mm
Min. Working Length	514 mm
Work Thickness	5-150 mm
Feeding Speed	7-36 m.min
Total Power	61 kW
Power of 1st unit Inverter	15 kW
Power of 2nd unit Inverter	15 kW
Power of 3rd unit Inverter	15 kW
Power of 4th unit	15 kW
Vacuum Fan Power	7.5 kW
Volume of Dust Collection Device	22000 m3/h
Air Consumption	> 140 m3/h
Air Pressure	0.6 Mpa
Platform Height	900 mm
Overall Dimension	2260 x 4222 x 2770 - 2940 mm
Weight	8400 kg
