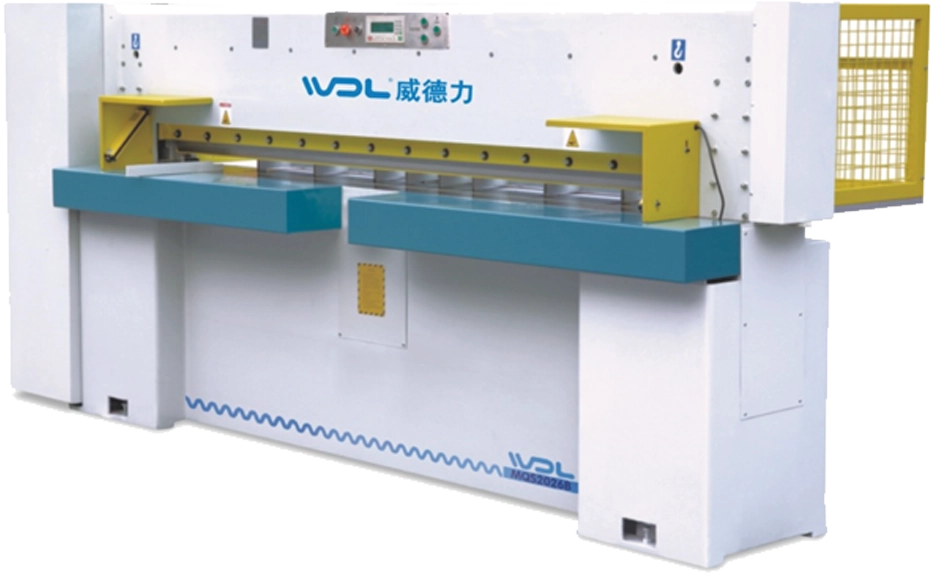

MQS2026B
Veneer Guillotine with Servo Motor
MQS2031B
Veneer Guillotine with Servo Motor

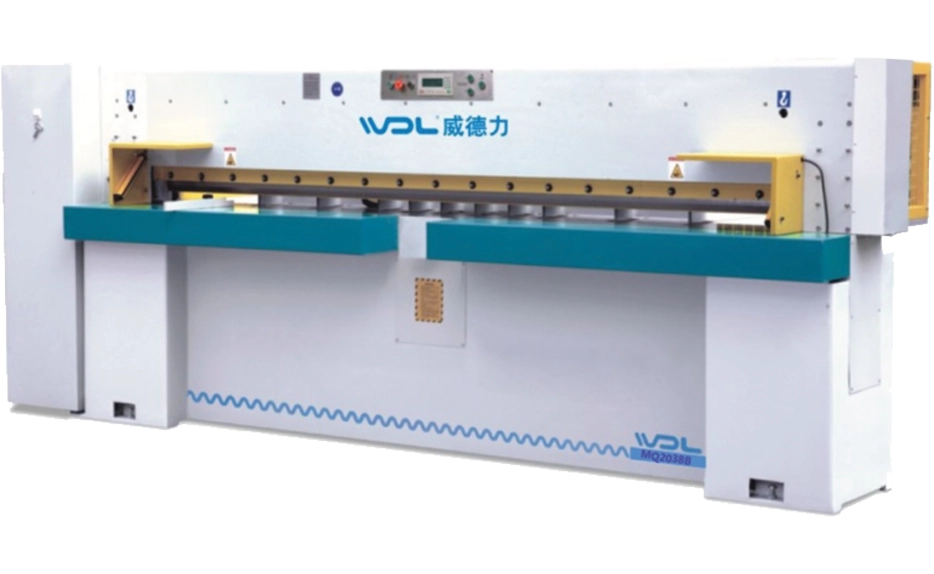

MQS2036B
Veneer Guillotine with Servo Motor
Detail of Product Veneer Guillotine

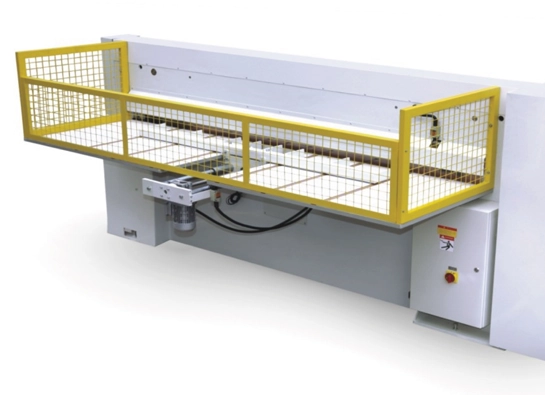

The motor-driven rear ruler can place workpiece to the right position for cutting
The read line indicates the right cutting position

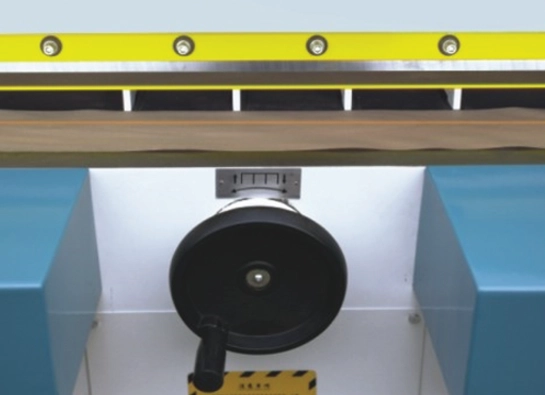

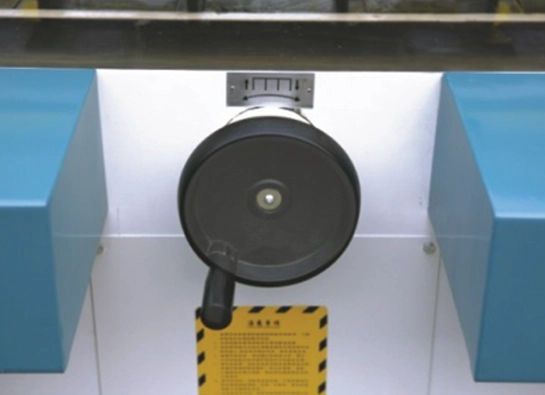

Fine tuning ruler with indicator showexact cutting width

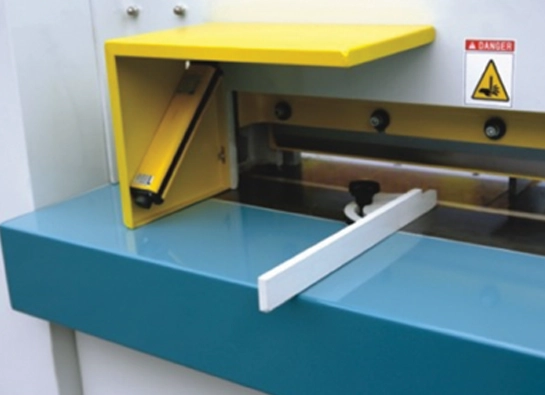

The safety electric eye and both-hand start button effectively prevent accidents from working

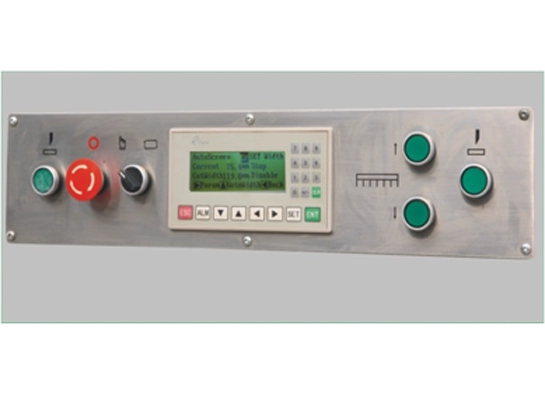

MQS series guillotine are equiped with CNC servo motor and soft touching display menu, which make the machine easy in use and more accurate in performance

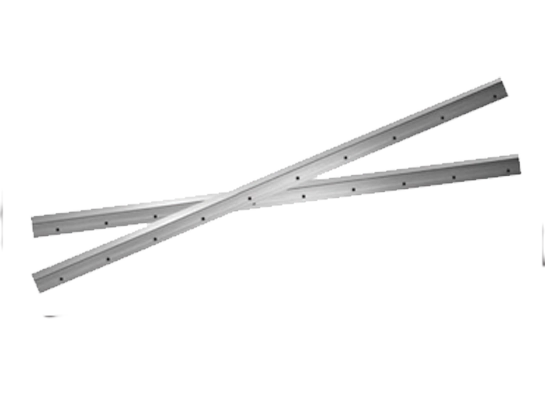

Use Swiss brand leather cutting scissors

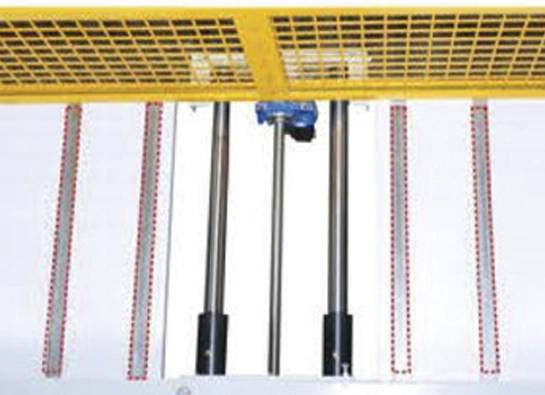

The worktable panel is made of high quality stainless steel bars to prevent the wood from being worn when moving foward and backward
Specification MQS2026B | MQS2031B | MQS2036B
| Model | MQS2026B | MQS2031B | MQS2036B |
|---|---|---|---|
| Maximum shear length | 2600 mm | 3100 mm | 3600 mm |
| Maximum shear thickness | 50 mm | 50 mm | 50 mm |
| Maximum shear width | 700 mm | 700 mm | 700 mm |
| Maximum hydraulic pressure | 14 Mpa | 14 Mpa | 14 Mpa |
| Pump power | 3.7 kW | 3.7 kW | 3.7 kW |
| Feeding motor power | 0.4 kW | 0.4 kW | 0.4 kW |
| Scissors size | 2690 x 90 x 10 mm | 3190 x 90 x 10 mm | 3690 x 90 x 10 mm |
| Dimensions | 3680 x 1600 x 1540 mm | 4180 x 1600 x 1540 mm | 4680 x 1600 x 1540 mm |
| Net weight | 2500 kg | 2800 kg | 3100 kg |
