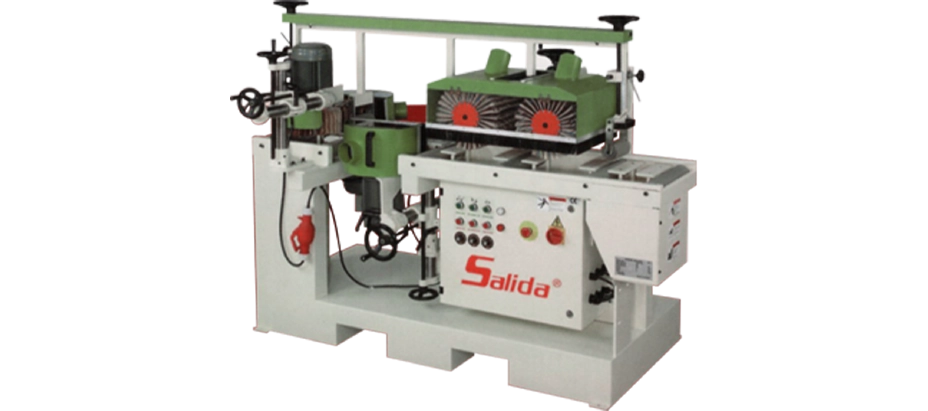

SL-300 5SH
SL-300 7SH-OL

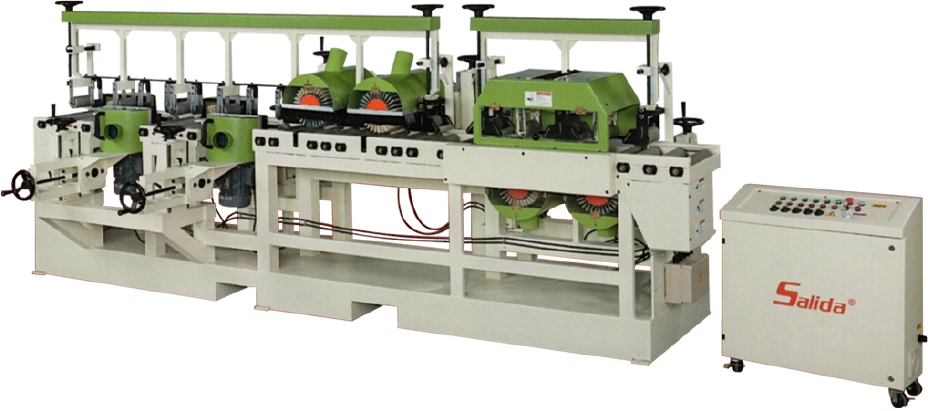

SL-300 8SH-L
Specification Moulding Sanding Machine SL-300 Series
| Model | SL-3005SH/3 Sides | L-300-6SH/4 Sides | SL-300-7SH-OL/4 Sides | SL-300-8SH-L/4 Sides |
|---|---|---|---|---|
| Max. working width | 12" (300 mm) | 12" (300 mm) | 12" (300 mm) | 12" (300 mm) |
| Max. working height | 4" (100 mm) | 4" (100 mm) | 4" (100 mm) | 4" (100 mm) |
| Min. work-pieces length | 33" (838 mm) | 33" (838 mm) | 33" (838 mm) | 420 mm (single piece feeding) 254 mm (continous feeding) |
| Min. work-pieces thickness | 3/8" (9.5 mm) | 3/8" (9.5 mm) | 3/8" (9.5 mm) | 3/8" (9.5 mm) |
| Conveyor feed speed | 2-12 m/min (inverter) | 2-12 m/min (inverter) | 2-12 m/min (inverter) | 2-12 m/min (inverter) |
| Speed of sanding head | 200-1200 rpm | 200-1200 rpm | 200-1200 rpm | 200-1200 rpm |
| Top brush head motor | 2 x 3/4 HP (0.55 kW) | 2 x 3/4 HP (0.55 kW) | 2 x 3/4 HP (0.55 kW) | 2 x 3/4 HP (0.55 kW) |
| Bottom brush head motor | - | 1 x 3/4 HP (0.55 kW | 2 x 3/4 HP (0.55 kW) | 2 x 3/4 HP (0.55 kW) |
| Right brush head motor | 1 x 1/2 HP (0.37 kW) | 1 x 1/2 HP (0.37 kW) | 1 x 1/2 HP (0.37 kW) | 1 x 1/2 HP (0.37 kW) |
| Left brush head motor | 1 x 1/2 HP (0.37 kW) | 1 x 1/2 HP (0.37 kW) | 1 x 1/2 HP (0.37 kW) | 1 x 1/2 HP (0.37 kW) |
| Angle brush head motor | 1 x 1/2 HP (0.37 kW) | 1 x 1/2 HP (0.37 kW) | 1 x 1/2 HP (0.37 kW) | 1 x 1/2 HP (0.37 kW) |
| Conveyor motor | 1/4 HP (0.18 kW) | 1/4 HP (0.18 kW) | 1/4 HP (0.18 kW) | 1/4 HP (0.18 kW) |
Mesin Amplas Kayu dari PT. Alpha Utama Mandiri
High Frequency Press Four Corner Join
High Frequency Press Four Corner Join delivers extreme corner precision, 2× productivity with dual workstation, and servo motor accuracy for premium frame and cabinet production.
High Frequency Hydraulic Press for One Way, Three Way & Four Way
The High Frequency Hydraulic Press is available in One Way, Three Way, and Four Way models, delivering uniform pressure, fast curing, and consistent quality for modern furniture and woodworking industries.
High Frequency Generator 13.56 MHz Fast Curing for Wood Bending and Press
The 13.56 MHz High Frequency Generator is designed for wood bending and multiple press systems, offering fast 60–180 second curing, dual independent variable capacitors, and automatic current adjustment for maximum precision and efficiency.
