Hot Press (1 – 3 Layers) Panel

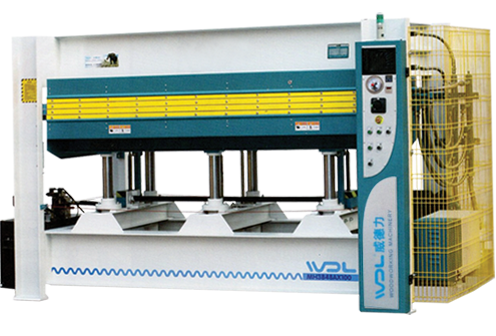

MH3848Ax100 – Hot Press ( 1 – 3 Layers )

MH3848Ax100 - Hot Press ( 1 - 3 Layers )

MHS3848Ax100 – Hot Press ( 1 – 3 Layers )

MHS3848Ax100 - Hot Press ( 1 - 3 Layers )

Suitable to press veneer, fireproofing-board, decorating-paper etc. Equips with solid steel heat conduction board for deep-hole drilling, configure with pedal emergency switch, temperature protection device, etc. Main hyraulic parts cylinders and components are imported from Japan and Taiwan. Heating type:

  • Electric heating with circulating heat-transmission oil (standard configuration)
  • Steam heating (optional)
  • With both electric and steam heating, suitable for shortage of steam area

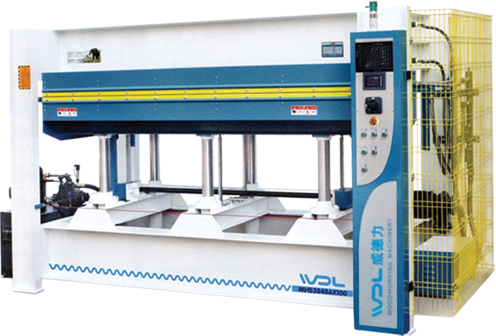

MHS3848Ax100 - Hot Press ( 1 - 3 Layers )

Equipped with Italy combination valve

MHS38 series hot press is smart numerical hot press, this series of hot press with PLC, pressure sensor, temperature sensor, human machine interface and it can set and display main parameter such as pressure, temperature, time and safety, all the message from the LCD screen, so as to reduce the troubles, depress the waster ratio and defend the machine.

MODEL
MH3848A x 100 (1 layer)
MHS3848A x 100 (1 layer)
MH3848A x 100 (2 layers)
MHS3848A x 100 (2 layers)
MH3848A x 100 (3 layers)
MHS3848A x 100 (3 layers)
Hot press platen size
1300 x 2500 x 42 mm
1300 x 2500 x 42 mm
1300 x 2500 x 42 mm
Max. pressing force
100 t (3.0 kg/cm²)
100 t (3.0 kg/cm²)
100 t (3.0 kg/cm²)
Hydraulic system pressure
295 kg/cm²
295 kg/cm²
295 kg/cm²
Max. platen open
380 mm
170 mm
100 mm
Oil cylinder
Ø85mm x 6pcs
Ø85mm x 6pcs
Ø85mm x 6pcs
Hydraulic motor power
4 Kw
4 Kw
4 Kw
Hot oil pump power
1.5 Kw
1.5 Kw
1.5 Kw
Heating pipe power
18 Kw
27 Kw
36 Kw
Overall dimensions (L x W x H)
370 x 166 x 198 cm
370 x 166 x 198 cm
370 x 166 x 198 cm
Net weight
4900 kg
5940 kg
6980 kg
