WDL

MH3834 Series – Curved Wood Forming Press

(Solid)

MH3834x100

Curved Wood Forming Press

(One way One Working Position)

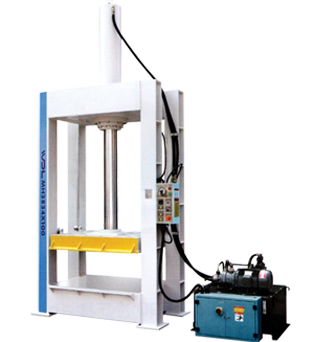

MH3834x100 – Curved Wood Forming Press

MH3834Ax100

Curved Wood Forming Press

(Three way One Working Position)

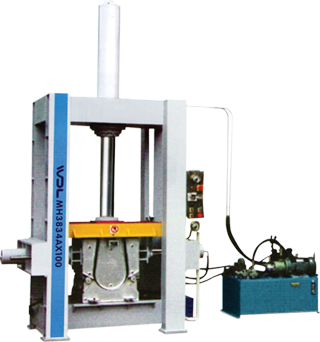

MH3834Ax100 – Curved Wood Forming Press
Curved Wood Forming Press series 1
Curved Wood Forming Press series 2
Curved Wood Forming Press series 3
Curved Wood Forming Press series 4

MH3834x100x2

Curved Wood Forming Press

( One way Two Working Position )

MH3834x100x2 – Curved Wood Forming Press

MH3834Ax100x2

Curved Wood Forming Press

(Three ways Two Working Position)

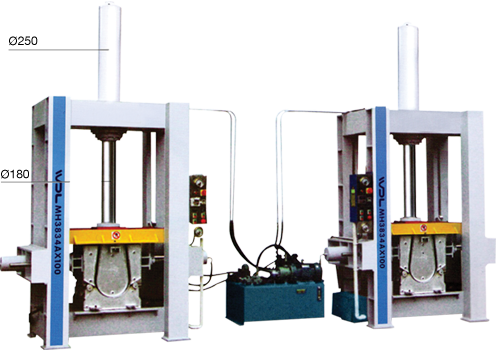

MH3834Ax100x2 – Curved Wood Forming Press
Curved Wood Forming Press series 5
Curved Wood Forming Press series 6
Curved Wood Forming Press series 7

Mould is optional

Mould is optional

Model
MH3834 x 100
MH3834 x 100 x 2
MH3834A x 100
MH3834A x 100 x 2
Pressure of main cylinder
100 t x 1 pcs
100 t x 2 pcs
100 t x 1 pcs
100 t x 2 pcs
Pressure of side cylinder
-
-
25 t x 2 pcs
25 t x 4 pcs
Oil cylinder stroke
1200 mm
1200 mm
1200 mm
1200 mm
Oil cylinder
Ø180 x 1pcs
Ø180 x 2pcs
Ø180 x 1pcs, Ø100 x 2pcs
Ø180 x 2pcs, Ø100 x 4pcs
Max. opening pressing platen
1700 mm
1700 mm
1700 mm
1700 mm
Workbench size
1300 x 900 mm
1300 x 900 mm x 2
1300 x 900 mm
1300 x 900 mm
Installation power
5.5 kw
5.5 kw
7.5 kw
7.5 kw
Overall dimensions (L x W x H)
200 x 106 x 409 cm
200 x 106 x 409 cm x 2
260 x 132 x 409 cm
260 x 132 x 409 cm x 2
Net weight
2827 Kg
5660 Kg
5000 kg
10000 Kg
