Cold Press (Panel)

Home > Product > Brand > Weili

MH324x25x2 Cold Press

( 2 Sections )

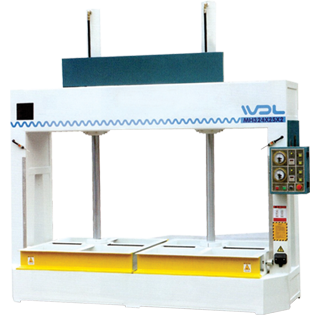

MH324x25x2 Cold Press ( 2 Sections )

MH324x25x3 Cold Press

( 3 Sections )

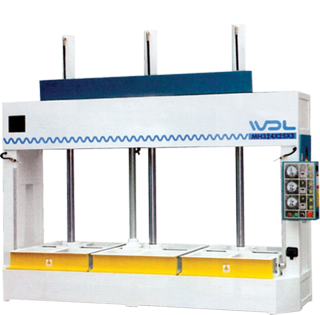

MH324x25x3 Cold Press ( 3 Sections )

MH324x20x4 Cold Press

( 4 Sections )

MH324x20x4 Cold Press ( 4 Sections )
MODEL
MH324 x 25 x 2
MH324 x 25 x 3
MH324 x 20 x 4
MH324 x 25 x 4
Workbench size
1250 x 1250mm x 2
1250 x 1000mm x 3
1250 x 3000mm x 4
1250 x 750mm x 4
Max. pressing fore of workbench
25 t x 2 (1.6 kg/cm²)
25 t x 3 (2 kg/cm²)
25 t x 4 (2.1 kg/cm²)
25 t x 4 (2.1 kg/cm²)
Hydraulic system pressure intensity
210 kg/cm²
210 kg/cm²
170 kg/cm²
170 kg/cm²
Max. opening pressing platen
1000 mm
1000 mm
1000 mm
1000 mm
Oil cylinder
Ø 125 mm x 2 pcs
Ø 125 mm x 3 pcs
Ø 125 mm x 4 pcs
Ø 125 mm x 4 pcs
Power oil hydraulic pump
5.5 kw
5.5 kw
5.5 kw
5.5 kw
Overall dimensions (L x W x H)
292 x 125 x 300 cm
355 x 125 x 300 cm
355 x 125 x 322 cm
355 x 125 x 318 cm
Net weight
2200 Kg
3800 kg
3220 kg
4200 Kg
