MH27120 – Hydraulic Clamp Carrier

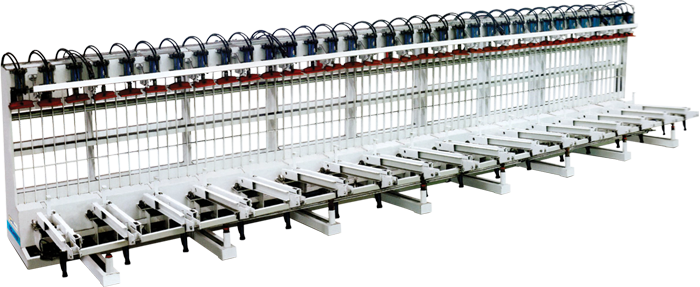

MH27120 - Hydraulic Clamp Carrier
  • This machine can clamp 12000mm pieces in semi-automatic, very easy to operate
  • It equips the hydraulic device, which can clamp in stable speed, with huge force and equal pressing
  • The automatic pressure-keeping system ensures the pieces keep perfect after clamping. Besides, energy was averaged to use
  • It equips the semi-automatic feeding and discharging device, no need to raise the pieces, which can reduce the labor exhaustion

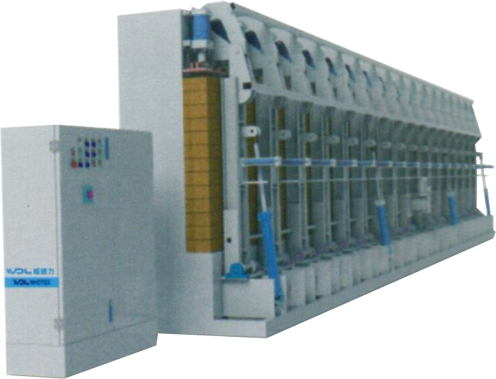

MH27120 - Hydraulic Clamp Carrier_1
MH27120 - Hydraulic Clamp Carrier_2
MODEL
MH27120
MH2760
Max. processing length
12000 mm
6000 mm
Max. processing width
1300 mm
1300 mm
Max. processing thickness
50 - 200 mm
50 - 200 mm
Main pressure cylinder
Ø100 x 100mm x 34pcs
Ø100 x 100mm x 18pcs
Side presure cylinder
Ø40 x 175mm x 17pcs
Ø40 x 175mm x 9pcs
Locked oil cylinder
Ø40 x 50mm x 4pcs
Ø40 x 50mm x 2pcs
Side lifting oil cylinder
Ø63 x 500mm x 4pcs
Ø63 x 500mm x 2pcs
Max. main pressure
373.6 t
198 t
Longitudinal rotation angle for
main pressing board
± 5° - 10°
± 5° - 10°
Clamping platen pressure
15.6 (kg/cm²)
15.6 (kg/cm²)
Hydraulic system pressure intensity
14 Mpa
14 Mpa
Hydraulic motor power
7.5 Kw
7.5 Kw
Feeding motor power
0.75 Kw
0.75 Kw
Power for the compensate pressure motor
1.5 Kw
1.5 Kw
Feeding speed
6 m/min
6 m/min
Overall dimensions
1200 x 125 x 255 cm
600 x 125 x 255 cm
Electric box
120 x 70 x 40 cm
120 x 70 x 40 cm
Oil station
1185 x 645 x 772 mm
1185 x 645 x 772 mm
Net weight
11000 Kg
6000 Kg
