MH1362D – Hydraulic Clamp Carrier ( Down Fold Type )

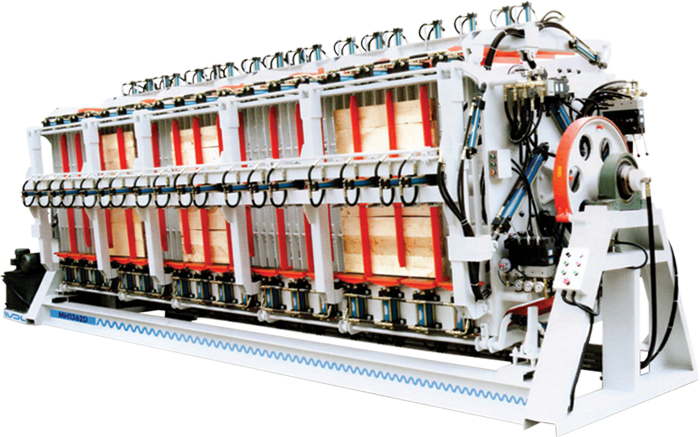

MH1362D Hydraulic Clamp Carrier ( Down Fold Type )

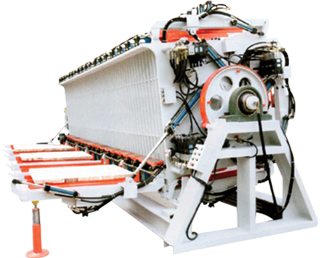

MH1362D Hydraulic Clamp Carrier ( Down Fold Type )_2

Down folded situation of the side press frame

MH1362D Hydraulic Clamp Carrier ( Down Fold Type )_3
  • This machine is equipped with the hydraulic cooling device, which can avoid the hydraulic parts to damage from overload, overtop oil temperature, and long time processing
  • The hydraulic system has the function of automatically boosting which can ensure the constant working pressure
MODEL
MH1325D
MH1331D
MH1350D
MH1362D
Max. clamping size
2500 x 1320 x 150 mm
3100 x 1320 x 150 mm
5000 x 1320 x 150 mm
6200 x 1320 x 150 mm
Main pressing oil cylinder
Ø80 x 80mm x 8pcs x 4
Ø80 x 80mm x 9pcs x 4
Ø80 x 80mm x 16pcs x 4
Ø80 x 80mm x 18pcs x 4
Side pressing oil cylinder
Ø40 x 150mm x 8pcs x 4
Ø40 x 150mm x 9pcs x 4
Ø40 x 150mm x 16pcs x 4
Ø40 x 150mm x 18pcs x 4
Side lifting oil cylinder
Ø63 x 550mm x 2pcs x 4
Ø63 x 550mm x 2pcs x 4
Ø63 x 550mm x 2pcs x 4
Ø63 x 550mm x 2pcs x 4
Brake oil cylinder
Ø40 x 210mm x 1pcs x 4
Ø40 x 210mm x 1pcs x 4
Ø40 x 210mm x 1pcs x 4
Ø40 x 210mm x 1pcs x 4
Locked oil cylinder
Ø40 x 60mm x 1pcs
Ø40 x 60mm x 1pcs
Ø40 x 60mm x 1pcs
Ø40 x 60mm x 1pcs
Max. main pressure
56 t
63 t
112 t
126 t
Rotary drive power
2.2 Kw
2.2 Kw
2.2 Kw
4 Kw
Hydraulic motor power
7.5 Kw
7.5 Kw
7.5 Kw
7.5 Kw
Supplement motor power
1.5 Kw
1.5 Kw
1.5 Kw
1.5 Kw
Pressure of hydraulic system
14 Mpa
14 Mpa
14 Mpa
14 Mpa
Overall dimensions (L x W x H)
450 x 280 x 290 cm
510 x 280 x 290 cm
700 x 280 x 290 cm
820 x 280 x 290 cm
Net weight
8000 kg
10000 kg
13100 kg
16300 kg
