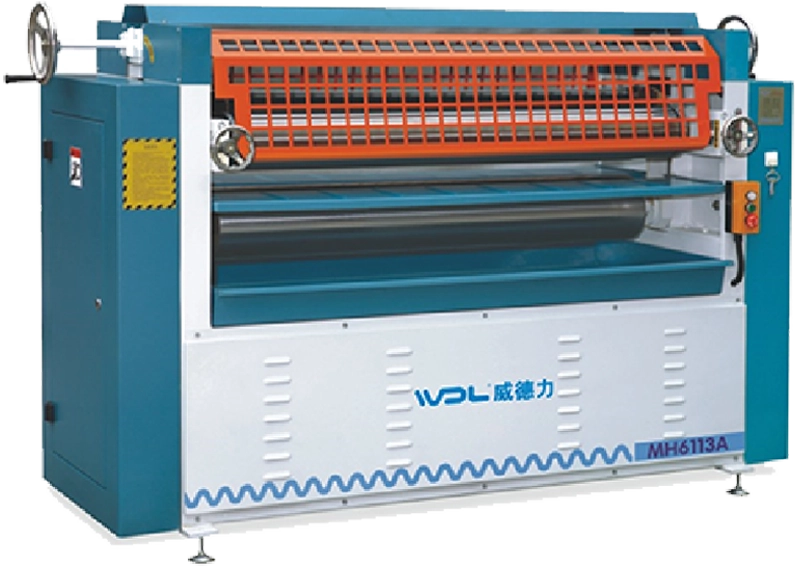

| Model | MH 6113A |
|---|---|
| Max. gluing width | 1300 mm |
| Max. gluing thickness | 1 ~ 80 mm |
| Dia. gluing stick | ф 200 mm |
| Gluing speed | 16 m/min |
| Gluing motor power | 1.5 kw |
| Feeding height of glued plate | Adjustable range of horizontal screws of the machine |
| Adjustable range of horizontal screws of the machine | 50 mm |
| Overall dimensions (L x W x H) | 2230 x 800 x 1430 mm |
| Net weight | 800 kg |
The adjustment of gluing discharger made of stainless steel

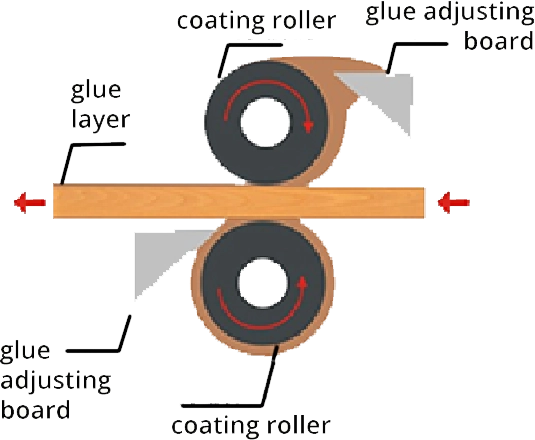

Function of MH-6113A

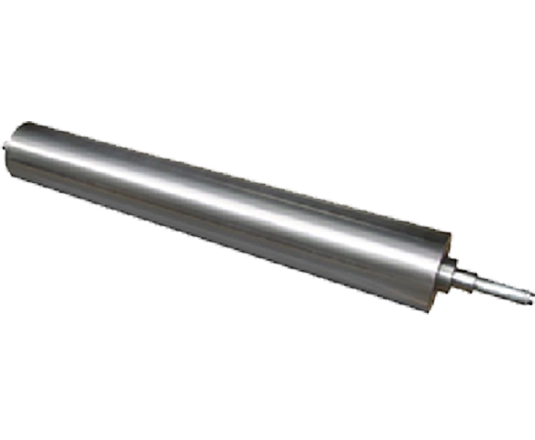

Smooth rubber roller
Fine thread rubber roller
Universal threaded rubber roller
Coarse thread rubber roller
Extra large threaded rubber roller
