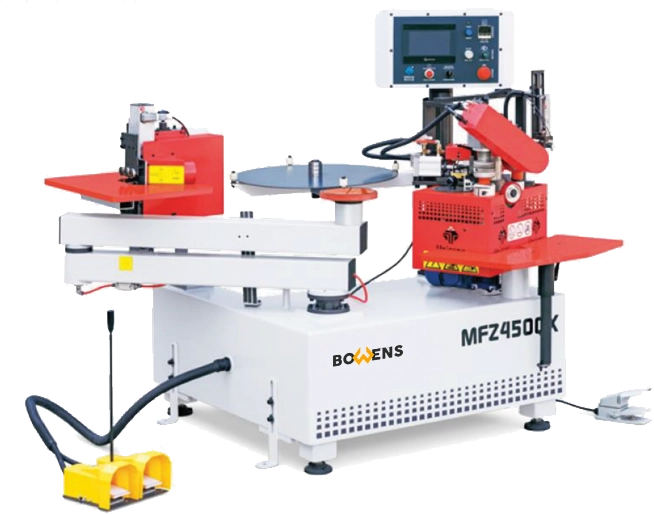

MFZ450QX
Specification Auto Curve Edge Bander
| Model | MFZ450QX |
|---|---|
| Power | Low speed 3500 mm/min |
| Speed | High speed 7000 mm/min |
| Working thickness | 10-60 mm |
| Edge band tape thickness | 1-3 mm |
| Processing | |
| Rectangle board | |
| Min size | 50 x 200 mm |
| Max size | 1000 x 2000 mm |
| Tape thickness is 1 mm | Rmin = 30 mm |
| Tape thickness is 2 mm | Rmin = 50 mm |
| Tape thickness is 3 mm | Rmin = 80 mm |
| Round board | Φmin = 200 mm. Φ max = 2400 mm |
| Sketch board | Rmin = 250 mm |
| Max weight of board | 40 kg |
| Height of worktable | 950 mm |

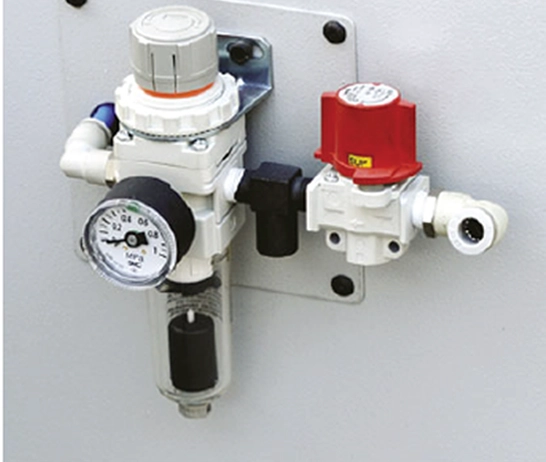

| Working air pressure | 0.6 Mpa |
| Machine dimension | 2275 x 1620 x 1580 mm |
| Weight | 570 kg |
