MF92 A Type Series – Water Spray Booth
(Panel)

Home > Product > Brand > Weili

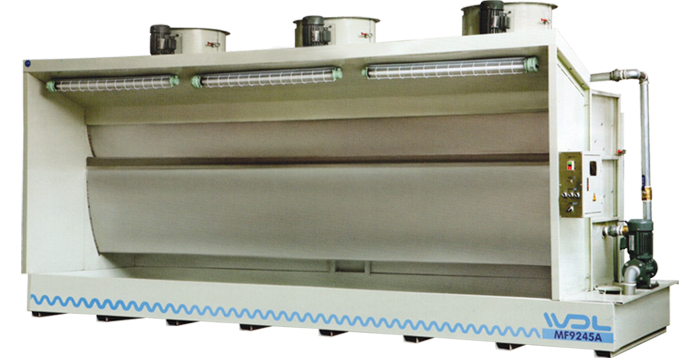

MF9245A – Water Spray Booth

MF9245A – Water Spray Booth
Type A

  • Applicable to spray painting of higher workpieces
  • Equipped with purifying and spraying device
  • Fan design of blast-proof aluminium alloy blade
  • Compact door panel structure for better exhaust effects
  • Qualifier of environmental protection industry certificate

MF9225A – Water Spray Booth

MF9225A – Water Spray Booth

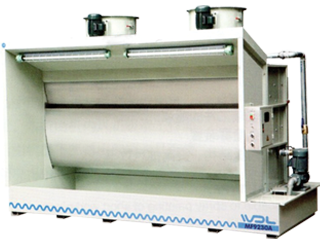

MF9230A – Water Spray Booth

MF9230A – Water Spray Booth
MODEL
MF9220A
MF9225A
MF9230A
MF9235A
MF9240A
Water curtain width
2000 mm
2440 mm
3000 mm
3500 mm
4000 mm
Air delivery
22000 m³/h
22000 m³/h
18000 m³/h x 2
18000 m³/h x 2
18000 m³/h x 2
Fan power
2.2 kw
2.2 kw
1.5 kw x 2
1.5 kw x 2
1.5 kw x 2
Pump power
1.5 kw
1.5 kw
1.5 kw
2.2 kw
2.2 kw
Overall dimensions
(L x W x H)
255 x 150 x 245 cm
300 x 150 x 245 cm
355 x 150 x 245 cm
405 x 150 x 245 cm
455 x 150 x 245 cm
Net weight
680 kg
700 kg
870 kg
990 kg
1050 kg
MODEL
MF9245A
MF9250A
MF9255A
MF9260A
Water curtain width
4500 mm
5000 mm
5500 mm
6000 mm
Air delivery
18000 m³/h x 3
18000 m³/h x 3
18000 m³/h x 3
18000 m³/h x 4
Fan power
1.5 kw x 3
1.5 kw x 3
1.5 kw x 3
1.5 kw x 4
Pump power
2.2 kw
2.2 kw
2.2 kw
2.2 kw
Overall dimensions
(L x W x H)
505 x 150 x 245 cm
555 x 150 x 245 cm
605 x 150 x 245 cm
655 x 150 x 245 cm
Net weight
1170 kg
1240 kg
1300 kg
1470 kg
