SS-512 Series Machine & Accessory Detail

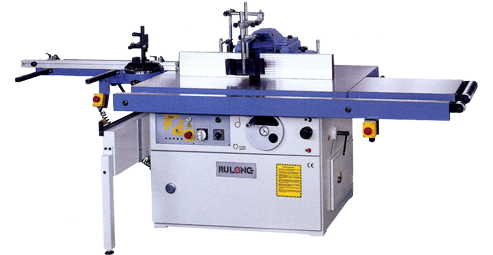

SS-512 ML with TC-1 + right hand Extension table, feed roller and support with fully adjustable fence assembly for straight work

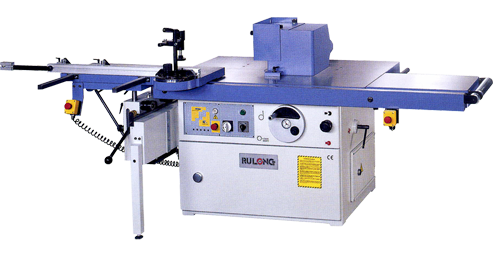

SS-512 ML with TC-1 + right hand Extension table, feed roller and support with TENOING CAP
– safeguarding for tenoning with adjustable protective covers for maximum usable tool diameter with 4″ axhaust outlet

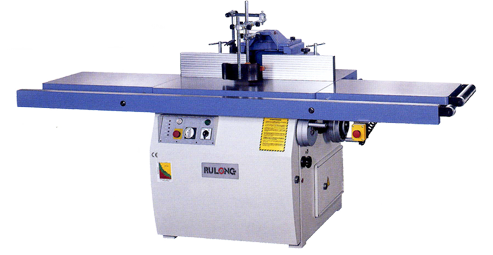

SS-512T backward tilt with extension table (2500mm), feed roller and support (450mm)

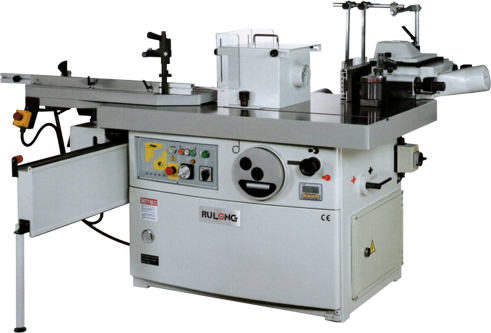

SS-512ML with TC-1 & movable safety fence

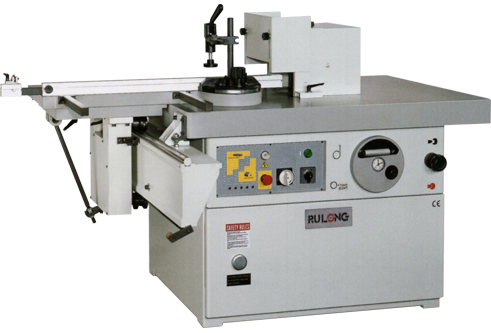

SS-512ML with TC1-e
Fence assembly as standard equipment, FA-01
Fence assembly-Economic Type
TC-1 tenoning carriage w/ tilting +45⁰ – -45⁰
Large tenoning table w/ sliding table
Tabletop sliding table
- Sliding table dimension : 350 x 265 mm
- working stroke of the sliding table: 650 mm
Movable safety fence for SS-512ML / TL (heavy duty) w/ fast adjust with handle. 2 sets of digital read-out for both side (FA-03B)
- TC1-e Tenoning Carriage / Economic type.
- It can be moved left and right; the lower table is fixed.
- TC-1 Tenoning Carriage / Heavy Duty type.
- It can be moved left and right as well as adjusted up and down
Sliding with Aluminium extension fence. (opt.)
Electric LCD read-out for spindle height (magnetic meansuring). Up/down by handwheel or up/down push button (auto-return type)
Digital read-out for spindle height. On request
- Fence assembly, FA-02(for SS-511/ 512 / 513EM series) or FA-03 (for SS-513 and PS-515 series), with 2 sets of demical indicators for the minimum diameter of the tool and removal of material. On request.
- Fence assembly, FA-02B/FA-03B
- FA-02B for SS-511,512,512L & 513EM series (for table opening 260 mm)
- FA-03B for SS-513, 513T Eplus & PS-515 series (for table opening 360 mm)
- There are 2 digital read-out at right side-one for complete fence and one for aluminium fence. At left side is with one more digital read-out for adjusting the aluminium fence.

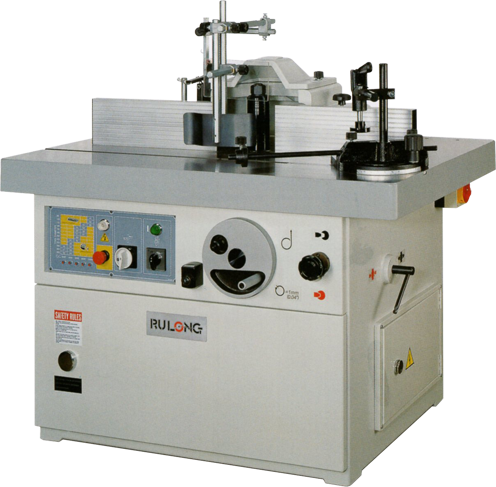

Illustration shows SS-512ML with digital read-outfor spindle height. On request

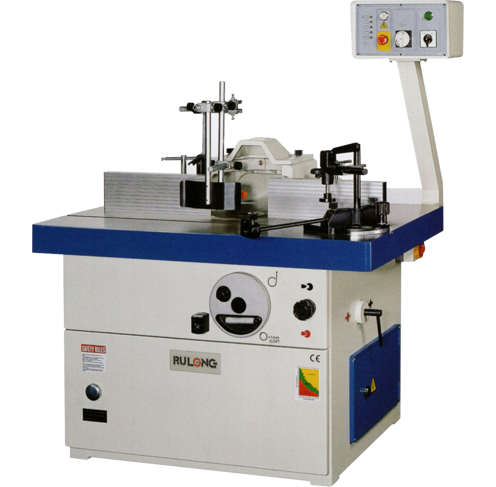

SS-512ML with hanging control panel. On request
