M-412 (Three Phase)
4-Side Planer / Moulder
Extremely compact construction
Great moulding / planing capacity
Extremely flexible performance
Affordable price
All these can be found on NEW CKM 4-side planer / moulder.
Designed for
- Farm working shop
- School shop
- Hobby
- Small furniture factory
Great Capacity M-412:
- Planing 13″(W) x 9″(D).
- 2-side planing / moulding 13-5/8″(W) x 9″(D).
- 4-side planing / moulding 12″(W) x 4″(D).
Powered Table Elevation Outstanding Features of M-412
- Three phase motor drive.
- Powerful motor drive for each spindle.
- Digital position control for accurate and easy setting.
- 7,000 rpm high spindle speed.
- Compact construction. Maximum stability.
- Variable feed speed.
- See-thru top guard.
Detail Machine of M-412
Four Cutterheads Layout
- Max. working width 12″ (300 mm)
- Max. profile depth 3/4″ (19 mm)
Centralized Control Panel
- All motion controls of the machine are centralized on the control panel, located at the left side of the machine for easy access and operation convenience.
- Each cutterhead is individually controlled on the control panel.

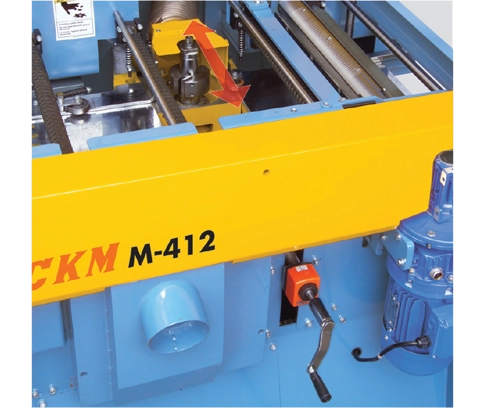

Manual Table Elevation
- The entire table can be raised or lowered by manually turning a lever through worm gear transmission for effortless elevation
- Equipped with a mechanical meter for accurate reading of table adjustment amount.

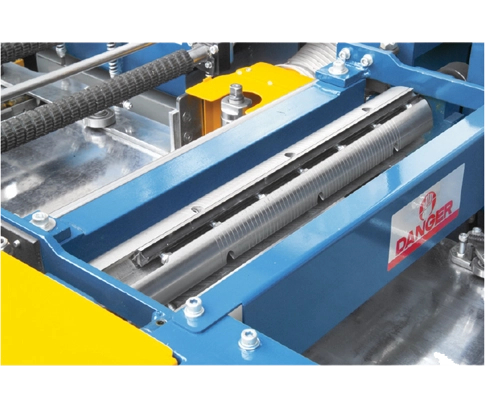

Top Horizontal Spindle
Equipped with two planer knives and two pattern knives for planing and moulding operations at a time.

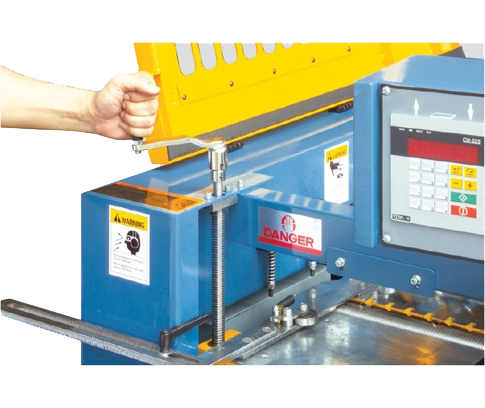

Left Vertical Spindle Adjustment
- The left vertical spindle can be adjusted in foward and backward direction to suit workpiece width.
- A front mounted mechanical meter is equipped for convenient and a accurate reading of the spindle adjustment amount.
Variable Feed Speed
- Varible feed speed is achieved through a disco type variable speed unit combined with gear reducer, making this moulder ideal for cutting soft and hard wood material.
- Variable feed speed range is 11 – 52 feet per minute.
4-Side Planer / Moulder
Efficient Dust Suction Design
The dust suction mechanisms for the right and left spindle are specially designed to achieve better suction performance.
Additional Outfeed Fence
An adjustable outfeed fence is provided at the outfeed end of the table . This additional fence ensures straight outfeed of wood especially when cutting short wood.
Table Elevation Limit Switches
The table raising and lowering limit are controlled by top and bottom limit switches to avoid accident of over-travel.
Dependable Control Circuit
The control circuit inside the electric cabinet consists of high quality electronic components, that assures dependable control and long service life.
Durable Table
- The table is manufactured from high quality cast iron and scientifically rib reinforced without deformation.
- The table surface are hard-chrome plated and precision ground for maximum wear resistance.
Infeed Fence (Optional)
- The infeed fence is extruded from aluminum alloy and anode treated for durability.
- Standard length of infeed fence is 1250mm.
Infeed and Outfeed Table Extension (Optional)
- The moulder is available to equip with table extensions at infeed and outfeed end . They provide solid support for big wood.
- The in feed and outfeed table are made of steel plate. Each one measures
1210mm(L)x317mm(W) on model M-410, and
1210mm(L)x362mm(W) on model M-412.
Optional Accessories of M-412
Dust Blower (Optional)
- The dust blower is driven by a 3 HP motor, single or three phase power.
- Designed with 4 dust suction ports.
Profiled Knife Grinder (Optional)
- Designed for grinding the profile of knife.
- Profile is reproduced by an acrylic template.
- Equipped with one diamond dresser.
Universal Knife Grinder (Optional)
- Designed for sharpening straight knife and profile knife.
- Foot switch control for convenience.
Vertical Spindle Cutter (Optional)
- Cutter height range 38 and 100 mm (1/2″ and 4″).
- Choice of two cutter configuration.
Easy mobility (Optional)
- The moulder is equipped with four wheels at the four corners for easy movement by only one person.
- The operator may treadle on the foot plate for raising the machine when moving the machine is required.
Two Cutting Angles on One Cutter
4-knife cutter can be mounted with two different cutting angles of knives, allowing for cutting soft and hard wood.
C-30HP. / C-40HP. / C-50HP.
Automatically Operated Rotary Phase Converter
- Suitable for converting 230V, 1 phase to 230V, 3 phase power.
- Multiple motor control within the 95% of the rated horsepower.
Model Name Plate Load
C-30HP 30HP
C-40HP 40HP
C-50HP 50HP
Permissible Load 95%
Profile Knives of M-412 | M-410 | M-410S
Knives Combination of M-412 | M-410 | M-410S
Knives of M-412 | M-410 | M-410S
Specification 4-side Planer/Moulder
| Model | M-412 (Three Phase) |
|---|---|
| Planing | |
| Width | 365 mm |
| Depth | 12 - 230 mm |
| 2-side planing / moulding | |
| Width | 346 mm |
| Depth | 12 - 230 mm |
| 4-side planing / moulding | |
| Width | 0 - 306 mm |
| Depth | 12 - 100 mm |
| Top horizontal spindle | |
| Width | 465 mm |
| Max. moulding depth | 19 mm |
| Max. planing depth | 8 mm |
| Speed | 7000 rpm |
| Cutterhead diameter | 72 mm |
| Motor | 7-1/2 HP (5.5 kW) x 1 |
| Bottom horizontal spindle | |
| Width | 346 mm |
| Max. moulding depth | 5 mm |
| Max. planing depth | 6 mm |
| Speed | 7000 rpm |
| Cutterhead diameter | 72 mm |
| Motor | 5 HP (3.7 kW) x 1 |
| Right and left vertical spindle | |
| Max. cutting height | 100 mm |
| Max. cutting depth | 21 mm |
| Spindle diameter | 31.75 mm |
| Max. cutter head diameter | 140 mm |
| Speed | 7000 rpm |
| Cutterhead diameter | 90 mm |
| Motor | 4.1 HP (3 kW) x 2 |
| Table | |
| Area | 1125 x 685 mm |
| Elevation | 230 mm |
| lPower table (raise) | 120 w x 1 |
| Feed system | |
| Speed (variable) | 11 - 52 ft/min |
| Motor | ½ HP (0.375 kW) x 1 |
| Dust hood outlet | 101.6 mm x 4 |
| Machine size | |
| Machine dimensions (L x W x H) | 1485 x 1265 x 1216 mm |
| Net weight | 645 kgs |
| Grosh weight | 730 kgs |
