Hypermac Series – 4-Side Moulder

Feed speed : 6 – 36 m/min
Feed motor : 7.5 HP/inverter
Spindle : 6000 rpm

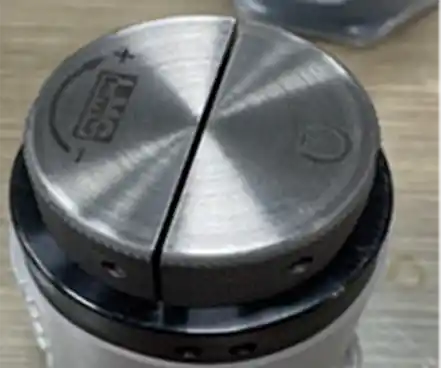

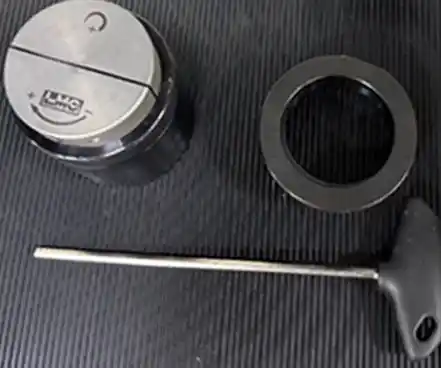

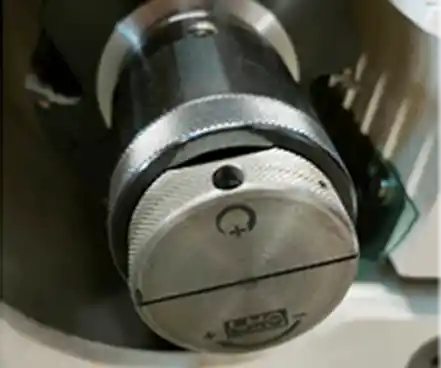

Quick Release Spindle Nut

Compatible with standard spindle, fast, easy operation, and user-friendly

Easyset

• SCHNEIDER 10.1” HMI (Memory 200sets)
• 2NC controls for 3rd spindle (radial) 4th & 5th spindle (radial) – moving together
• 1 NC control for the height of the feedbeam

Standard Features

1. Sound and safety enclosure.
   – The entire machine is covered to reduce noise and safety working environment.
2. Harden chromed for entire feeding table.
   – 0.3 mm harden chromed on its surface to last its serving life.
3. 3 Stage pressure setting of feed roller.
   – Pneumatic roller pressure compensates for large variances in work piece thickness. The max. air pressure setting is 6 bar.
4. Auto oil lubrication for feeding table.
   – To supply oil on the 2 point of feeding table with timer control.
5. 2 meter infeed table.
   – Adjustment range for infeed table and edge-jointing fence is 10 mm
   – Infeed fence with reference engraving
   – Without hardened chrome for infeed fence and entire fence.
6. One piece full case iron body.
   – Heavy duty element made of high quality cast metal with optimized vibration absorption characteristics are the best for the smooth running feedwork and spindle performance.
7. NC controller for auto setting thickness and width
   – Moulder operated from the front side, both axis as setting thickness & width are equiped with auto position digital readouts, which provide a quicker on set up time
8. Power driven upper roller steel rollers before top spindle, rubber rollers after top spindle under standard spindle arrangement and 6 units of bottom roller are equipped with power driven roller on the feed table.
   – Both upper and bottom feed driven by universal joint drive with no chains prevent stock free, more robust, low maintenance, longer service life and more accurate.
9. High precision spindle with the high speed bearing except multiple rip saw spindle.
10. Documentation
    – Maintenance manual, operation manual, electrical diagrams and parts list.
11. Cutter tool-1st spindle with TCT solid cutter, edge reference cutter and other spindle come with TCT solid cutter.
12. Tool box.
13. Without CE standard.
14. Adjustment range of vertical spindle (axial) max. 40 mm.
15. Adjustment range of horizontal spindle (axial) max. 20 mm.
