JX-SC3200-5 / JX-SC4200-5
CNC Mortising Machine
CNC machining efficient mass mortise
- No need to program, the program is automatically generated on the point
- Shaped workpieces, different groove lengths/depths are processed in one pass
5-axis multi-station, high speed continuous milling, one set of workpieces can be disassembled at the same time, and the production efficiency is high
High precision, CNC input and output, to ensure that each group of workpieces is exactly the same.
It adopts Guangzhou Qi core system, which is convenient to adjust, reliable in control, convenient, and easy to learn. It uses the tool holder to perform tool setting. It does not need to be programmed. The machining program is automatically generated on the point. It can be processed automatically by pressing the confirmation button.
This equipment is suitable for processing all kinds of workpieces with different sizes and shapes. It has strong practicability, especially for processing arc-shaped holes, elliptical holes and special-shaped holes. It can process complex planes, different lengths and depths of the same workpiece and complex shaped workpieces in one process.

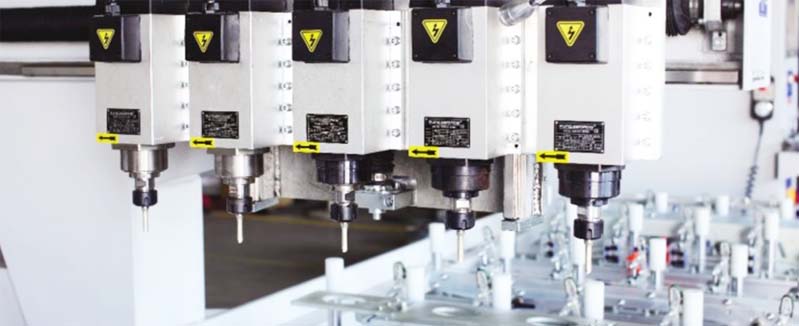

The single row of 5 cutter heads can be used to hold a variety of different tools for machining

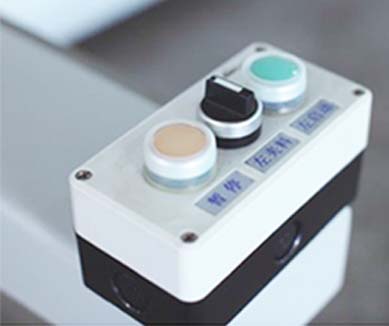

Intuitive, easy to learn CNC system

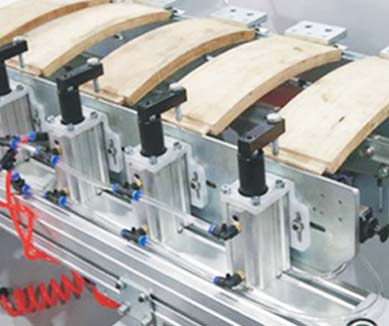

Widening the workpiece device (Optional)
Spesifikasi JX-SC3200-5
| MODEL | JX-SC3200-5 |
|---|---|
| Max. Stroke of X Axis | 3200 mm |
| Max. Stroke of Y Axis | 800 mm |
| Max. Stroke of Z Axis | 300 mm |
| Max. Working Width | 130 mm |
| X Axis Power | 2 Kw |
| Y Axis Power | 1 Kw |
| Z Axis Power | 1 Kw |
| Spindle Speed | 18000 r/min |
| Spindle Power | 3.7 Kw X 5 |
| Spindle Wheelbase | 192 mm |
| Max. Working Speed | 40 m/min |
| Dimesions | 4800 X 2300 X 2400 mm |
| Loading And Unloading Size | 4800 X 1900 X 2400 mm |
Spesifikasi JX-SC4200-5
| MODEL | JX-SC4200-5 |
|---|---|
| Max. Stroke of X Axis | 4200 mm |
| Max. Stroke of Y Axis | 800 mm |
| Max. Stroke of Z Axis | 300 mm |
| Max. Working Width | 130 mm |
| X Axis Power | 2 Kw |
| Y Axis Power | 1 Kw |
| Z Axis Power | 1 Kw |
| Spindle Speed | 18000 r/min |
| Spindle Power | 3.7 Kw X 5 |
| Spindle Wheelbase | 192 mm |
| Max. Working Speed | 40 m/min |
| Dimesions | 6100 X 2300 X 2400 mm |
| Loading And Unloading Size | 6100 X 1900 X 2400 mm |
