JX-SC4200-4X2
Batch Processing With One Enemy Ten
JX-SC4200-4×2 CNC mortising machine adopts double-row 8-axis multi-station, high-speed continuous milling, and one set of workpieces can be disassembled at the same time, which has high production efficiency.
STANDARD ACCESSORIES: 2 sets @4 pcs conventional fixture
Features
- It adopts Guangzhou Qixin system, which is convenient to adjust, reliable in control, convenient and easy to learn. It uses the tool holder to perform tool setting. No need to program, the processing program is automatically generated on the point, and only need to press the confirmation button to automatically process.
- High precision, CNC input and output, to ensure that each group of workpieces is exactly the same
- This equipment is suitable for processing all kinds of workpieces with different sizes and shapes. It has strong praticability, especially for processing are-shaped holes, elliptical holes and special-shaped holes. It can process complex planes, different lengths and depths of the same workpiece, and complex shaped workpieces in one process.

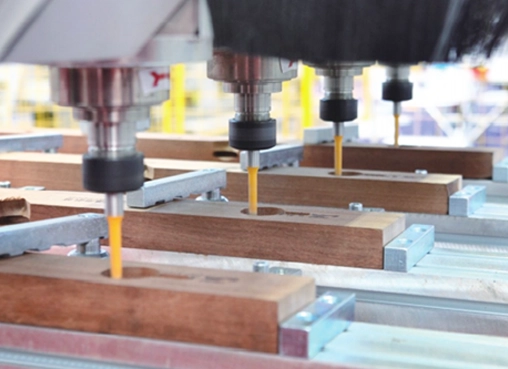

Double row 8 cutter head design, can hold a variety of different tools for processing

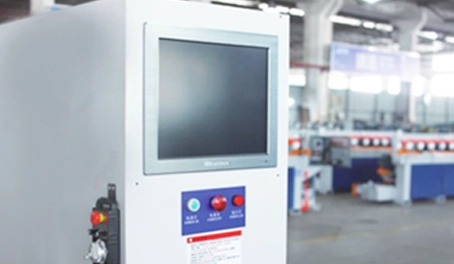

Control PC and CNC system CNC custom application combination
Intuitive easy to learn CNC system
Excellent components, low noise and long life

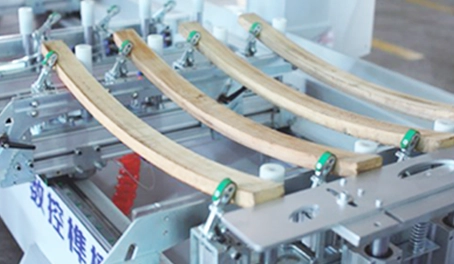

Multi-point fixed workpiece clamp
Servo motor
| MODEL | JX-SC4200-4X2 |
|---|---|
| Max. Stroke of X Axis | 4200 mm |
| Max. Stroke of Y Axis | 800 mm |
| Max. Stroke of Z Axis | 300 mm |
| Max. Working Witdh | 130 mm |
| X Axis Power | 2 Kw |
| Y Axis Power | 1 Kw |
| Z Axis Power | 1.5 Kw |
| Spindle Speed | 18000 r/min |
| Spindle Power | 3.7 Kw x 8 |
| Spindle Wheelbase | 192 mm |
| Max. Working Speed | 40 m/min |
| Dimensions | 6100 x2300 x 2400 mm |
| Loading And Unloading Size | 6100 x 1900 x 2400 mm |
