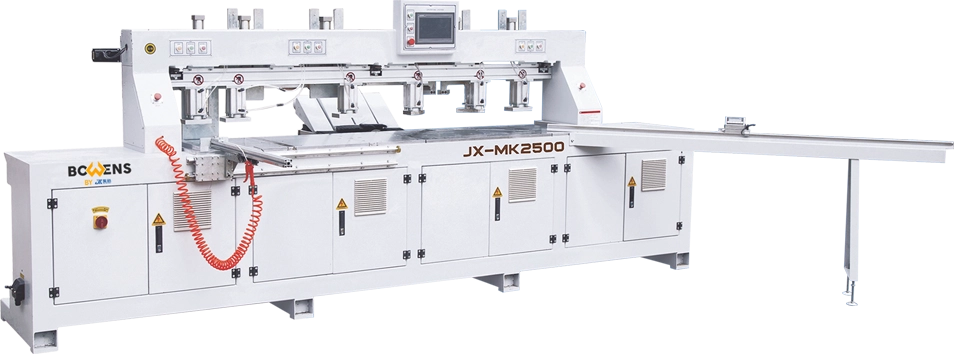

Door Frame Machining Center

JX-MK2500

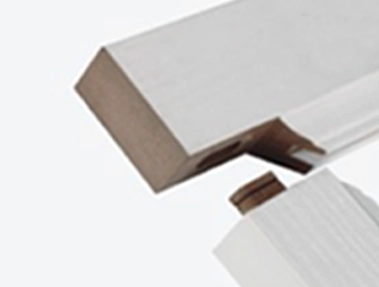

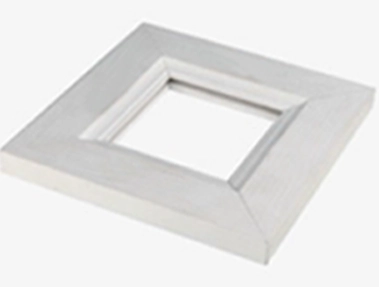

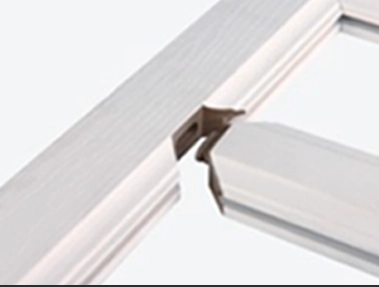

Process frame products and assembly doors for various materials such as plate and solid wood

This machine is equipped with 45°, 90°, 135° and has three axis groove machine
Moreover, a plurality of gutters on the long workpiece can be clamped without changing the tool and repositioning, thereby improving work efficiency and avoiding dimensional errors caused by multiple positioning

Touch screen type parameter input correction, able to pre-store multiple parameters, easy to switch, easy to operate.
The graphic file has parameterized settings, the size and position of the blinking eye, and the tightness are automatically adjusted after setting on the operation interface. There are 4 straight plates and 2 45 degree plates, which can be used for multi-turn type and multi-station processing. The work table is long and can process long material long and can process long materials.
Lubrication system: It has the function of timing oil supply according to the accumulated processing time.
Dust-proof system: brush cleaning + vacuum.
System Computer docking function (support U disk access) optimize the processing path according to the processing technology requirements.
It has the function of peeling, to prevent the board from chipping, and the processing of the steamed bread and the blinking shape is smooth and beautiful.

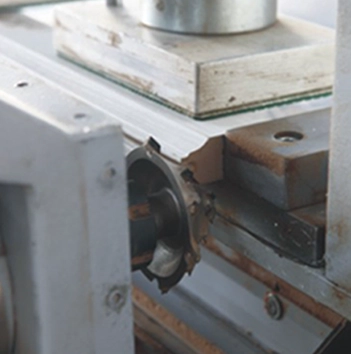

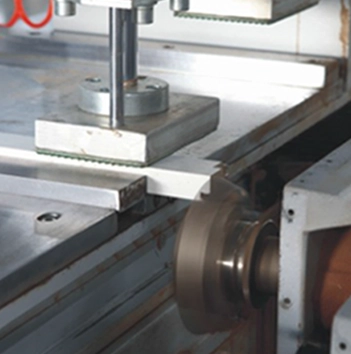

90° end milling precision machining

45° end milling precision machining

135° milling precision machining

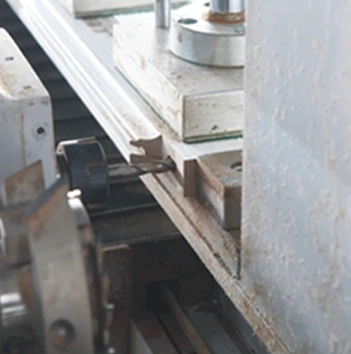

135° drilling precision machining

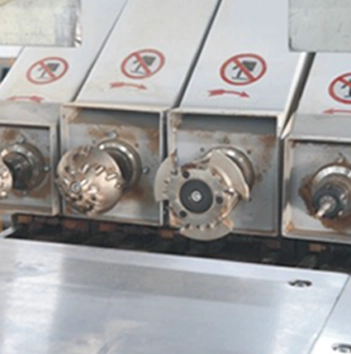

4 spindle drilling and milling processing group

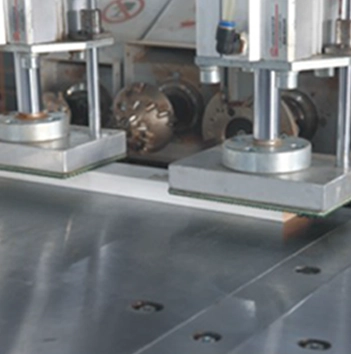

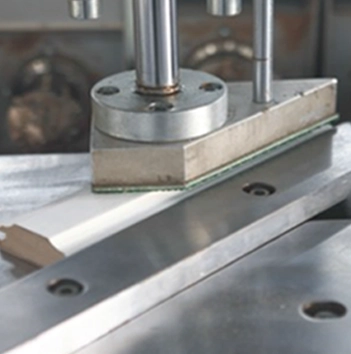

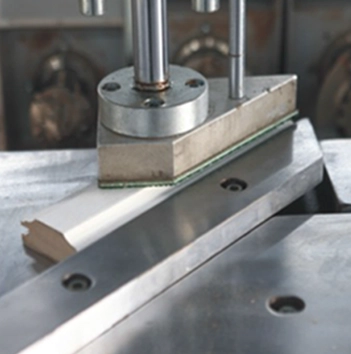

Penumatic press device

Automatic lifting and lowering device

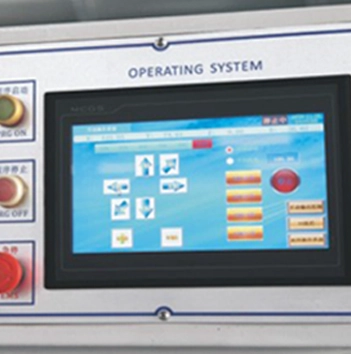

Touch screen control system

MODEL	JX-MK2500
45° Bread Width	0-200 mm
45° Bread Depth	10-30 mm
90° Bread Width	0-200 mm
90° Bread Depth	10-45 mm
135° Bread Width	0-150 mm
135° Bread Depth	10-30 mm
Rotary Speed	12000 r/min
Wink Bit Speed	18000 r/min
Rake Shaft Power	5.5kw X 2
Mortise Shaft Power	3.7kw X 2
Drill Diameter	Ø3 - Ø16 mm
Milling Cutter Shaft Diameter	Ø30 mm
Max. Processing Thickness	80 mm
Max. Processing Length	2500 mm
Total Power	24kw
Dimensions	4350 X 1600 X 1800 mm
