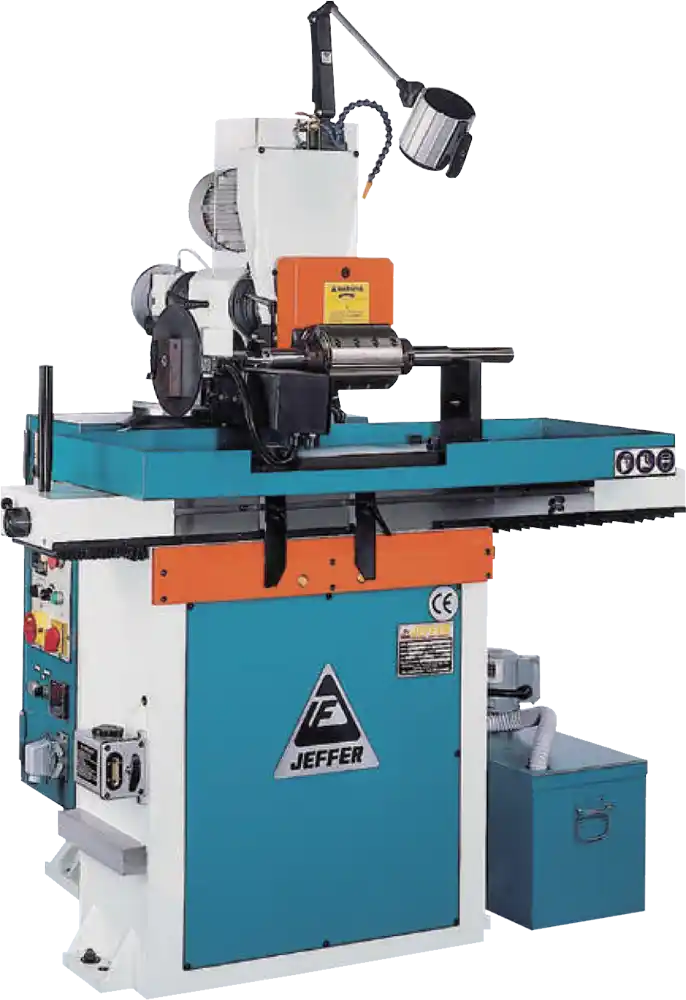

JF-412
Automatic Planer Cutterhead Grinder
- Automatic grinding precisely for high speed steel cutterhead.
- Using this patent tool rest can get tools grinding precisely.
- The concentricity is within ± 0.005 mm and with good durability.
Optional attachment:

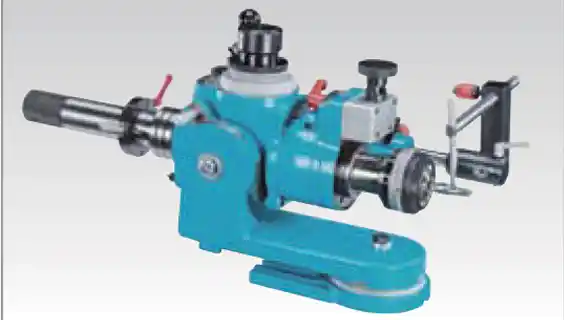

Helical grinding attachment (manual grinding)
Planer cutterhead grinding attachment
Specification Automatic Planer Cutterhead Grinder
| Model | JF412 |
|---|---|
| Planer cutterhead (dia.) | ⌀ 125 - 250 mm |
| Width | 300 mm |
| Max. work table | 400 mm |
| Grinding wheel size (dia. x bore) | ⌀ 175 x 20 mm |
| Speed of grinding wheel | 2800 rpm (50 Hz) 3000 rpm (60 Hz) |
| Grinding wheel motor | 2 HP |
| Cooling system motor | ⅛ HP |
| Automatic table motor | Hydraulic motor 1 HP |
| Dividing head motor | Brushless motor 40 W |
| Grinding wheel up and down motor | ⅓ HP |
| Machine size | 1400 x 1120 x 1730 mm |
| Packing size | 1600 x 1440 x 1900 mm |
| Net weight | 1050 kgs |
| Gross weight | 1300 kgs |
