HP-380
Computer Panel Saw Front Feeding
Intelligent sizing, maximum efficiency and productivity (front feeding)
- Enhanced PC control
- Independent motor for main saw (15 kW)
- Independent motor for grooving saw (2.2 kW)
- Blade carriage is driven by servo, driven by gear and pinion
- Pneumatic side aligner
- Quick replacement of saw blade
- Controlled by industrial computer
- Optimize typesetting software, label printer
- First feeding table length is 3800 mm
- 1800 mm length feeding aligning panel to ensure feeding correctly
- Manual scoring blade adjustment
Standard Configuration

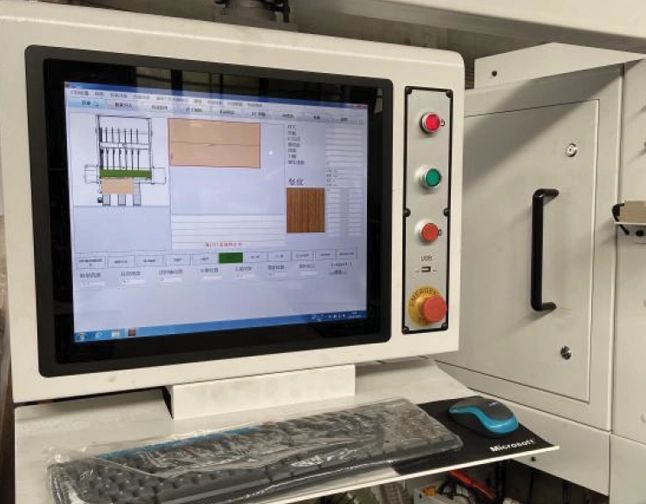

Industrial Computer

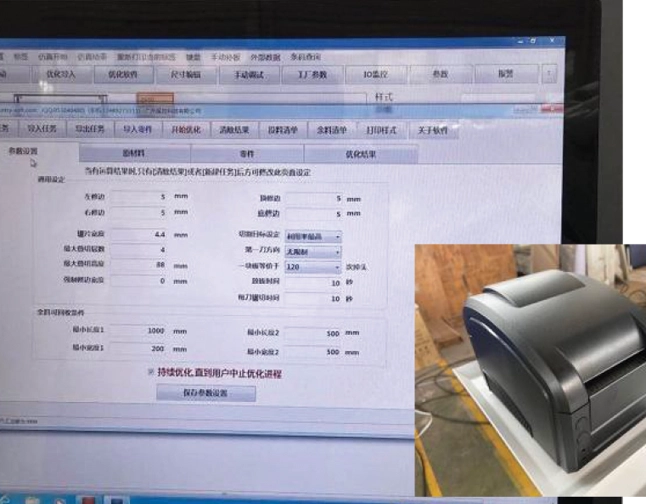

Optimal Software+ Label Printer

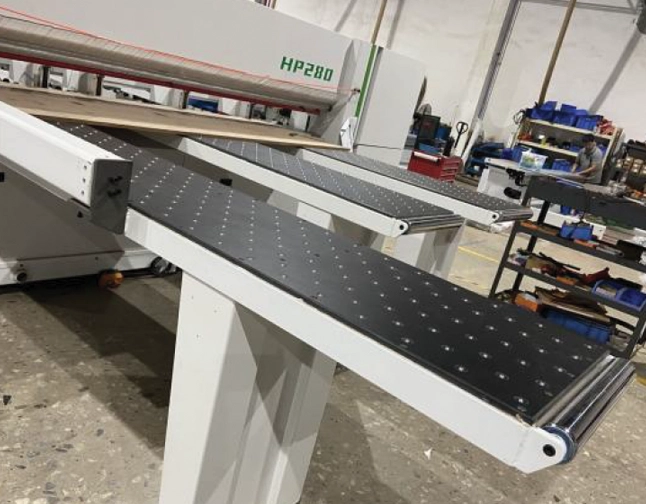

Air Floating Loading Platform

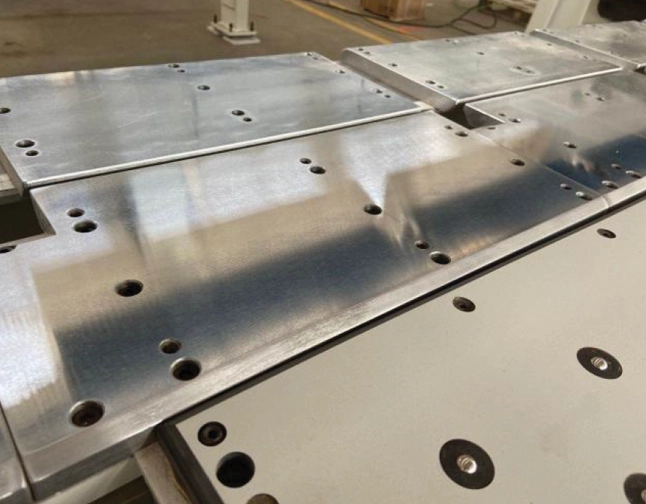

High Quality Chrome Plated Steel Metal Platform

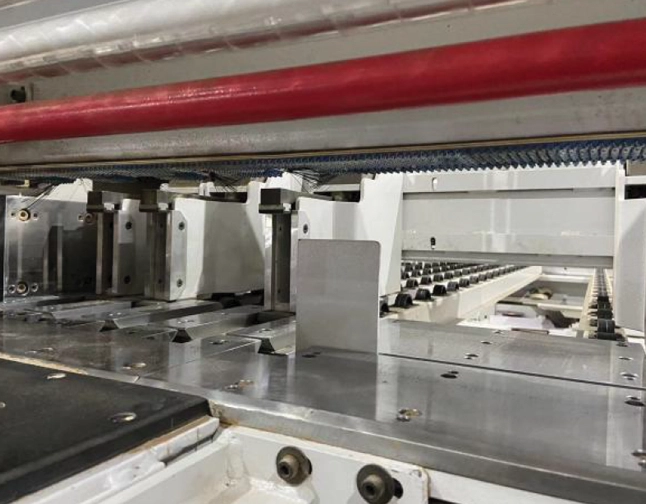

Pneumatic Side Aligner Panel

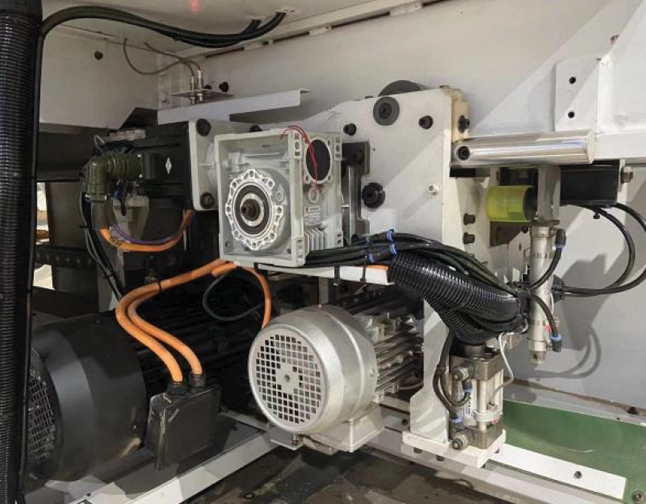

New Saw Carriage Mechanism

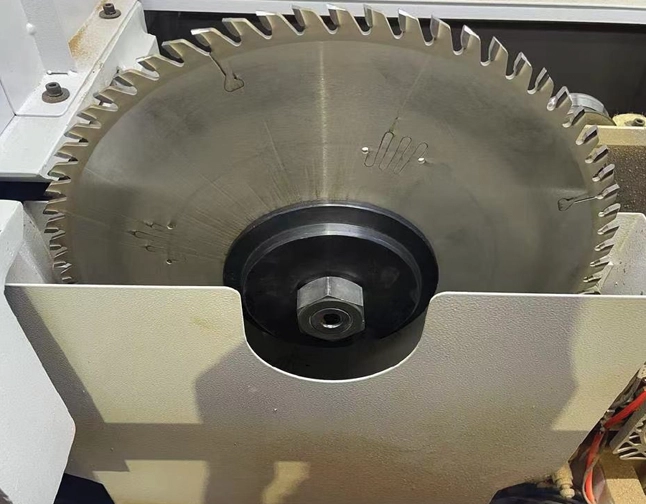

Precision Main Saw

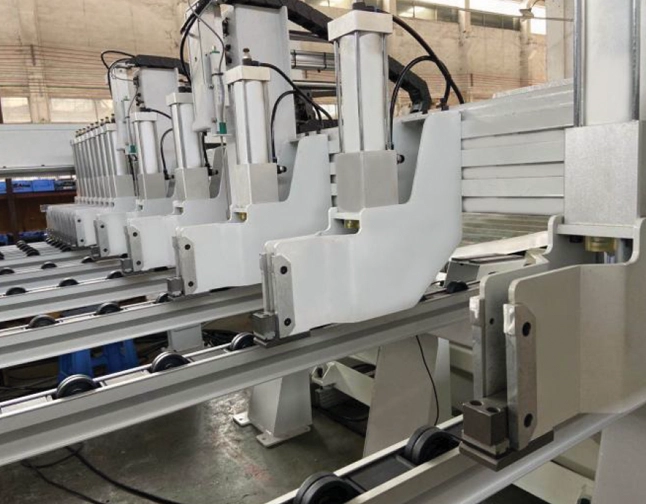

High Precision Clamp

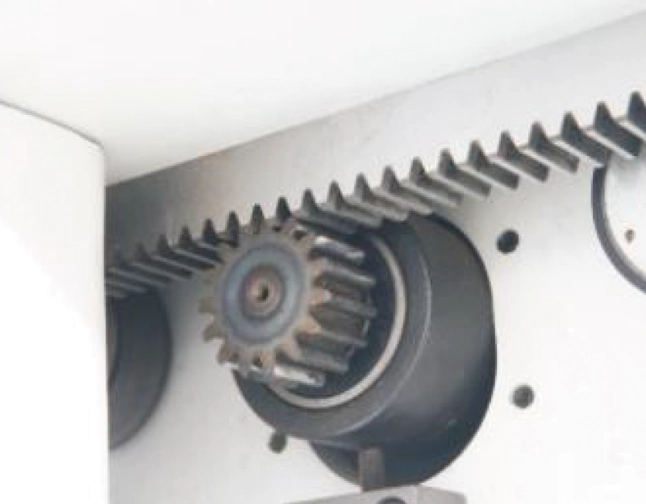

Rack Transmission

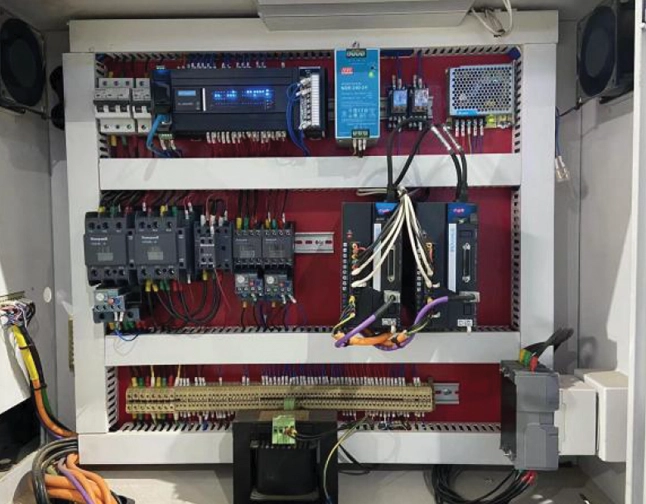

Stable Electronic Control System
Specification of HP380
| Model | HP-380 |
|---|---|
| Max. cutting length | 3800 mm |
| Max. cutting width | 3800 mm |
| Max. height of saw blade | 120 mm intelligent lifting |
| Main saw blade | 450 x 4.4 / 3.2 x 75 x 72T x 15/105 |
| Groove saw blade | 160 x 4.3 / 3.2 x 45 x 24T |
| Blade carriage forward speed | 5 - 100 m/min |
| Blade carriage backward speed | 0 - 100 m/min |
| Gripper forward speed | 0 - 100 m/min |
| Gripper backward speed | 0 - 100 m/min |
| Side aligner | Pneumatic align panel |
| Main saw shaft motor power | 15 kW (18.5 kW optional) |
| Motor power of grooving saw shaft | 2.2 kW |
| Saw servo motor | 1.8 kW |
| Feeding servo motor | 1.8 kW |
| Gripper quantity | 10 pcs |
| High pressure fan of air floating platform | 2.2 kW |
| Machine footprint | 7650 x 6100 x 1850 mm |
Discover More Computer Panel Saw Machine
*Machine picture shown is reference only
HP290
Computer Panel Saw Front Feeding Machine
HP290 delivers high efficiency with a computerized cutting system and front feeding, making it ideal for medium to large-scale furniture production.
*Machine picture shown is reference only
HP330
Automatic Running Saw Machine
HP330 offers high performance with a precise automatic cutting system, making it ideal for medium to large-capacity panel production lines.
*Machine picture shown is reference only

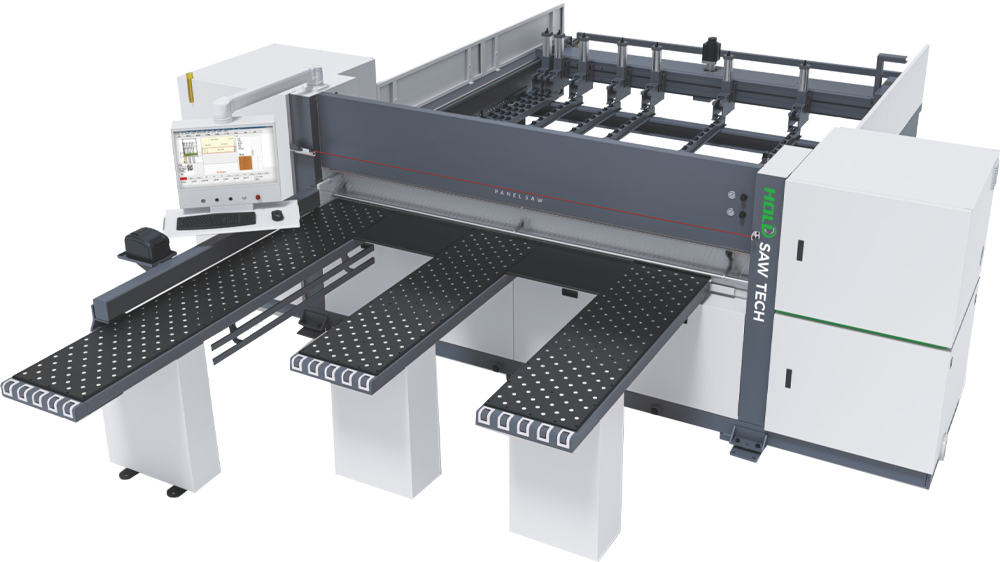

HP430
