HP-330
Automatic Running Saw
- 1800 mm long positioning fence: ensures accuracy during panel loading.
- First air flotation table length of 2800 mm: suitable for processing panels of various size.
- Intelligent pressure beam lifting: automatically adjust lifting height based on panel thickness, reducing air cylinder idle travel and improving cutting efficiency by 25%.
- Saw carriage driven by 1.8 kW servo motor: uses gear and rack transmission, with a maximum cutting speed of 100 m/min and maximum return speed of 100 m/min
- Feeding shaft driven by 1.8 kW servo motor: also uses gear and rack transmission, with a maximum forward speed of 100 m/min and maximum speed of 100 m/min.
- Table surface made of chrome-plated steel plate: ensures excellent cutting without scratching the panel. Special design makes it suitable for booth wood panels and aluminum honeycomb panels.
- Integrated touch screen industrial computer: simple and convenient to operate.
- PC control system: easy, safe and reliable operation with complete operational instructions and troubleshooting guidance.
- PC control system: allows editing and management of cutting plans and tasks, as well as simulation of cutting processes.
- PC control system comopatibility: integrated with various cutting optimization software, barcode management systems, and factory automation systems.
- Smart saw carriage positioning: automatically positions itself based on panel width to minimize travel distance and improve cutting efficiency.
- Saw carriage precision machining after welded steel plate structure: ensures high accuracy.
- Four point support of saw carriage: guarantees balanced force distribution during operation for optimal cutting results.
- Pressure beam made from bent and welded steel plates: machined as a whole to ensure precision, resistant to deformation during repeated use, ensuring consistent cutting quality of multiple boards.
Standard Configuration

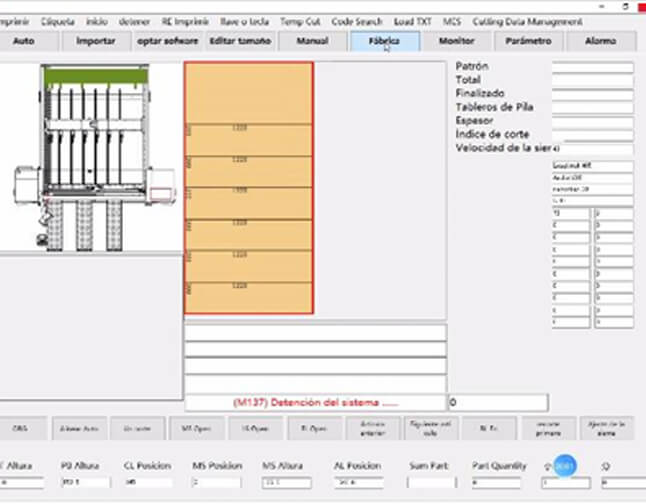

Industrial Control Computer

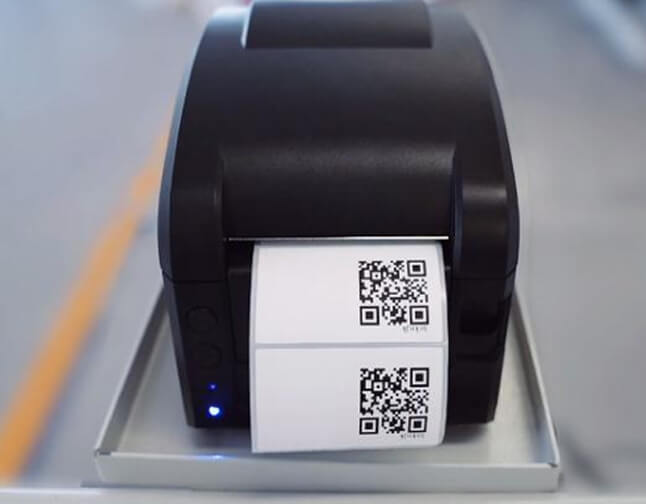

Label Printer

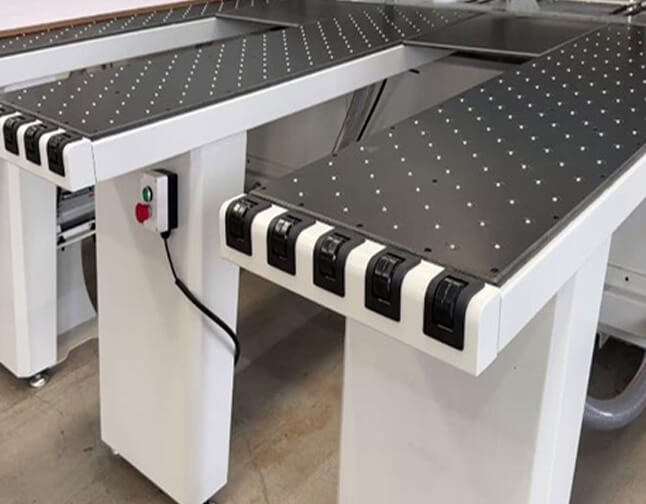

Air Cushioned Feeding Platform

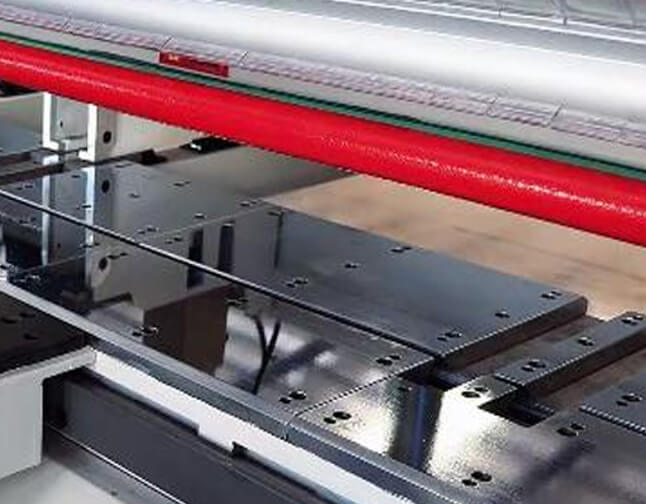

High Quality Chrome Plated Steel Table Surface

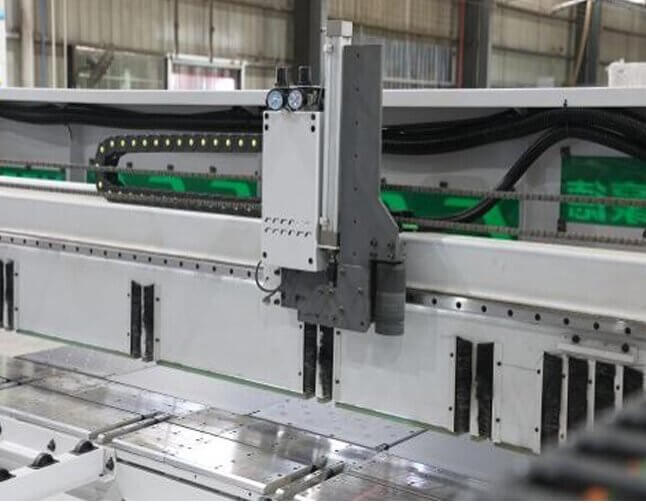

Upper Side Support

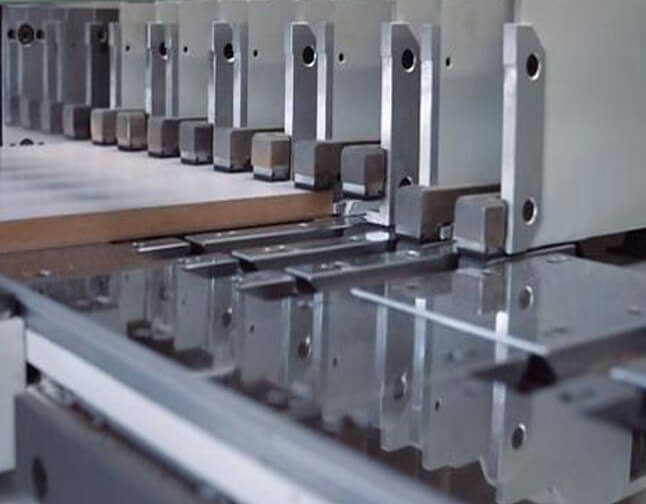

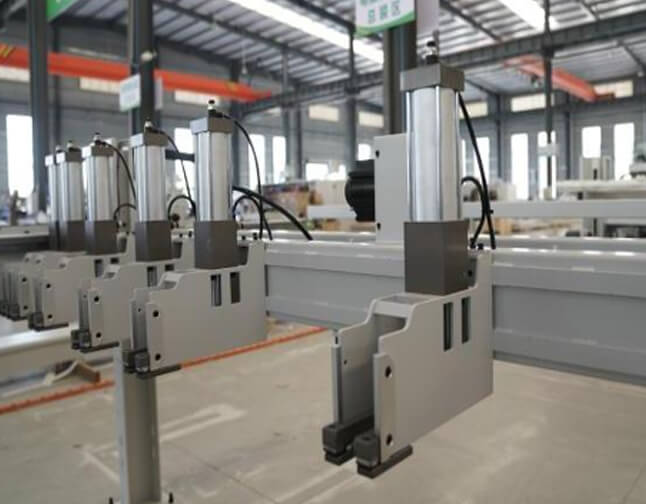

Rubber Coated Dual Finger Grippers
High Precision Panel Gripping Mechanical Arm

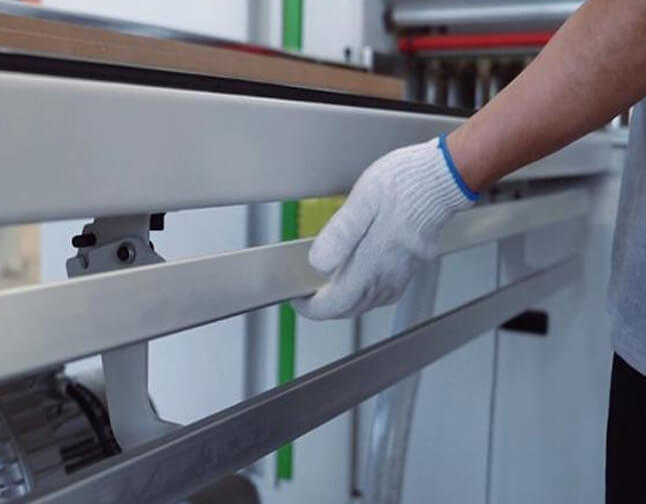

Quick Start Pull Lever

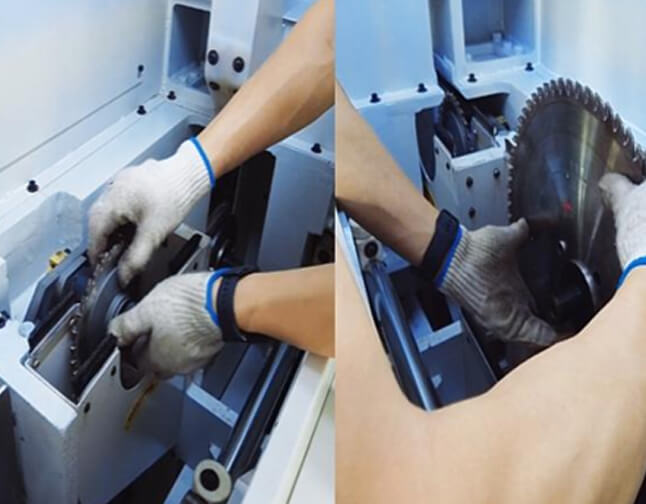

Quick Saw Blade Replacement
Specification of Automatic Running Saw Machine
| Model | HP330 |
|---|---|
| Weight | 4600 kg |
| Total power | 23 kW |

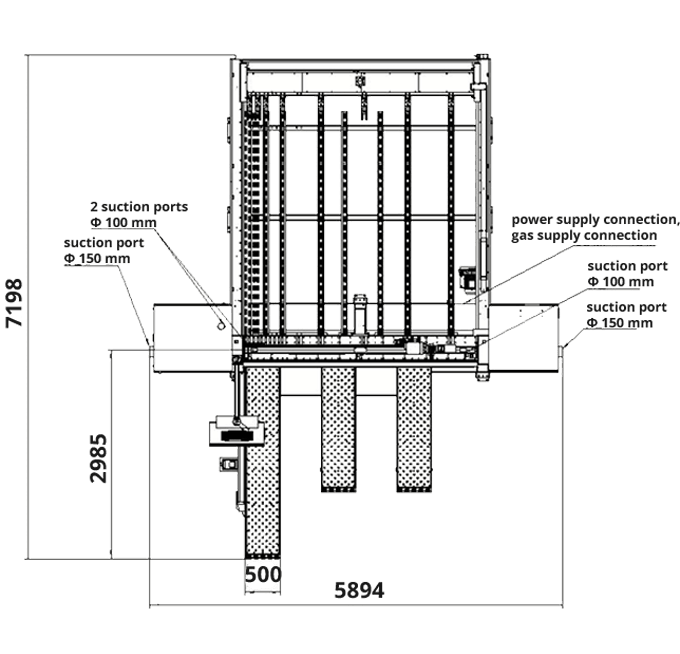

| Machine size | 7200 x 5900 x 1850 mm |
| Packing | 5900 x 1150 x 1900 mm 4100 x 920 x 1000 mm |
| Cutting length | 3300 mm |
| Cutting width | 3300 mm |
| Cutting height | 100 mm (standard) / 120 mm (optional intelligent lifting) |
| Main saw blade | 400 x 4.4 x 75 x 84 (standard) 450 x 4.4 x 75 x 84T (optional) |
| Grooving saw blade | 160 x 4.3 / 3.2 x 45 x 24T |
| Saw carriage feed speed | 0 - 100 m/min |
| Saw carriage return speed | 0 - 100 m/min |
| Manipulator feed speed | 0 - 100 m/min |
| Manipulator return speed | 0 - 100 m/min |
| Side press device | Pneumatic aligner |
| Main saw motor power | 15 kW (optional 18.5 kW) |
| Grooving saw motor power | 2.2 kW |
| Saw carriage servo motor | 1.8 kW |
| Feeding servo motor | 1.8 kW |
| Gripper quantity | 8 pcs |
| Blower power | 2.2 kW |
* The above parameters and functions are subject to change without prior notice, the actual machine shall prevail.
