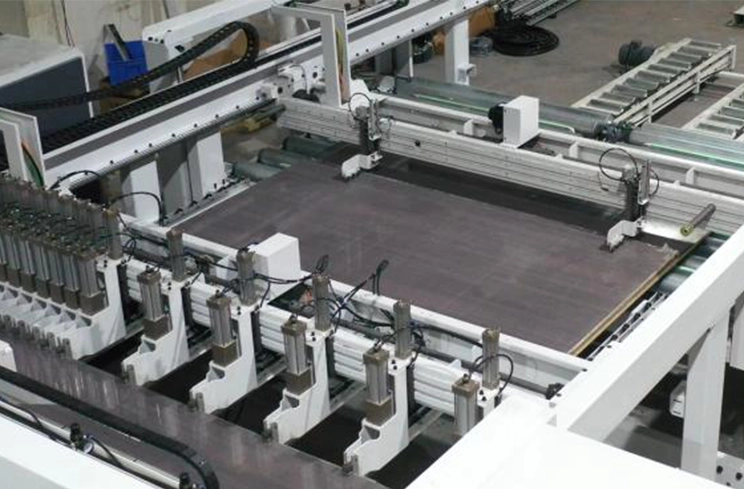

*Machine picture shown is reference only
HP-330HB
Automatic Panel Saw Machine
- Double pusher beam
- Feeding and pushing are carried out simultaneously

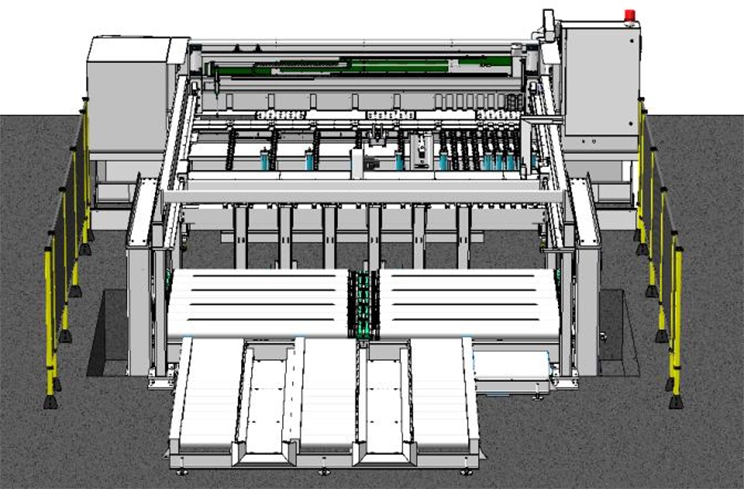

Processing Schematic Drawing
Steel Strip Drive Lifter
One Pusher for Machining and One Pusher for Rear Feeding
Dual Pneumatic Ruler
Pneumatic Saw Lock/Unlock Shaft
Chrome Treatment Steel Working Table
Exclusive Developed Control System
Ball Screw Driven Lifting System
Heavy Duty Rear Loading
Specification of HP330HB
| Model | HP330HB |
|---|---|
| Feeding method | Rear feeding with double pusher beams |
| Max. cutting length | 3250 mm |
| Max. cutting width | 3300 mm |
| Max. height of blade | 120 mm intelligent lifting |
| Main saw blade | 450 x 4.4 / 3.2 x 75 x 72T x 15 / 105 |
| Scoring saw blade | 160 x 5.3 / 3.2 x 45 x 24T |
| Forward speed of saw carriage | 5 - 100 m/min |
| Backward speed of saw carriage | 0 - 100 m/min |
| Forward speed of mechanical grippers | 0 - 100 m/min |
| Backward speed of mechanical grippers | 0 - 100 m/min |
| Side pressure device | Pneumatic double side pressing wheels |
| Motor power of main saw shaft | 22 kW |
| Motor power of scoring saw shaft | 2.2 kW |
| Saw carriage servo motor | 1.8 kW |
| Feeding shaft motor | 1.8 kW |
| Mechanical gripper's quantity | 10 pcs |
| High pressure blower of air floating table | 2.2 kW |
| Rear feeding table's dimensions | 3800 x 1850 x 1200mm |
| Machine overall size | 8800 x 5400 x 2220 mm |
| Weight | about 11000 kg |
| Minimum cutting size | 30 x 30 mm |
| Total power | 37 kW |
