Double Rolling Edge Spraying Machine

Suitable for UV primer coating
Machine length: approximately 7 meters, floor width: 1.2 meters
Conveying speed: 10-20 m/min
The entire machine adopts Taiwan rectangular PLC control. The conveyor motor is from Taiwan’s Tengwan brand. Electronic power supply is a customized Taiwan brand. The frequency converter is a Taiwanese Shihlin brand
Electrical appliances are under the Delixi brand
Adopting a belt conveyor system

The motor is a legitimate Taiwanese brand with a reduction ratio of 1/50
Casting type lifting column, imported NSK bearing assembly is more stable
Electric lifting control for pressing material, with a motor of 0.75 kW and a ratio of 30 to 1
Customized thickened aluminum pressure beam with a height of mm
Made of 3 mm manganese steel sheet, supporting chain block transportation
Belt conveyor, made of high-temperature resistant silicone, with adjustable frequency conversion
Black thickened wheel uses aluminum plates to block light, increasing the service life of the pressing wheel
Encoder reading, precise digital display of the entire line, with automatic tracking and pushing function, protecting the service life of the rubber roller

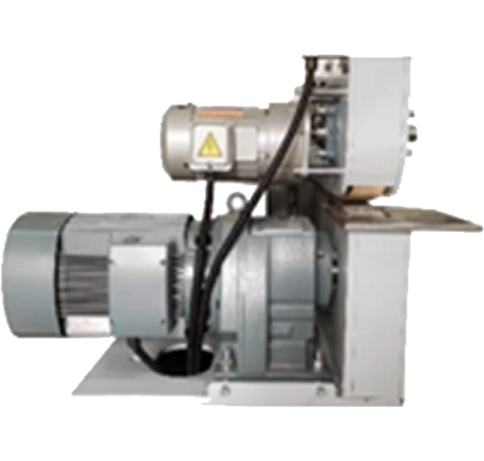

Fine chamfering cutter edge chamfering milling, milling chamfers on the upper and lower edge of the sheet metal,
R1-R3 ensures seamless connection between edge and surface paint, with double-sided automatic tracking function,
Perform arc chamgering on the edges of the workpiece; Perform a 0-45° adjustment; Excellent for small chamfers below R3

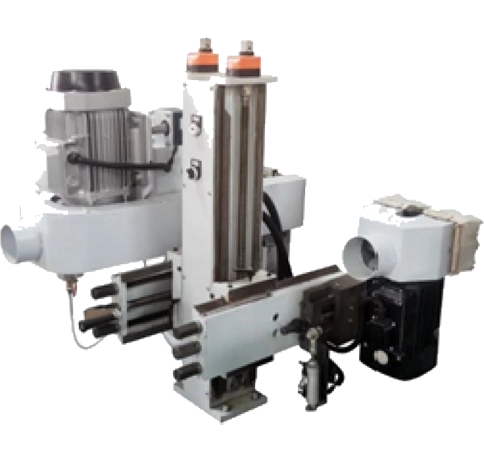

The disc sand adopts a disassembly type for easy R angle sanding.
Grinding materials for octagonal sand, profiling wheel, thousand leaf wheel, and sisal wheel
The angle can be adjusted arbitrarily, and various slopes and grooves can be locally processed
Equipped with automatic compensation function, compensation is made regularly after grinding wheel loss
The cover is detachable, making it easy to replace and calibrate the profile wheel
Equipped with a fast tensioning device, it can quickly replace the sand belt
The use of casting columns for lifting and lowering facilitates operation
Important components are processed by milling
Customized dustproof motor, more durable
All sanding motors are variable frequency adjustable
Remove burrs, oil stains, and other surface pollutants from the surface of the white embryo
Variable frequency adjustable to avoid sand penetration

The speed control of the rubber roller is driven by a variable frequency motor
The rubber roller and steel roller adopts a gear reduction motor, which will not leak oil after long-term use
Rubber rollers and steel rollers can be equipped with scrapers, which can effectively improve the coating quality
Hard chrome plated steel rollers are equipped with sensitive roller adjustment devices
Made of stainless steel paint collection tank and copper conveying oil pipe
4 or 6 paint diaphragm pump for safe feeding of paint
Supply paint through solvent resistant oil pipes, equipped with paint discharge pipes
The paint heating box is equipped with an all round water heating or oil heating box
Coating roller: made of japanese silicone material with fine grain and strong filling ability when applying paint
With memory ejection device for easy operation

The electronic power isolation style reduces heat generation and saves 20% electricity
Gallium lamp and tribute lamp, with a radiation energy of 80 watts/mm and a length of 360 mm
Aluminum reflective lampshade with good heat dissipation of the lamp tube

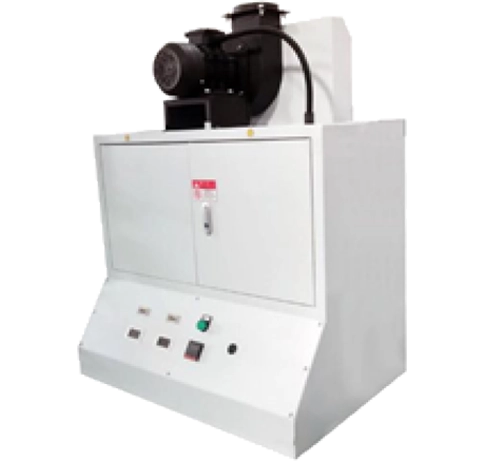

High speed temperature controlled vertical crystal centrifugal fan, used to discharge the heat generated by UV
Support frame, height adjustable
Install a UV ligth emitting display mirror on the front.
General electronic power supplies for gallium lamps and tribute lamps are all under the brand of Heishi (black stone) optoelectronics

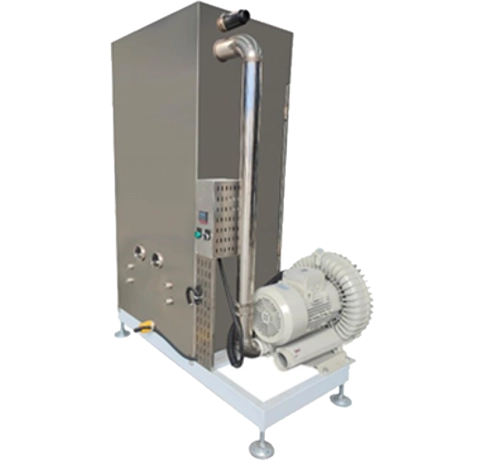

Vacuum pipeline: foldable for easy replacement of paint and easy cleaning
The speed control and frequency conversion adopt a Taiwanese brand. The paint belt filter system. The vacuum high-pressure fan is a Taiwanese brand
The suction system adopts the most advanced rapid disassembly and assembly technology
The atomization box is connected to the horizontal plane of the feeding machine
The paint is filtered using a defoamer. Paint storage box: adopting a constant temperature system with surrounding heating method. 4 or 6 point diaphragm pump for safe feeding of paint
Made of stainless steel paint collection tank and copper conveying oil pipe
Supply paint through solvent resistant oil pipes, equipped with paint discharge pipes and switches
Paint heating box: equipped with an all round water heating or oil heating box
Vacuum nozzle: made of 304 material, easy to replace, with strong painting ability
Equipped with a memory ejection device for eeasy operation
Dual vacuum box independent system, can be controlled independetly
Independent temperature control, convenient for paint temperature control
Special vacuum fan: chinese NSK bearing, convenient for folding and cleaning
The U-shaped double layer design prevents paint leakage
Equipped with leakage switch and ground wire protection to ensure safe operation of the machine
