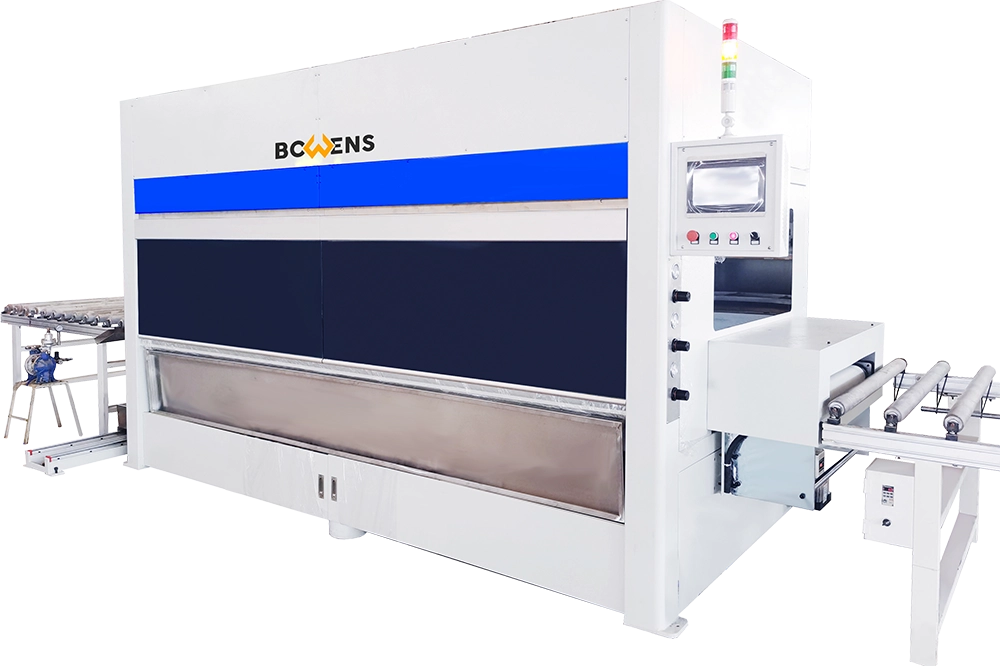

*Machine picture shown is for reference
HL-P600A
Small Reciprocating Spraying Machine
45° Angle Spraying, less energy consumption

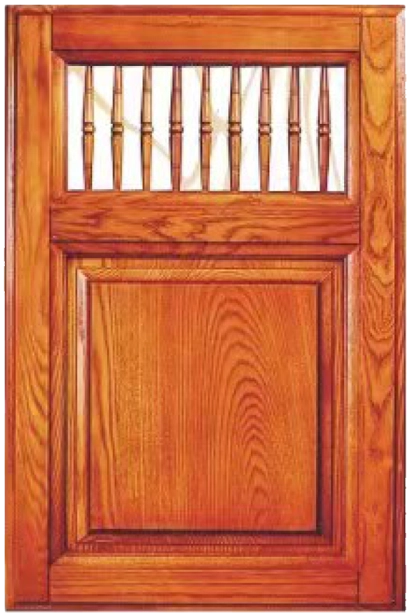

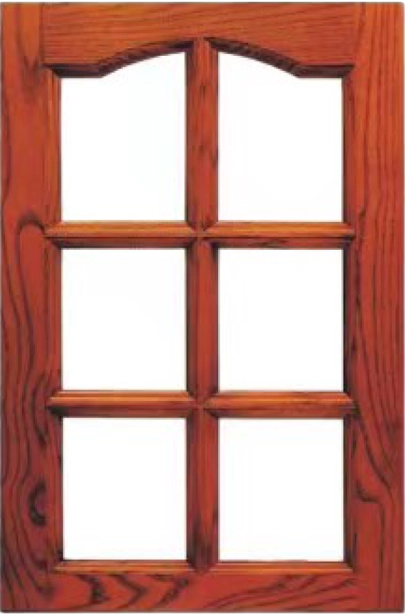

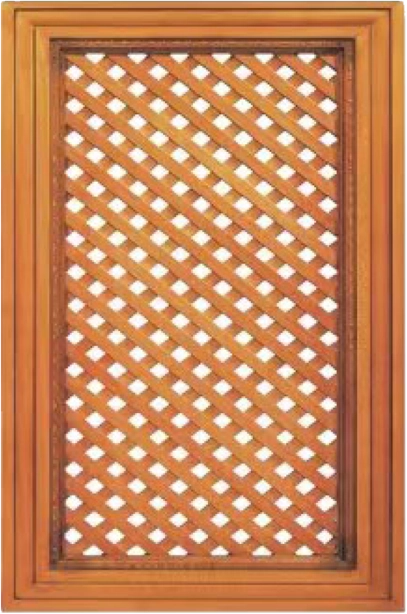

Mainly for small workpiece like cabinet, less than 600 mm
Applicable paint: Water-based paint spraying
Advantages: Saving paint, labor, low emissions, and high efficiency
Specification HL-P600A
| Model | HL-P600A |
|---|---|
| Processing length | 400 - 3000 mm |
| Processing width | 40 - 600 mm |
| Overall dimensions | 5000 x 3600 x 2800 mm |
| Total power | 18 kW |
| Processing thickness | 10 - 80 mm |
| Transfer speed | 4-6 m/min |
| Spraying guns | 4 pcs |
Configuration of HL-P600A
- Taiwan brand pressure type large flow double diaphragm pump 1 set (with regulator) equipped with pressure reducing valve and flow regulating valve, for the safe feeding of paint
- Taiwan Cnseiko spray gun 4 pcs
- 1 set of pre-pressure air intake system and air intake filtration system
- Paint mist purification water curtain and exhaust system 1 set
- The automatic painting part uses 50 mm roller feed. The center spacing is 450 mm
- Spray painting system adopts automatic spray gun, solenoid valve independent control, improve the spray effect of paint, so that the paint on the surface of the workpiece is more uniform
- The angle and width of each spray gun are adjusted manually
- The external air is purified by pre-pressure, forming positive and negative pressure in the closed paint room. The paint room is equipped with a recycling system of stainless steel paint and a water curtain exhaust gas filtration and exhaust system
- Adopt taiwan brand motor
- Induction mode: photoelectric and encoder reading mode
- Japan NSK, TR bearing high quality high-speed running bearings
- Gun structure: 4 reciprocating guns
- Stainless steel oil tank independent replacement, easy to clean
- After the product, the automatic spray
- The area of the painting room should be enlarged and widened to avoid paint fog
- Roller with protective cover, reduce paint contamination roller
- Spray painting area, inlet and outlet with fog suction device to prevent paint from running to both sides
- Structure area: belt conveying -> painting area -> belt conveying in three areas, anti skid
