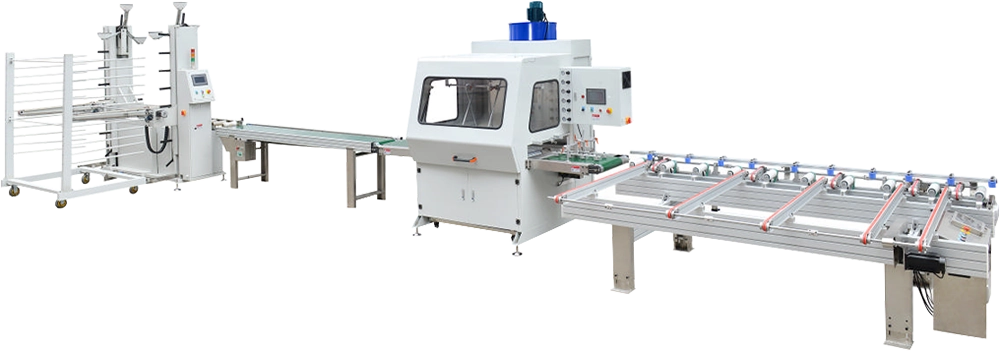

HL-P300A
Spraying Line
- Applicable paint: PU paint, water-based paint spraying
- Production line length: 11 meters. Flor width: 3 meters
- Conveying speed: 10-30 m/min
- The motor is Taiwanese brand. The spray gun is Taiwan Cnseiko brand. The frequency converter is Taiwanese Shilin brand.
- The fan is a Jiuzhou brand
- PLC is a military brand
- Low voltage electrical appliances are under the Delixi brand
Advantages of Spraying Line
- Saving paint and labor
- Low emissions
- High efficiency
Consist of Spraying Line
- 3 Meter Horizontal Feeding Machine
- 2.5 Meter Conveyor
- Automatic Shelving Machine
- Painting Machine
3 Meter Horizontal Feeding Machine
Machine use: it is practical for high-speed automatic material translation in the production line of automatic line coating process, improving production efficiency and save labor. Suitable for photo frames, curtain rods, door cover lines, corner lines, flooring, and various linear material products, Spraying water-based paint or UV curable line materials.
Features:
- The elctrical appliances used comply with CE standards
- The conveying system adopts the most advanced rapid disassembly and assembly
- Total power: 3 kW, voltage 380V, 50 Hz
Machine Configuration
- Conveyor drum: covered with silicone, with high friction, long service life, and convenient replacement due to wear. The conveyor motor adopts a stepper brand motor
- All electrical appliances and control electrical components adopt “CCC” certified brand products.
- Using japanese NSK or LK brand bearings.
- The conveyor adopts and wear resistance
- This machine adopts PLC intelligent control, automatic material collection, and intelligent adjustment
Specification 3 Meter Horizontal Feeding Machine
| Model | 3 Meter Horizontal Feeding Machine |
|---|---|
| Equipment weight | 350 kg |
| Processing width | 10 - 200 mm |
| Processing thickness | 10 - 80 mm |
| Processing length | 800 - 3000 mm |
| Overall translation width | 1000 mm |
| Conveying speed | 2-10 m/min (adjustable) |
| Working surface height | 860 +50 mm (adjustable) |
2.5 Meter Conveyor
Machine use: Used for material transportation to improve production efficiency
Machine Configuration
- adopting roller conveyor for smoother transportation
- The rack adopts a dedicated aluminum profile rack for smoother transportation
Features:
- The electrical appliacnes used comply with CE standards
- Total power: 0.4 kW, voltage 460 volts, three-phase four wire, 50 Hz
Specification 2.5 Meter Conveyor
| Model | 2.5 Meter Conveyor |
|---|---|
| Working width | 100 - 200 mm |
| Processing thickness | 10 - 80 mm |
| Processing length | 800 - 3800 mm |
| Mechanical size | 2500 x 500 x 1100 mm |
Automatic Shelving Machine
Machine use: it is practical for high-speed automatic material collection function in the production line of automation coating process, improving production efficiency and save labor. Suitable for photo frames, curtain rods, door cover lines, corner lines, flooring, and various linear material products, spraying water-based paint or UV curable line materials.
Features:
- The electrical appliances used comply with CE standards
- The conveying system adopts the most advanced rapid disassembly and assembly
- Total power: 3 kW, voltage 380V, three-phase four wire, 50 Hz
Machine Configuration
- Conveyor drum: covered with silicone, with high friction, long service life, and convenient replacement due to wear and tear
- The conveyor motor adopts Taiwanese brand. The speed control and frequency conversion adopt the Taiwan Shilin brand
- The control electrical components adopt Delixi brand
- Using Japanese NSK or LK brand bearings
- The conveyor adopts synchronous belts, with accurate positioning, no slipping, with temperature resistance and wear resistance
- All electrical appliances adopt “CCC” certified brand products
- This machine adopts PLC intelligent control, automatic material collection, and intelligent adjustment
Specification Automatic Shelving Machine
| Model | Automatic Shelving Machine |
|---|---|
| Processing width | 20 - 200 mm |
| Processing thickness | 10 - 80 mm |
| Processing length | 1600 - 3800 mm |
| Conveying speed | 10 - 40 m/min (adjustable) |
| Storage area width | 1000 mm |
| Dimensions (L x W x H) | 3440 x 2115 x 2520 mm |
| Weight (excluding storage rack) | 1100 kg |

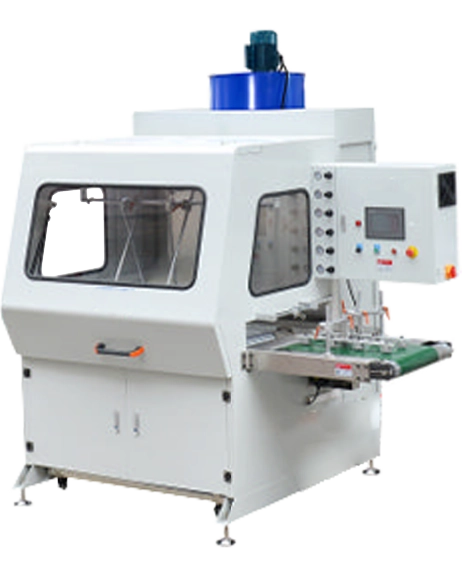

Painting Machine
Machine use: it is pratical for high-speed automatic material translation in the production line of automatic line coating process, improving production efficiency and saving workers. Suitable for photo frames, curtain rods, door cover lines, corner lines, flooring, and various linear material products, Spraying water-based paint or UV curable line materials
Features:
- The electrical appliances used comply with CE standards
- Selectable variable frequency speed regulation
- The rack has undergone heat treatment without deformation
- Total power: 4.75 kW, voltage 380V, three-phase four wire, 50 Hz
Machine Configuration
- Taiwan Pumtai brand pneumatic high flow double diaphragm pump 1 unit (or optional 1/4 pump 1 unit) is equipped with a pressure reducing valve and flow regulating valve, used for the safe feeding of paint that is particulary suitable for the processing very viscous and insoluble paint
- Six 1.0 caliber spray guns from Taiwan Changyuan Precision are used
- 1 set of pre compressed air inlet system and air inlet filtration system
- 1 set of paint mist purification water curtain and exhous system
- The automatic paint spraying part adopts a 100 mm roller for feeding, omm center spacing
- The paint spraying system adopts an automatic spray gun and an electromagnetic valve for independent control, improving the automization effect of the paint and making the paint on the surface of the workpiece mor uniform
- The angle and spraying width of each spray gun are manually adjusted
- The external air is pre compressed and purified to form positive and negative pressure in the enclosed paint room. THe paint room is equipped with a stainless steel paint recycling system and a water curtain waste treatment system
- Air filtration exhaust system using Taiwanese motors
- Induction method: adopting photoelectric and encoder reading methods
- Using high-speed running bearings from Japan’s NSK and TR bearings
Specification Painting Machine
| Model | Painting Machine |
|---|---|
| Max machining width | 10 - 200 mm |
| Machining length | 800 - 3800 mm |
| Machining thickness | 10 - 80 mm |
| Conveying speed | 10 - 25 m/min |
| Conveying power | 0.75 kW |
| Fan power | 4 kW |
| Number of spray guns | 6 |
| Mechanical size | 2300 x 1800 x 2500 mm |
