HL-G100A Edge Roller Coating Machine

Material Processing System

• The motor is a legitimate Taiwanese brand with a reduction ratio of 1/50
• Casting type lifting column, imported NSK bearing assembly is more stable
• Electric lifting control for pressing material, with a motor of 0.75 kW and a ratio of 30 to 1
• Customized thickened aluminum pressure beam with a height of mm
• 3 mm managanese steel sheet is used to support chain block transportation
• Belt conveyor, made of hifh-temperature resistant silicone, with adjustable frequency conversion
• Black thicened light blocking cloth to prevent ultraviolet radiation
• The pressing wheel uses aluminum plates to block light, increasing the service life of the pressing wheel
• Encoder reading, precise digital display of the entire line, with automatic tracking and pushing function, Service life of protective rubber roller

Chamfer Precision Trimming Knife

• Fine chamfering cutter edge chamfering milling, milling chamfers on the upper and lower edges of the sheet metal
• R1-R3 ensures seamless connection between edges and surface paint, with double-sided automatic tracking function
• Perform arc chamfering on the edges of the workpiece; Perform a 0-45 degree adjustment; right Small chamfers below R3 have excellent results

Sanding System

• The disc sand adopts a disassembly type for easy R angle sanding
• Grinding materials for octagonal sand, profiling wheel, thousand leaf wheel, and sisal wheel
• The angle can be adjusted arbitrarily, and various slopes and grooves can be locallu processed
• Equipped with automatic compensation function, compensation is made regularly after grinding wheel loss
• The cover is detachable, making it easy to replace and calibrate the profile wheel
• Equipped with a fast tensioning device, it can quickly replace the sand belt
• The use of casting columns for lifting and lowering facilitates operation
• Important components are processed by milling
• Customized dustproof motor, more durable
• All sanding motors are variable frequency adjustable
• Remove burrs, oil stains, and other surface pollutants from the surface of the white embryo
• Variable frequency adjustable to avoid sand penetration

Paint Roller Coating Machine

• The speed control of the rubber roller is driven by a variable frequency motor
• The rubber roller and steel roller adopts a gear reduction motor, which will not leak oil after long-term use
• Rubber rollers and steel rollers can be equipped with scrapers, which can effectively improve the coating quality
• Hard chrome plated steel rollers are equipped with sensitive roller adjustment devices
• Made of stainless steel paint collection tank and copper conveying oil pipe
• 4 or 6 point diaphragm pump for safe feeding of paint
• Supply paint through solvent resistant oil pipes, equipped with paint discharge pipes
• The paint heating box is equipped with an all round water heating or oil heating box
• Coating roller: made of japanese silicone material with fine grain and strong filling ability when applying paint
• With memory ejection device for easy operation

Drying System

• The electronic power isolation style reduces heat generation and saves 20% electricity
• Gallium lamp and tribute lamp, with a radiation energy of 80 watts/mm and a length of 360 mm
• Aluminum reflective lampshade with good heat dissipation of the lamp tube
• High speed temperature controlled vertical crystal centrifungal fan, used to discharge the heat generated by UV
• Support frame, height adjustable
• Install a UV light emitting display mirror on the front
• General electronic power supplies for gallium lamps and tribute lamps are all under the brand of Heishi (Black Stone) optoelectronics

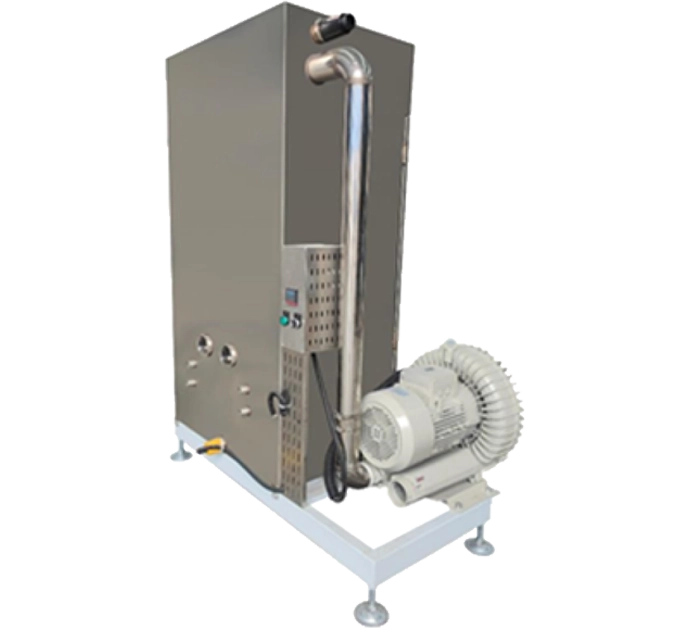

Vacuum System

• Vacuum box: made of 3 mm, 201 material, laser cut and welded
• Vacuum pipeline: foldable for easy replacement of paint and easy cleaning
• The speed control and frequency conversion adopt a Taiwanese brand. The paint belt filter system. The vacuum high-pressure fan is a Taiwanese brand
• The suction system adopts the most advanced rapid disassembly and assembly technology
• The atomization box is connected to the horizontal plane of the feeding machine
• The paint is filtered using a defoamer. Paint storage box: Adopting a constant temperature system with surrounding heating method. 4 or 6 point diaphragm pump for safe feeding of paint.
• Made of stainless steel paint collection tank and copper conveying oil pipe
• Supply paint through olvent resistant oil pipes, equipped with paint discharge pipes and switches
• Paint heating box: equipped with an all round water heating or oil heating box
• Vacuum nozzle: Made of 304 material, easy to replace, with strong painting ability
• Equipped with a memory ejection device for easy operation
• Dual vacuum box independent system, can be controlled independently
• Independent temperature control, convenient for paint temperature control
• Special vacuum fan: chinese NSK bearing, convenient for folding and cleaning
• The u-shaped double layer design prevents paint leakage
• Equipped with leakage switch and ground wire protection to ensure safe operation of the machine
